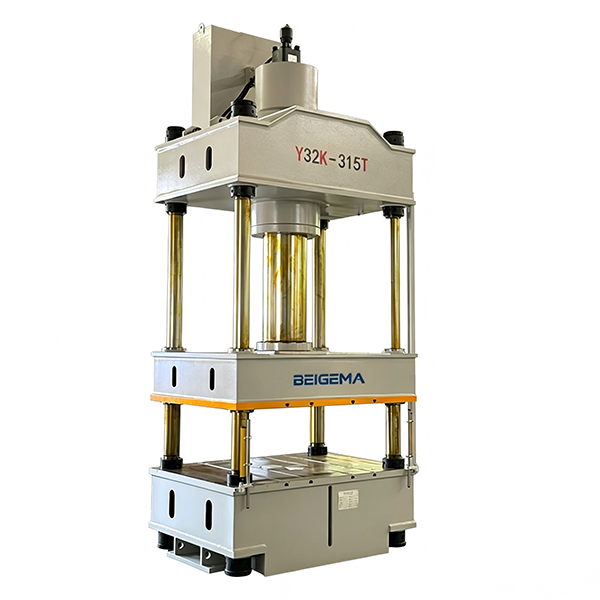

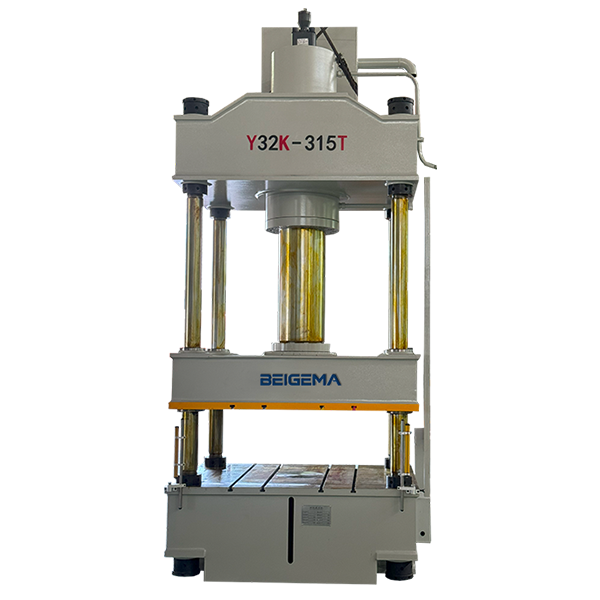

The Y32K-315T four-column hydraulic press features a robust three-beam, four-column structure for exceptional rigidity and stability. With 315 tons of pressing force, it is ideal for metal stamping, deep drawing, forming, and assembly operations. Its precise pressure control ensures consistent part quality, making it a reliable choice for high-volume production.
View all power press machines, or the APA pneumatic punching machine for high-speed punching.
Configuration note: Controller, axes, working range, tolerances and included components must be confirmed in the signed technical quotation for the selected machine.
- Y32K Series
- Controller: DELTA
- Capabilities: Max 2000T
- 3-beam 4-column rigid frame
- Main forged hydraulic cylinder
- Standard hydraulic system with oil pump and valves
- PLC control with pressure and stroke adjustment
- Automatic lubrication system
- Overload protection and emergency stop
- T-slot worktable for easy tool mounting
Standard Configurations
Introduction To Components

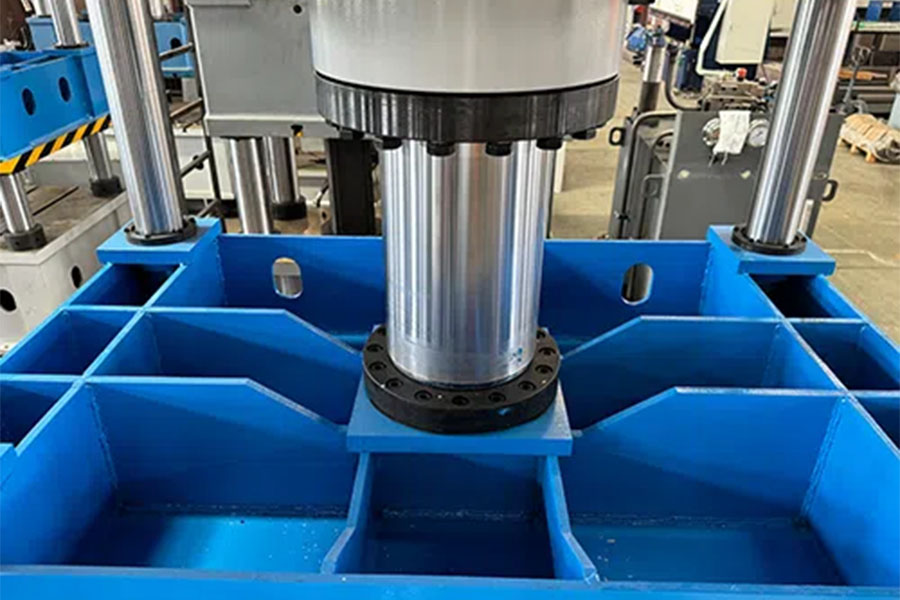

Hydraulic Master Cylinder
Installed on upper beam to drive slide movement. Single/multi-cylinder options, dual-speed design ensures fast travel and precise pressing.

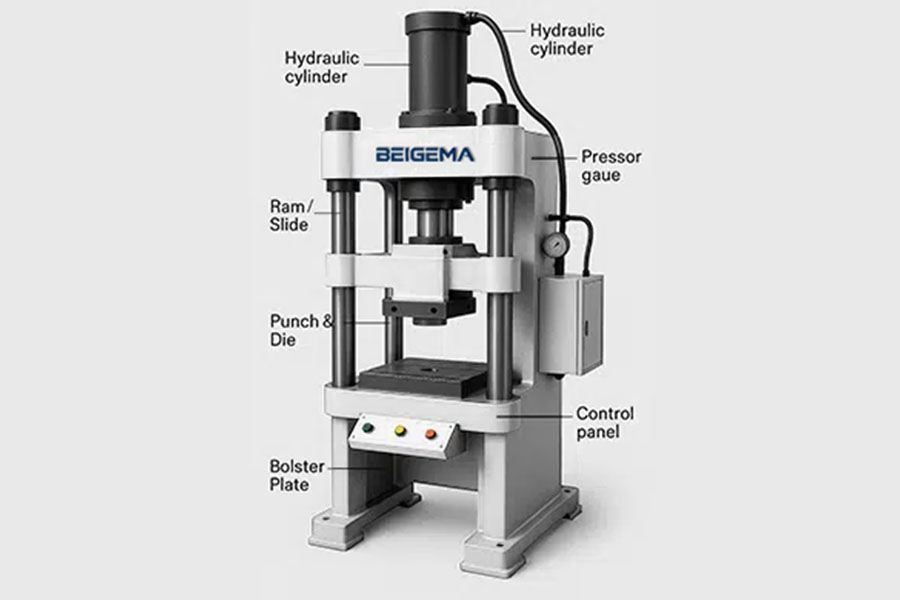

Structure
Ultra-precise motion system delivers micron-level positioning accuracy during processing.
Advanced multi-axis linkage function realizes sophisticated collaborative motion.
Adopts modular structure, featuring great compatibility with most mainstream motors and drivers.
Built with solid construction, it stands up to non-stop heavy industrial operation all year round.
Equipped with real-time monitoring system, supporting touch control and remote troubleshooting to boost working efficiency.
Optimized energy-saving design cuts down power consumption without compromising overall performance.

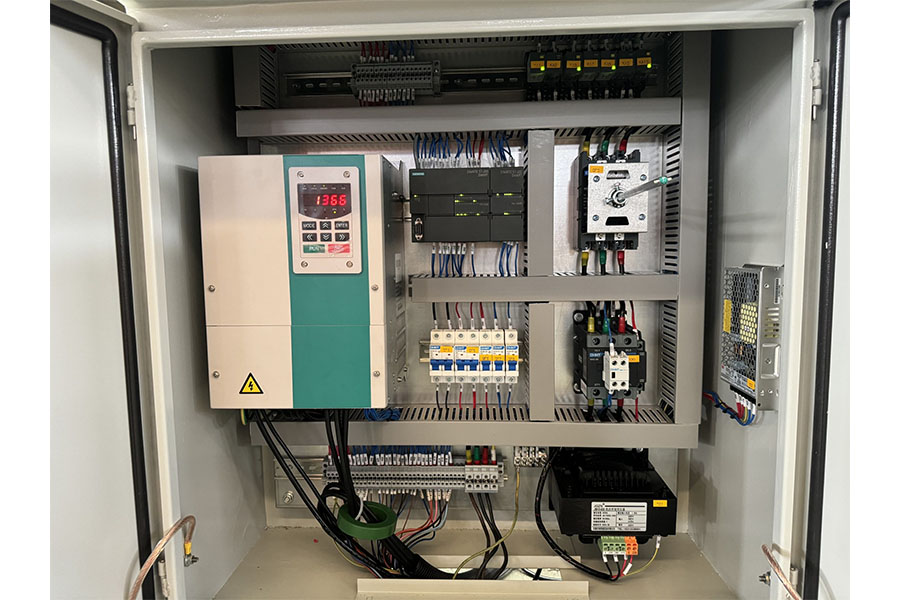

Electric System
This industrial-grade electrical control system adopts Schneider power distribution cabinets. It delivers stable, smart and power-saving power management. Featuring comprehensive protection modules and real-time energy monitoring, it boosts power efficiency and guards against overload and short-circuit faults.This industrial-grade electrical control system adopts Schneider power distribution cabinets. It delivers stable, smart and power-saving power management. Featuring comprehensive protection modules and real-time energy monitoring, it boosts power efficiency and guards against overload and short-circuit faults.

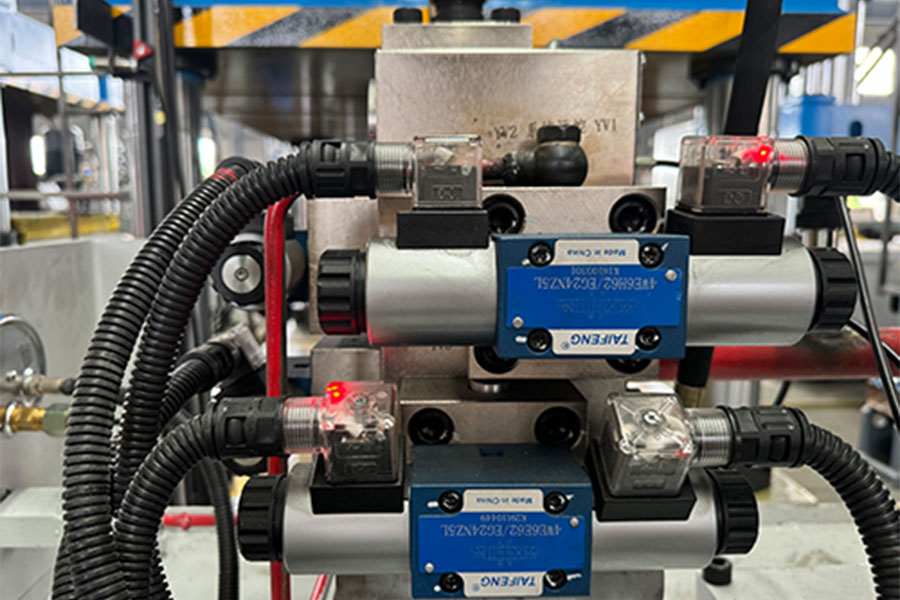

Hydraulic Valve
The hydraulic unit supplies high-pressure oil ranging from 21 to 31.5MPa. It is equipped with axial piston pumps reaching up to 95% efficiency, or low-noise vane pumps with noise level below 75dB. The integrated valve group combines pressure relief, flow control and solenoid directional valves, enabling multi-step adjustment. It keeps force deviation within ±2% and controls operating speed from 0.1mm/s to 500mm/s, as well as changing movement directions flexibly.
Y32K Series Four Column Hydraulic Press Machine
| Name | Y32K-63 | Y32K-100 | Y32K-200 | Y32K-315 | Y32K-400 | Y32K-500 | Y32K-630 | Y32K-800 | Y32K-1000 |
|---|---|---|---|---|---|---|---|---|---|
| Nominal force (kN) | 630 | 1000 | 2000 | 3150 | 3150 | 5000 | 6300 | 8000 | 1000 |
| Ejection force (kN) | 100 | 250 | 400 | 630 | 630 | 1000 | 1000 | 1000 | 1250 |
| Return force (kN) | 125 | 320 | 450 | 600 | 600 | 1000 | 1000 | 1200 | 1250 |
| Slide stroke (mm) | 500 | 600 | 700 | 800 | 800 | 900 | 900 | 1000 | 1000 |
| Ejection stroke (mm) | 160 | 200 | 250 | 300 | 300 | 355 | 355 | 350 | 350 |
| Maximum daylight (mm) | 800 | 900 | 1200 | 1250 | 1250 | 1500 | 1500 | 1800 | 1800 |
| Slide speed - Rapid approach (mm/s) | 100 | 100 | 100 | 100 | 100 | 120 | 80 | 120 | 120 |
| Slide speed - Working (mm/s) | 9 | 10 | 12 | 12 | 12 | 12 | 10 | 10 | 10 |
| Slide speed - Return (mm/s) | 50 | 50 | 50 | 60 | 60 | 80 | 50 | 100 | 100 |
| Ejection speed - Ejecting (mm/s) | 50 | 80 | 60 | 60 | 60 | 80 | 80 | 65 | 65 |
| Ejection speed - Retracting (mm/s) | 100 | 160 | 120 | 100 | 100 | 200 | 200 | 140 | 140 |
| Table dimensions - Left-to-right (mm) | 520 | 720 | 900 | 1120 | 1120 | 1400 | 1600 | 2200 | 2500 |
| Table dimensions - Front-to-back (mm) | 490 | 580 | 900 | 1120 | 1120 | 1400 | 1600 | 1600 | 1800 |
| Column spacing - Left-to-right (mm) | 650 | 800 | 1140 | 1140 | 1140 | 1700 | 1950 | 2600 | 2900 |
| Column spacing - Front-to-back (mm) | 350 | 430 | 660 | 900 | 900 | 1120 | 1200 | 1200 | 1350 |
| Overall dimensions - Left-to-right (mm) | 900 | 1100 | 1380 | 1160 | 1160 | 3900 | 5200 | 6600 | 4650 |
| Overall dimensions - Front-to-back (mm) | 500 | 800 | 900 | 1660 | 1660 | 3600 | 4600 | 2600 | 2650 |
| Overall dimensions - Height above ground (mm) | 2400 | 2600 | 2725 | 4295 | 4295 | 5220 | 6000 | 7200 | 6570 |
| Motor power (kW) | 7.5 | 11 | 15 | 22 | 22 | 44 | 60 | 90 | 90 |
Application Area
Stainless Steel Cookware
