Reliable And Excellent Choice For Press Brake Cnc Control Updates BEIGEMA® provide different levels of bending machine upgrade systems for our customers.
BEIGEMA Series CNC Control System For Press Brakes
BEIGEMA CNC Control System

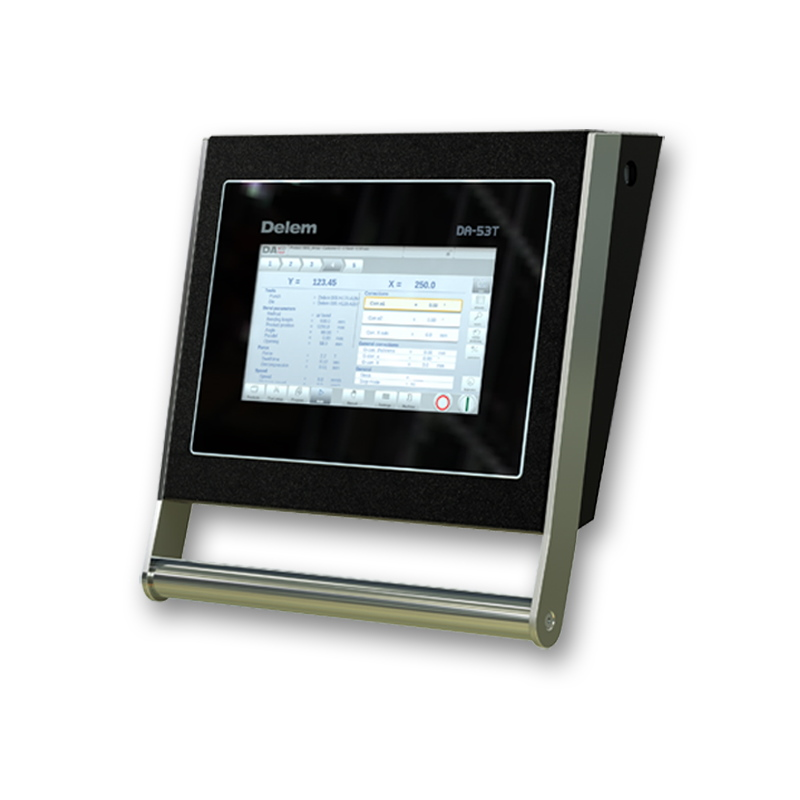

BEIGEMA DA53T Touch Color CNC System
The DA-53T touch CNC control provides a modern compact and versatile solution for a wide range of press brake applications without compromising machine functionality.
- 10.1" high resolution colour TFT
- “Hot-key” touch navigation
- Up to 4 axes (Y1,Y2 + 2 aux. axes)
- Tool / material / product library
- Advanced Y-axis control algorithms for closed-loop as well as open-loop valves.
- CNC Crowning control
- USB memory stick interfacing
- Profile-53TL offline software
BEIGEMA CNC Control System

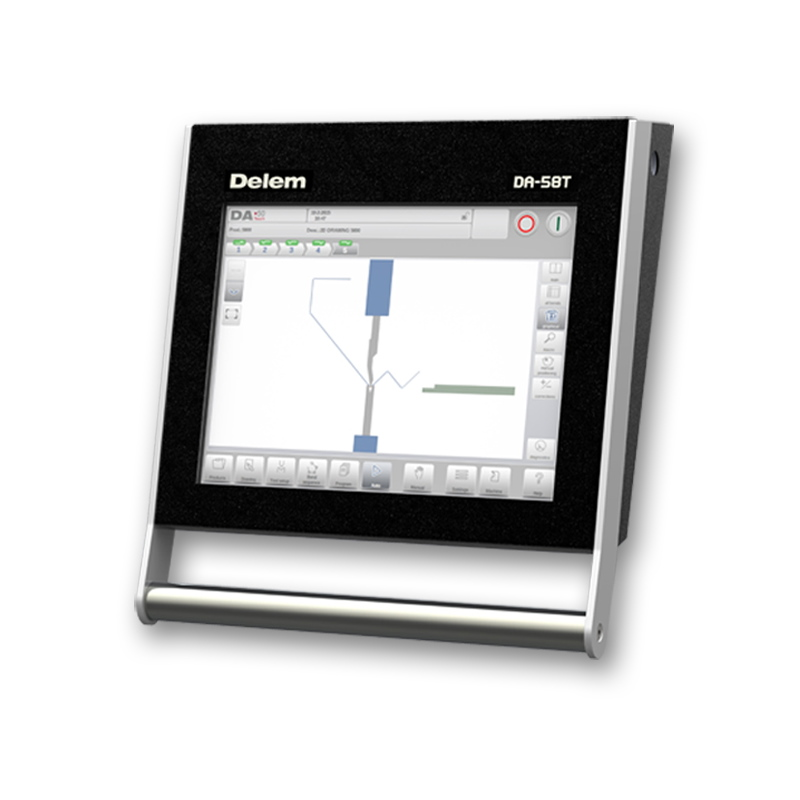

BEIGEMA DA58T Color 2D graphical CNC System
The DA-58T touch CNC control provides a modern compact and versatile solution for powerful economic press brake applications.
- 15" high resolution colour TFT
- 2D graphical touch screen programming
- Up to 4 axes (Y1,Y2 + 2 aux. axes)
- Bend sequence calculation
- Advanced Y-axis control algorithms for closed-loop as well as open-loop valves.
- CNC Crowning control
- USB, peripheral interfacing
- Profile-58TL offline software
BEIGEMA CNC Control System

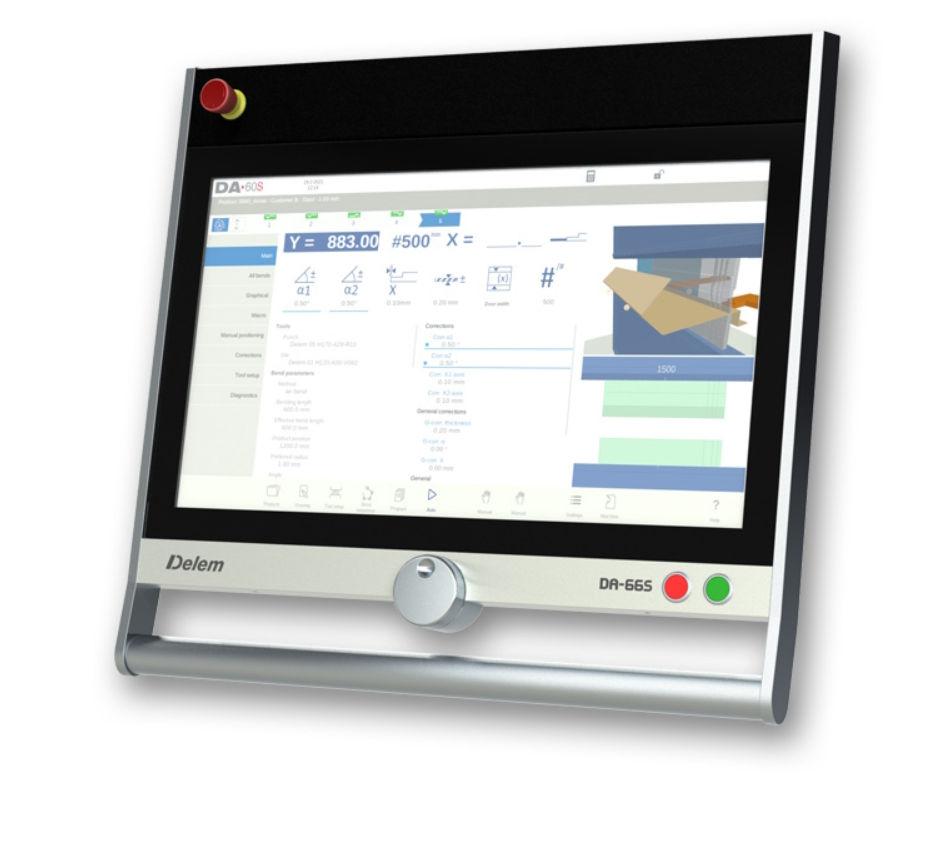

DA66S
The DA-66S Touch Controller adopts built-in real-time Windows OS to deliver outstanding operational stability. It supports smooth restart even after sudden power cut-off
- 2D graphical touch screen programming mode
- 3D machine representation, in simulation and production
- 24" high resolution color TFT
- Delem Modusys compatibility (module scalability and adaptivity)
- USB, peripheral interfacing
- User specific application support within the control's multitasking environment
- Sensor bending & correction interface
- Profile-S2D offline software
BEIGEMA CNC Control System

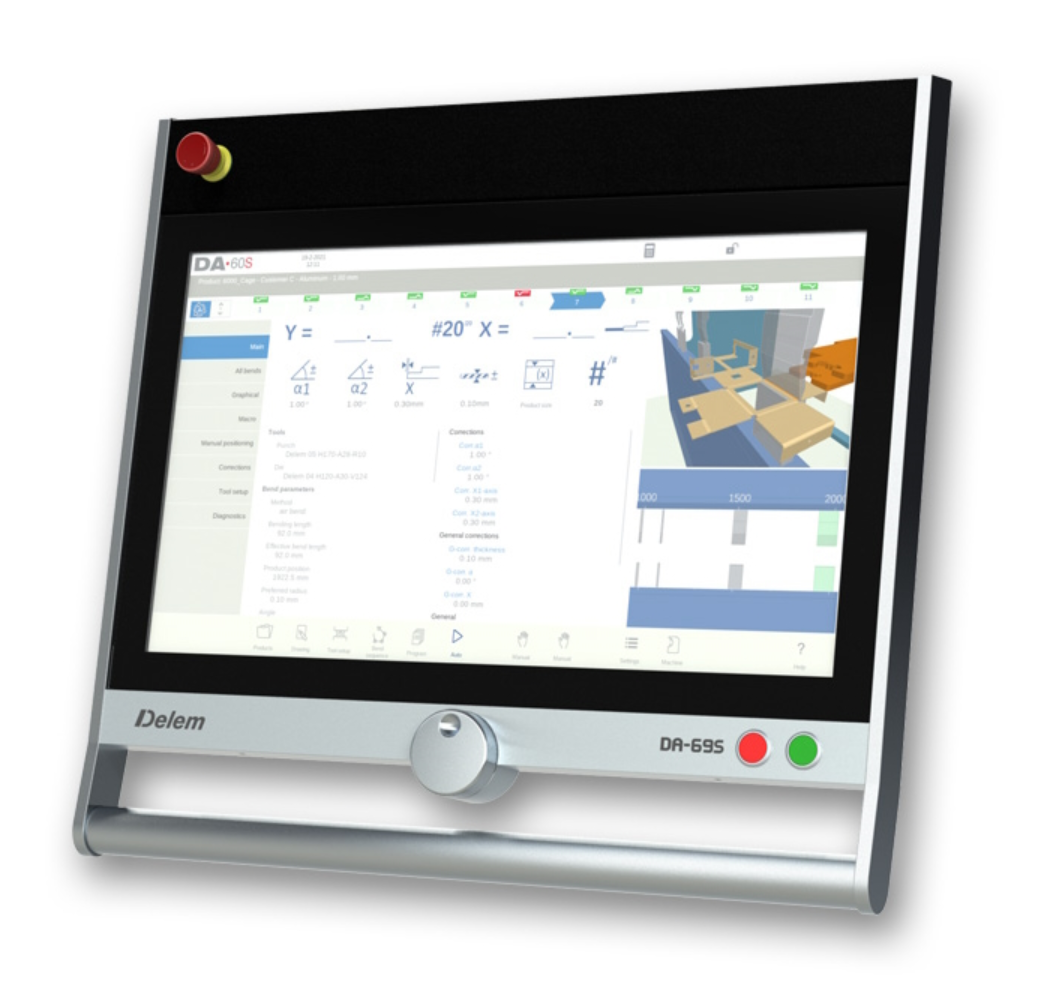

DA69S
The DELEM DA-69S supports 2D & 3D programming with auto bend sequence calculation and collision check. Complete 3D machine setup for multiple tool stations provides reliable feedback on product forming possibility and operation workflow.
- 3D and 2D graphical touch screen programming mode
- 3D visualization, including 3D machine representation, in simulation and production
- 24" high resolution color TFT
- Delem Modusys compatibility (module scalability and adaptivity)
- USB, peripheral interfacing
- User specific application support within the control's multitasking environment
- Sensor bending & correction interface
- Profile-S3D offline software
Cybelec CNC Control System
Cybelec CNC Control System

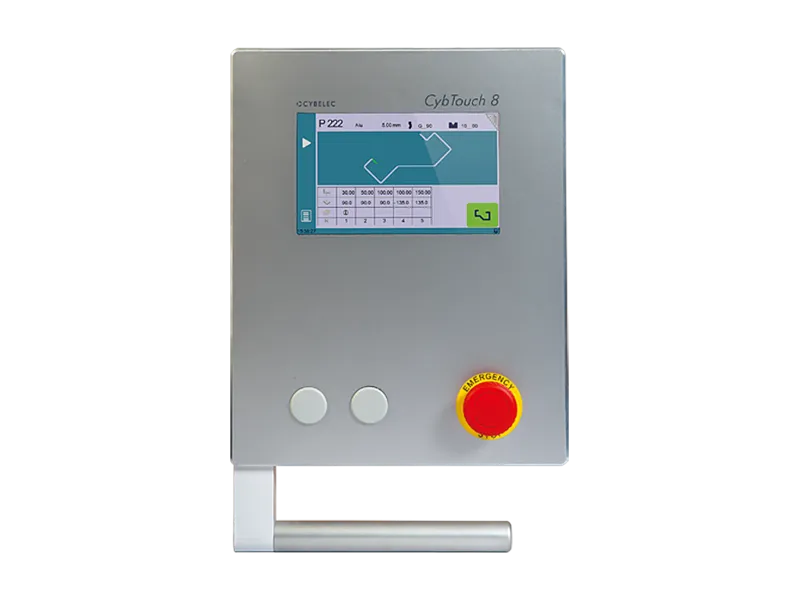

CYBELEC CybTouch 8 PS 2D graphic CNC System
CybTouch 8 PS is intended specifically for synchronized press-brakes.As part of the CybTouch range, it has an intuitive and vivid color touch screen and a high integration of functions.
- 7” color graphic CRT screen
- 2D graphic profile creation with manual sequencing
- Up to 4 axes (Y1,Y2 + 2-axes)
- Bend allowance calculation.
- Pressure – crowning calculation.
- CNC Crowning control
- Angle and back gauge correction.
- Delivered with PC1200 offline software.
Cybelec CNC Control System

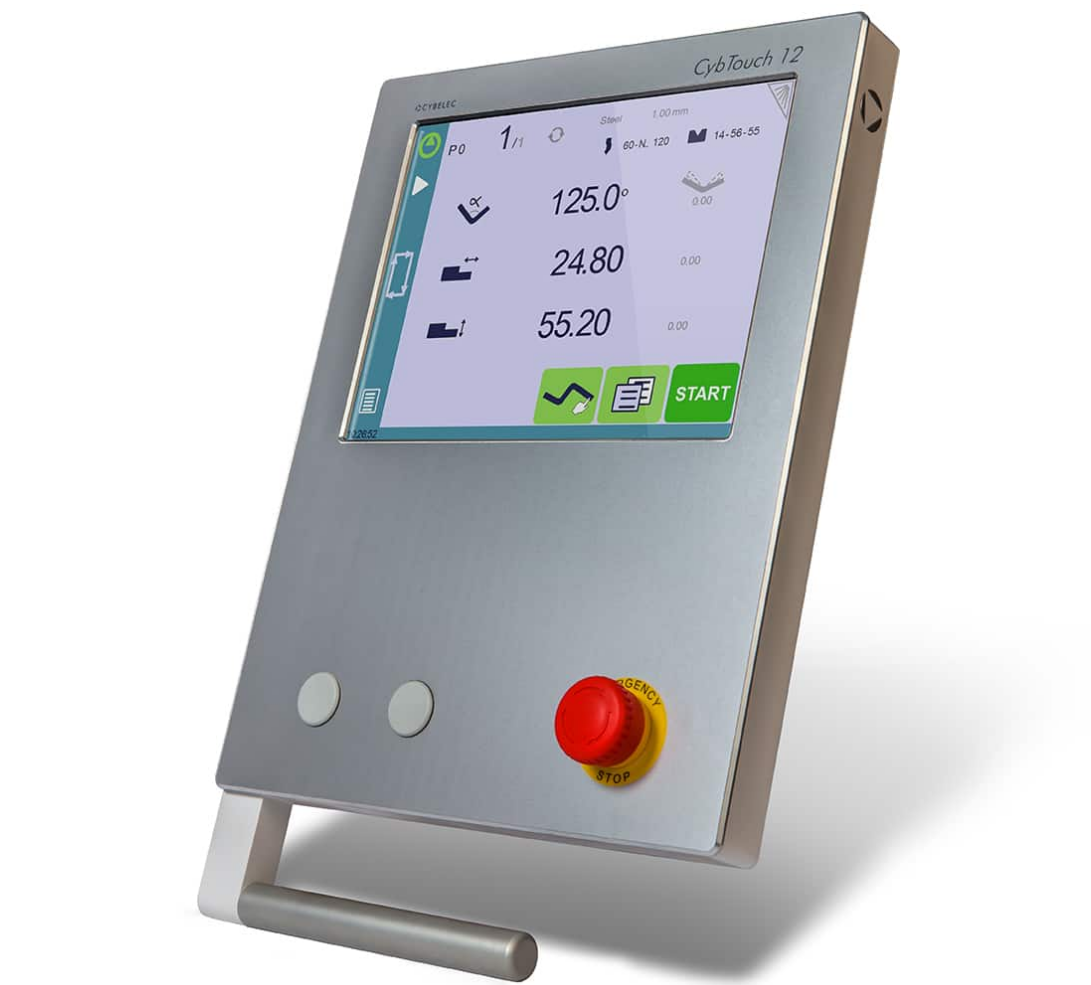

CT12
Following the consistent design of the entire CybTouch numerical control product line, the CybTouch 12 PS adopts an intuitive touch operation panel with highly centralized integrated functions.
- 12” color graphic with fully touch screen
- Touch 2D graphic part creation with manual sequencing
- Up to 4 axes (Y1,Y2 , X, R-axes)
- Bend allowance calculation.
- Pressure – crowning calculation.
- Modulable tools for each part or bend.
- Angle and back gauge correction.
- Delivered with PC-ModEva offline software
Cybelec CNC Control System

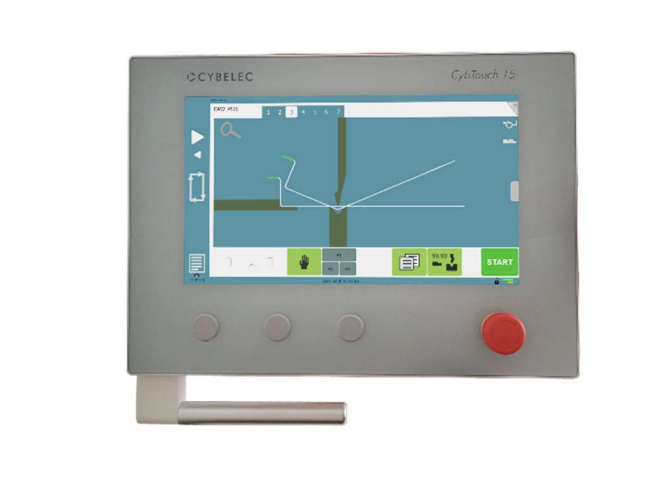

CT15
Tailored for entry & mid-range CNC press brakes, the CybTouch 15 PS is a 2D numerical control unit. Retaining the compact cabinet design of the mature CybTouch lineup, it features an enlarged touchscreen and brand-new horizontal styling.
- 15” color graphic with fully touch screen
- Touch 2D graphical profile drawing and precise 2D program creation
- Up to 6 axes (Y1,Y2 , X, R ,Z1 , Z2-axes)
- Automatic bending sequence calculation
- Tandem management.
- Modulable tools for each part or bend.
- Angle and back gauge correction.
- VisiTouch 2D or VisiTouch MX offline software.
ESA CNC Control System
ESA CNC Control System

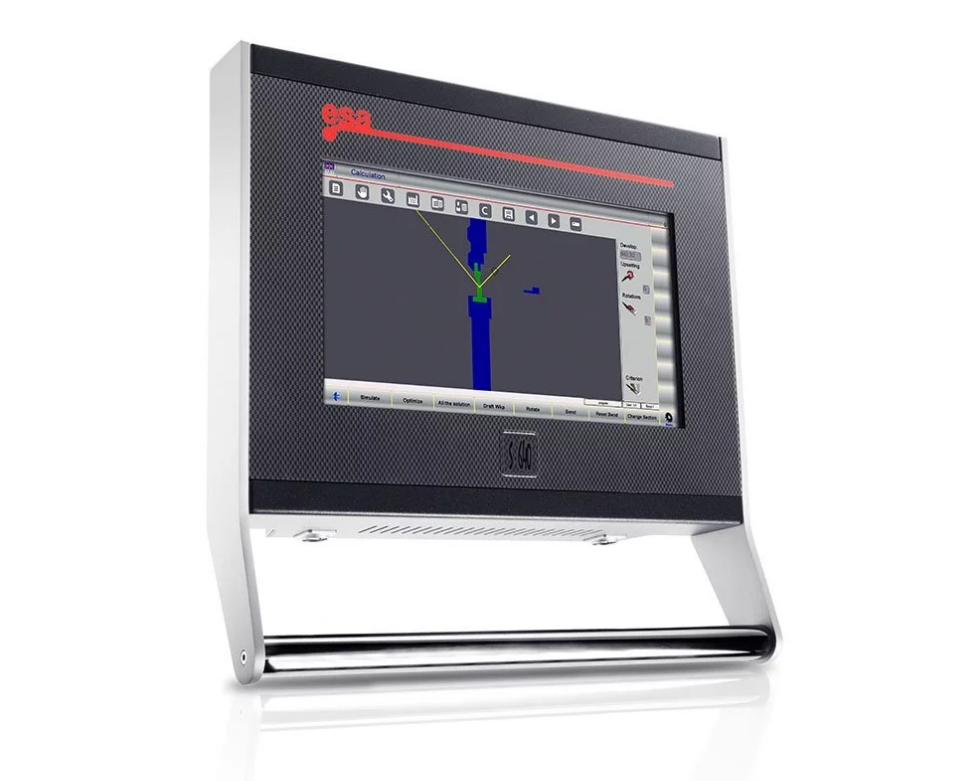

ESA S630 2D Graphical CNC System
The most powerful in its class 10’ touch screen with powerful graphic All the performances of a high-level cnc in an economical and user-friendly controller.
- 10 inch LCD touch screen (Resistive)
- Touch 2D graphic part creation with manual sequence
- Stander to 4 axis(Y1Y2,X, R)
- Automatic bending force, crowning calculation.
- Modulable tools for each part or bend.
- Direct angle correction, also for the crowning.
- Proprotional and pressure valve Amplify intergrated.
- Free off-line PC simulation software.
- Tandem machine management(option)
- Modbus TCP interface for SCADA or MES(option)
ESA CNC Control System

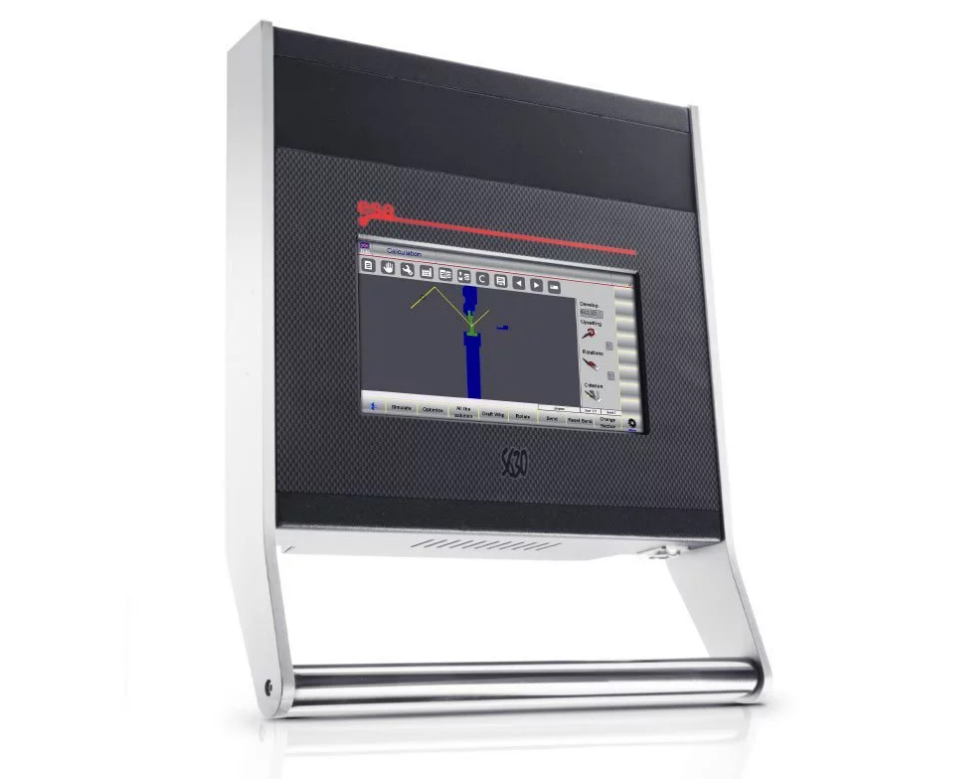

ESA S640 2D Graphical CNC System
Top-level performances for machines up to six axes with automatic bending sequence calculations and Material Data Base for predictive compensation are available (as options) to reduce the wastage of material.
- 15 inch LCD touch screen (Resistive)
- Touch 2D graphic part creation with automatic sequence
- Stander to 4 axis, can up to 6 axis max.
- Automatic bending force, crowning calculation.
- Modulable tools for each part or bend.
- Direct angle correction, also for the crowning.
- Proprotional and pressure valve Amplify intergrated.
- Free off-line PC simulation software.
- Tandem machine management(option, can up to 4 machines)
- Modbus TCP interface for SCADA or MES(option)
ESA CNC Control System

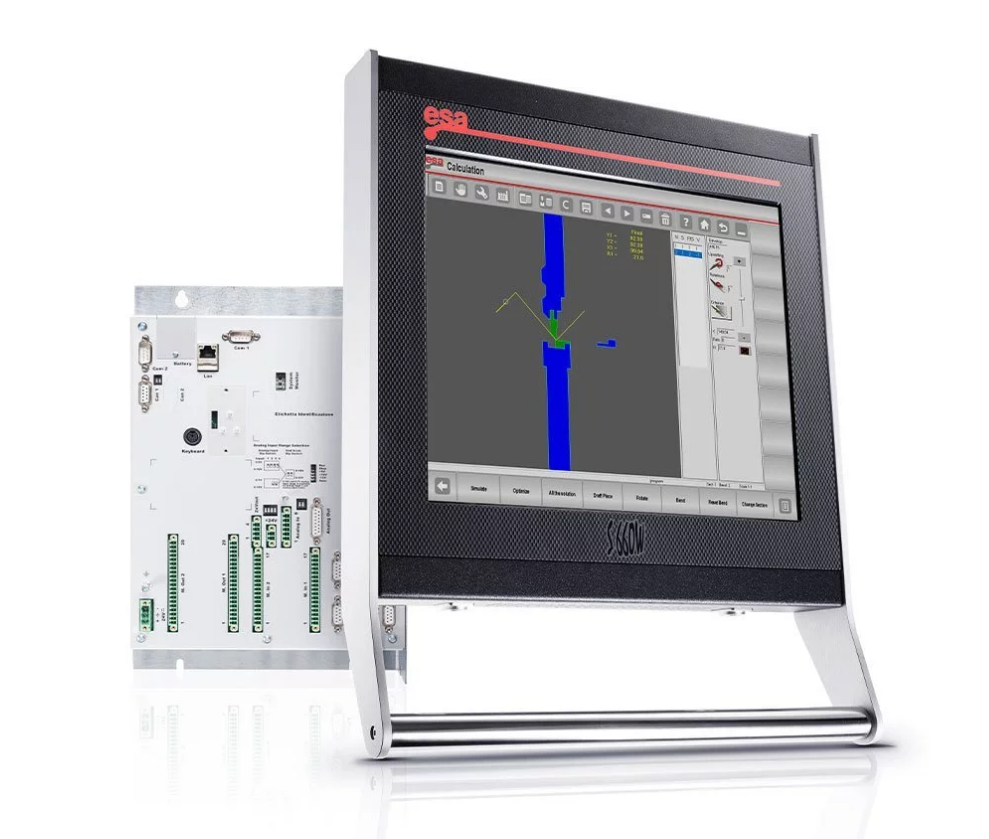

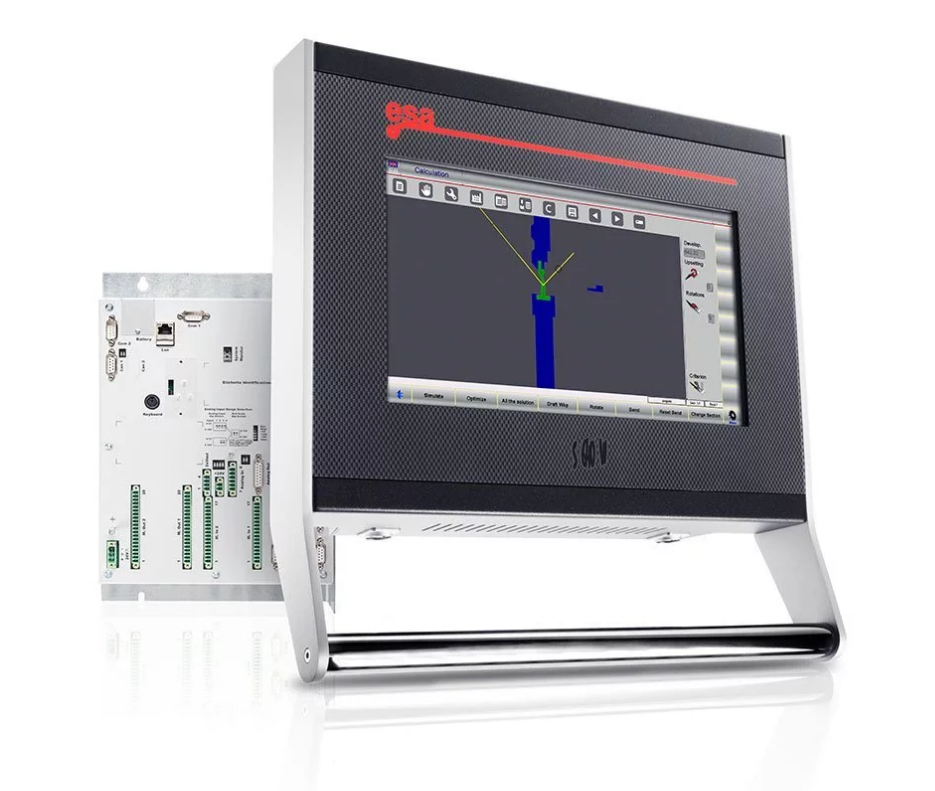

ESA S650W 2D Graphical CNC System
No limit in both performances and flexibility.
The powerful built-in Pc allows having on the machine a real 3D cad cam (metallix, radan, esa)
Finger-tip work piece design.
Direct import of tools shapes (.dxf files) and management of tool library.
Tool and die holders management.
Angle measurement and correction with all existing devices is available.
- 15 inch LCD touch screen (Resistive)
- DXF tools import(options)
- Touch 2D graphic part creation with automatic sequence
- Stander to 4 axis, can up to 32 axis max.
- Automatic bending force, crowning calculation.
- Modulable tools for each part or bend.
- Free off-line PC simulation software.
- Tandem machine management(option, can up to 4 machines)
- Modbus TCP interface for SCADA or MES(option)
- DataM or Iris-Plus angle messurement management(options).
- EsaBend-3D software(options)
- Metalix, Radan, AutoPol 3d viewer(options)
ESA CNC Control System
ESA S660W CNC System
A totally renewed interface, specifically designed for multi touch screen, is available as an alternative to the well-known Esa interface used on S650W.
Make the best of any 3D cad cam you would like to install in the CNC.
Finger-tip work piece design.
Direct import of tools shapes (.dxf files) and management of tool library.
Tool and die holders’ management.
- 19 inch LCD touch screen (Capacitive)
- DXF tools import(options)
- Touch 2D graphic part creation with automatic sequence
- Stander to 4 axis, can up to 156 axis max.
- Automatic bending force, crowning calculation.
- Modulable tools for each part or bend.
- Direct angle correction, also for the crowning.
- Free off-line PC simulation software.
- Tandem machine management(option, can up to 4 machines)
- Modbus TCP interface for SCADA or MES(option)
- DataM or Iris-Plus angle messurement management(options).
- EsaBend-3D software(options)
- Metalix, Radan, AutoPol 3d viewer(options)
ESA CNC Control System

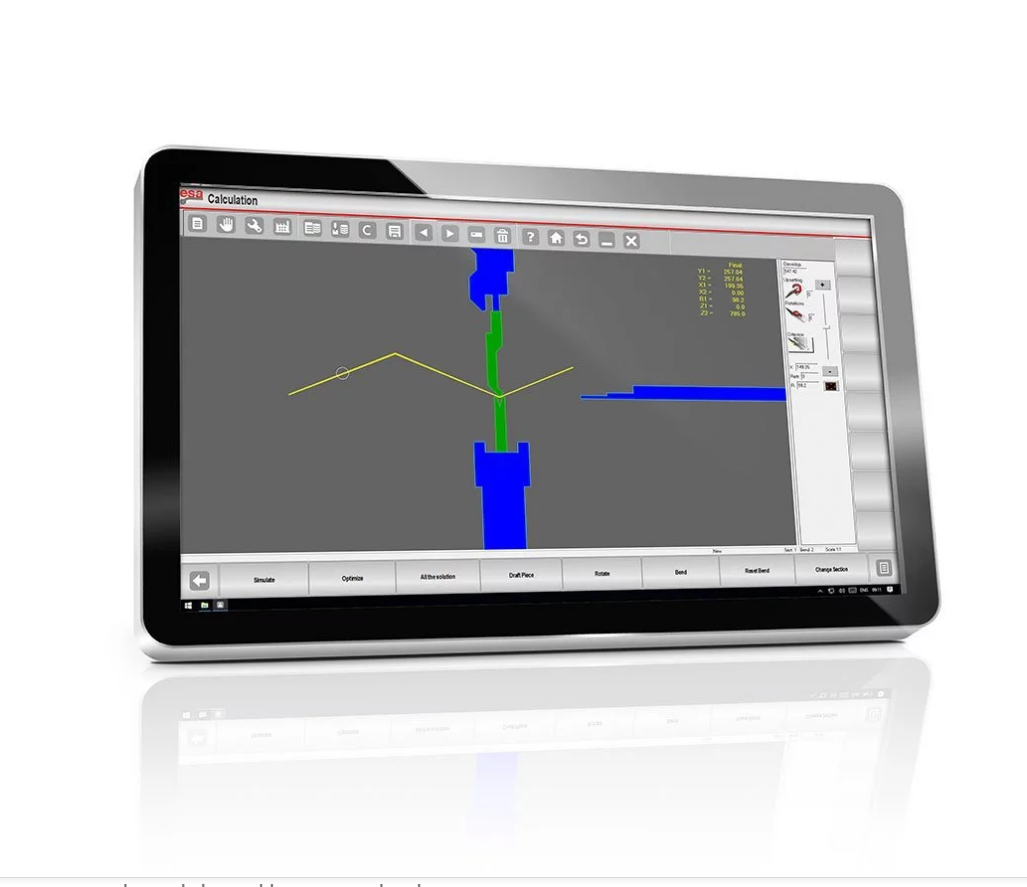

ESA S675W CNC System
A totally renewed interface, specifically designed for multi touch screen, is available as an alternative to the well-known Esa interface used on S650W.
Make the best of any 3D cad cam you would like to install in the CNC.
Finger-tip work piece design.
Direct import of tools shapes (.dxf files) and management of tool library.
Tool and die holders’ management.
Angle measurement and correction with all existing devices is available.
- 21 inch LCD touch screen (Capacitive)
- DXF tools import(options)
- Touch 2D graphic part creation with automatic sequence
- Stander to 4 axis, can up to 156 axis max.
- Automatic bending force, crowning calculation.
- Modulable tools for each part or bend.
- Direct angle correction, also for the crowning.
- Free off-line PC simulation software.
- Bend database(options)
- Modbus TCP interface for SCADA or MES(option)
- DataM or Iris-Plus angle messurement management(options).
- EsaBend-3D software(options)
- Metalix, Radan, AutoPol 3d viewer(options)
