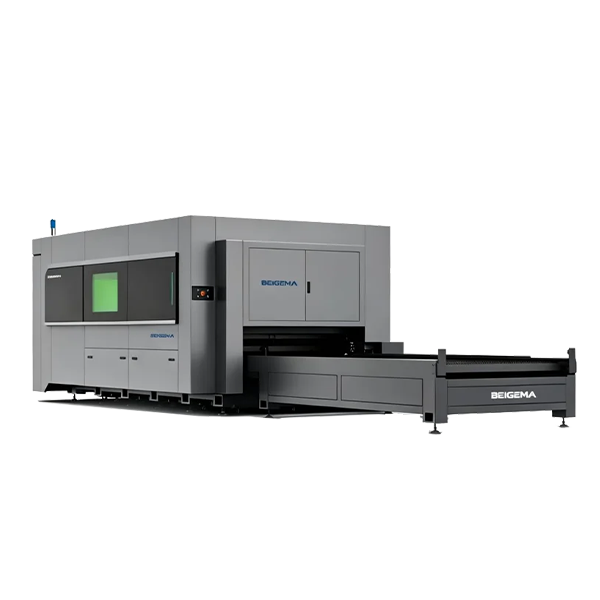

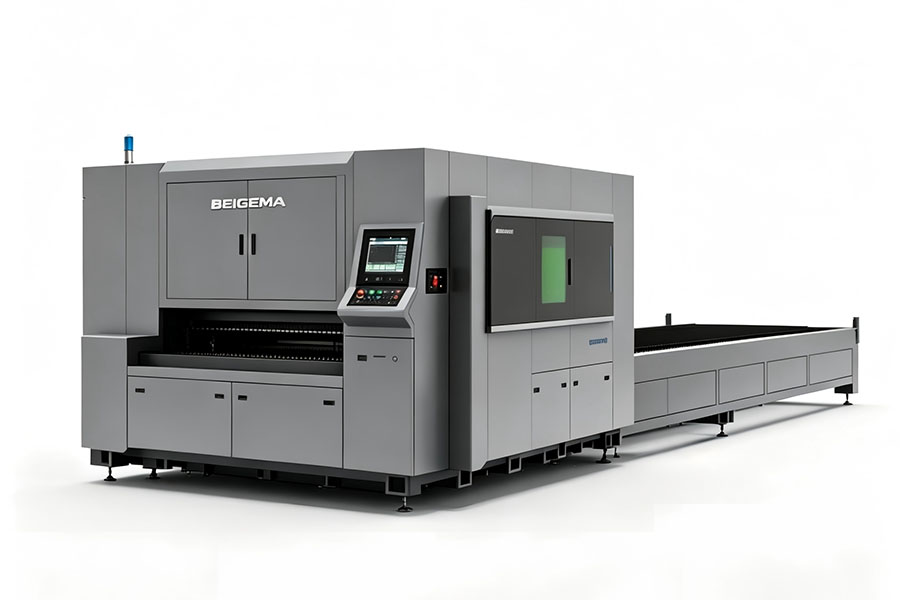

BM Series Full Covered Fiber Laser Cutting Machine With Exchange table 1000W to 10000W
With heavy-duty extended bed and full safety protection delivers zero radiation leakage and stable performance. Equipped with a double exchange table, it boosts production efficiency by 50%+. The reinforced welded bed ensures ±0.02mm precision. Powered by the CypCut system, it supports auto nesting, edge finding, and multi-format import. With power options from 1000W to 30000W, it cuts carbon steel, stainless steel, aluminum, and more for industrial manufacturing.
- Model: BM Series
- Cutting Head: Raytools
- Cutting Range: 1000w to 30000w
Introduction To Components

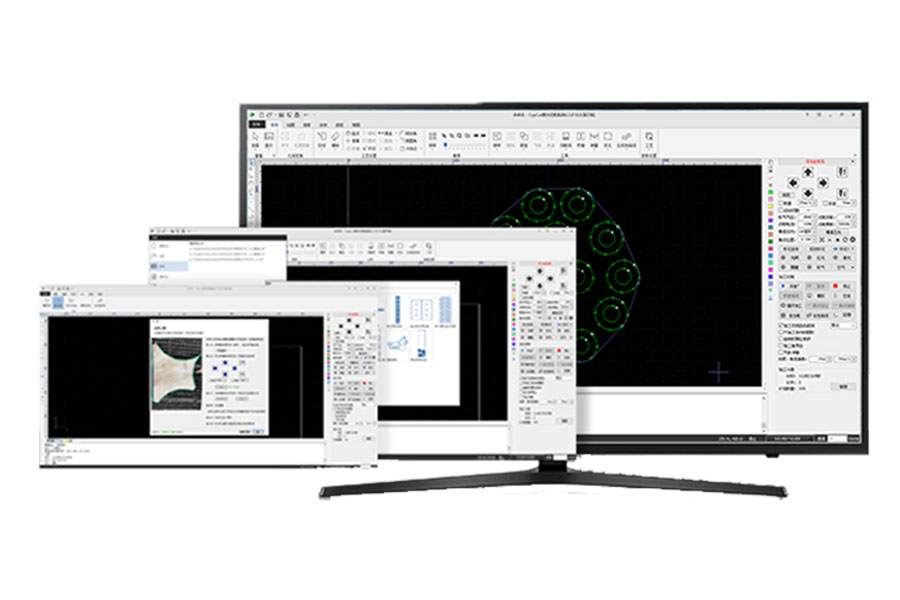

Cypcut System
With its “high speed and high precision + intelligent process + simplified operation and maintenance + full power compatibility + high cost performance of domestic products”, FSCUT has become the mainstream first choice for laser cutting control systems in China, and is especially suitable for sheet metal and thick plate processing enterprises that pursue a balance between efficiency, quality and cost.

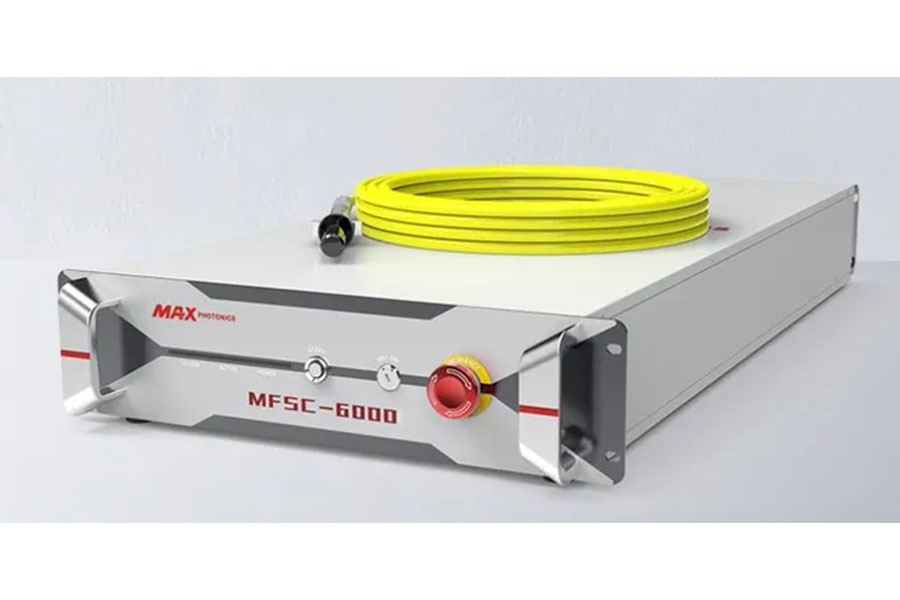

MAX Laser Source
MAX laser source pairs perfectly with FSCUT control system, boasting stable beam quality, high energy efficiency and strong anti-reflection performance. It delivers fast cutting speed, smooth incision and reliable continuous operation, ideal for various metal sheet processing work.

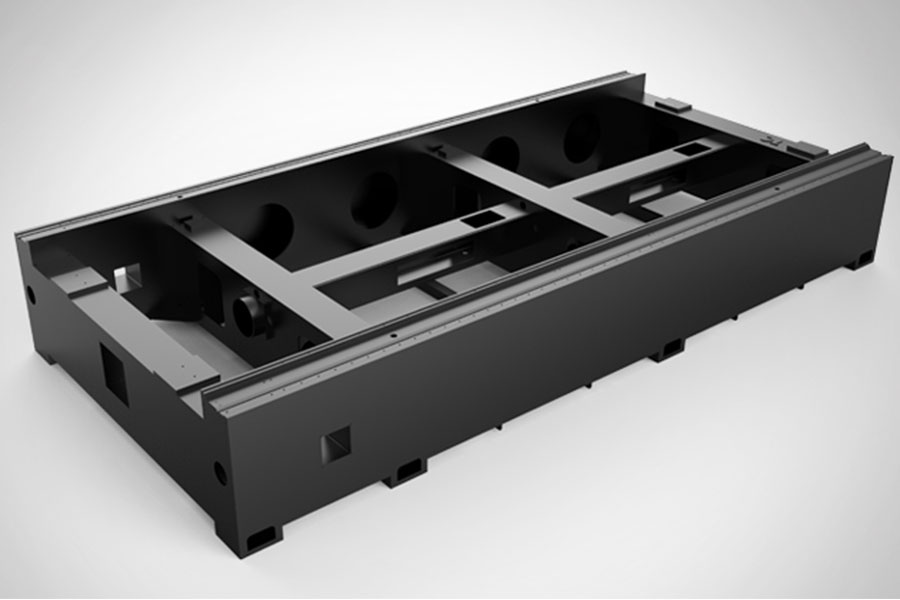

Machine Structure
Adopting robust frame construction with thick steel plate welding craftsmanship, the machine body features outstanding anti-distortion capability. Equipped with honeycomb supportive structure, it effectively distributes base stress. This design enables steady laser head movement, boosts cutting precision remarkably, and ensures durable long-term operation. Custom modular bed dimensions are available to meet personalized demands.
Adopting robust frame construction with thick steel plate welding craftsmanship, the machine body features outstanding anti-distortion capability. Equipped with honeycomb supportive structure, it effectively distributes base stress. This design enables steady laser head movement, boosts cutting precision remarkably, and ensures durable long-term operation. Custom modular bed dimensions are available to meet personalized demands.

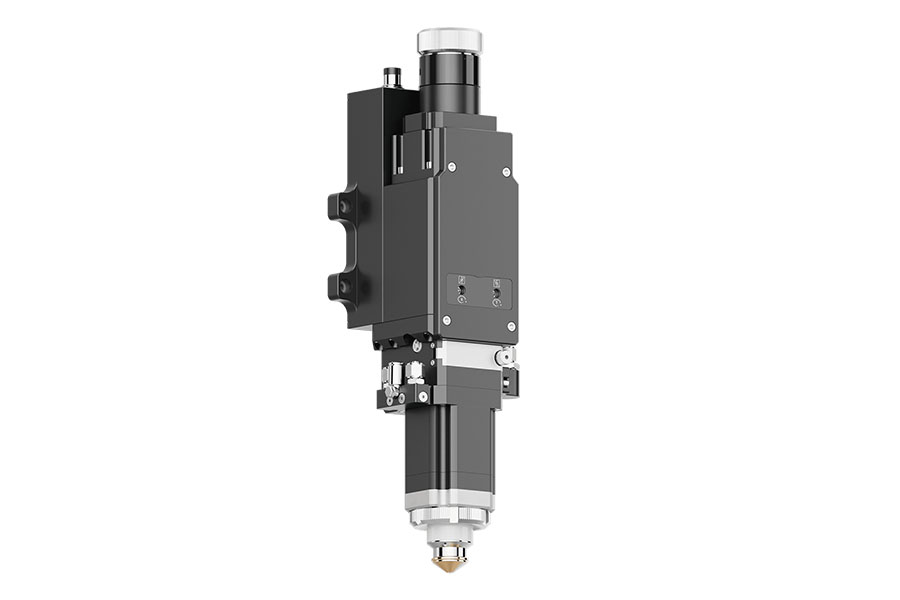

BLT Laser Cutting Head
Intelligent process management includes automatic piercing, automatic re-cutting and dynamic pressure detection.
Multi-layer safety protection covers collision avoidance, blast resistance and scattered light monitoring functions.
Real-time surveillance keeps track of lens temperature and internal operational surroundings all the time.
Dustproof structure simplifies assembly and commissioning, lowering daily maintenance workload.

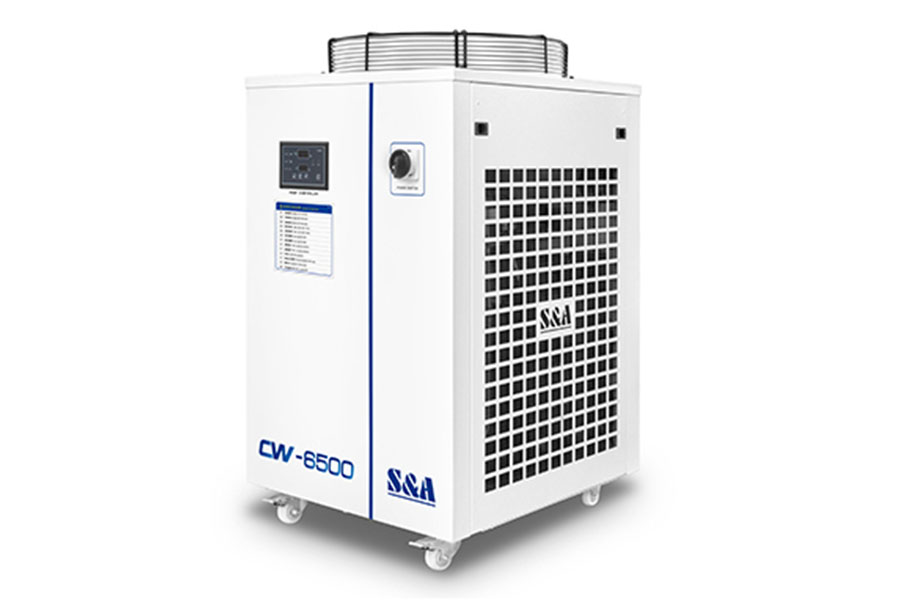

S&A Water Chiller
Efficient water cooling plays a crucial role in maintaining stable laser performance by preventing overheating and ensuring consistent output quality. It also significantly extends the lifespan of laser components by minimizing thermal stress and material fatigue. Additionally, water cooling reduces operational noise compared to air-cooling systems, creating a quieter and more reliable working environment.
Efficient water cooling plays a crucial role in maintaining stable laser performance by preventing overheating and ensuring consistent output quality. It also significantly extends the lifespan of laser components by minimizing thermal stress and material fatigue. Additionally, water cooling reduces operational noise compared to air-cooling systems, creating a quieter and more reliable working environment.

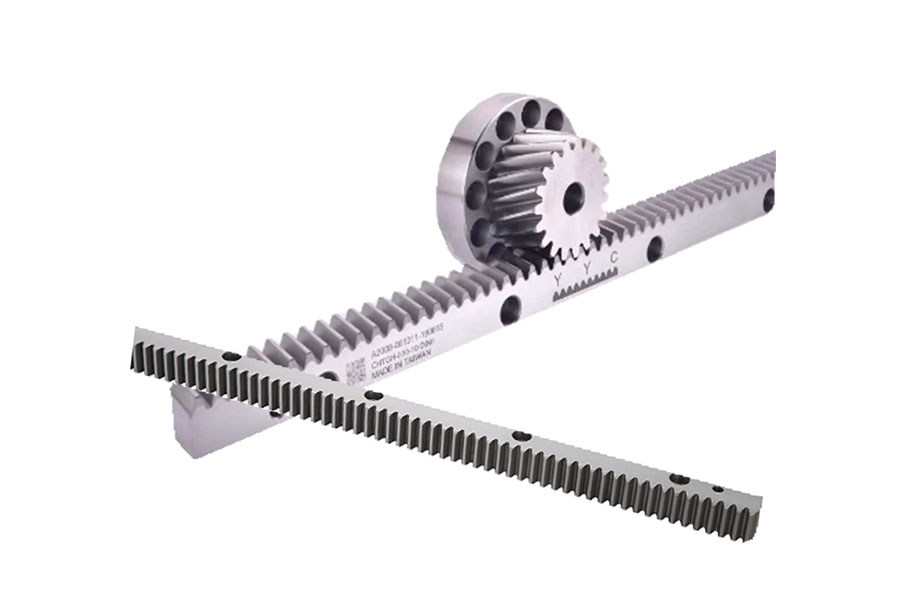

YYC Gear Rack
YYC rack and pinion enables precise linear transmission with great load capacity. It maintains steady and accurate positioning in harsh working scenarios. Solid build grants outstanding wear resistance and prolonged service lifespan. It works stably in diverse industrial settings, perfectly suited for precision equipment and automated facilities.
| Model | RAS-3015T / RAS-4015T / RAS-4020T / RAS-6015T / RAS-6020T metal laser cutting machine |
|---|---|
| Cutting Area | 3050*1525mm / 4050*1525mm / 4050*2020mm / 6050*1525mm / 6050*2020mm |
| Laser Power (kw) | 1kw, 2kw, 3kw, 4kw |
| Maximum Speed (m/min) | 80 |
| Maximum acceleration (g) | 0.8 |
| X/Y Axis positioning accuracy (mm/m) | ±0.01 |
| X/Y Axis repeated positioning accuracy (mm) | ±0.01 |
| Material | 1KW | 1.5KW | 2KW | 3KW | 4KW | 6KW | 8kw | 12000W |
|---|---|---|---|---|---|---|---|---|
| Carbon Steel (mm) | 0.4-12 | 0.4-16 | 0.4-18 | 0.4-20 | 0.4-25 | 0.4-25 | 0.4-25 | 0.4-45 |
| Stainless Steel (mm) | 0.4-5 | 0.4-6 | 0.4-8 | 0.4-12 | 0.4-12 | 0.4-20 | 0.4-28 | 0.4-40 |
| Aluminum (mm) | 0.4-3 | 0.4-5 | 0.4-6 | 0.4-8 | 0.4-12 | 0.4-16 | 0.4-18 | 0.4-22 |
| Brass (mm) | 0.4-3 | 0.4-5 | 0.4-6 | 0.4-6 | 0.4-8 | 0.4-14 | 0.4-16 | 0.4-20 |
