CNC Bending Follower Supporter For Press Brake Machine

Designed For Precision And Efficiency in Heavy Plate Bending

The automatic material support for bending machines is an ideal alternative to manual feeding during bending.

It is an automatic, following material support device. When customers need to process large sheet metal, this support will rotate backward synchronously with the bending angle, moving in real time to steadily support the sheet metal throughout the process. It prevents sagging, collapsing, and twisting when bending long plates, thin plates, and stainless steel sheets; moreover, it moves synchronously with the machine’s motion, automatically adapting to the bending curvature without manual adjustment. This significantly improves the efficiency and productivity of sheet metal bending operations.

Floor Type(Follower)

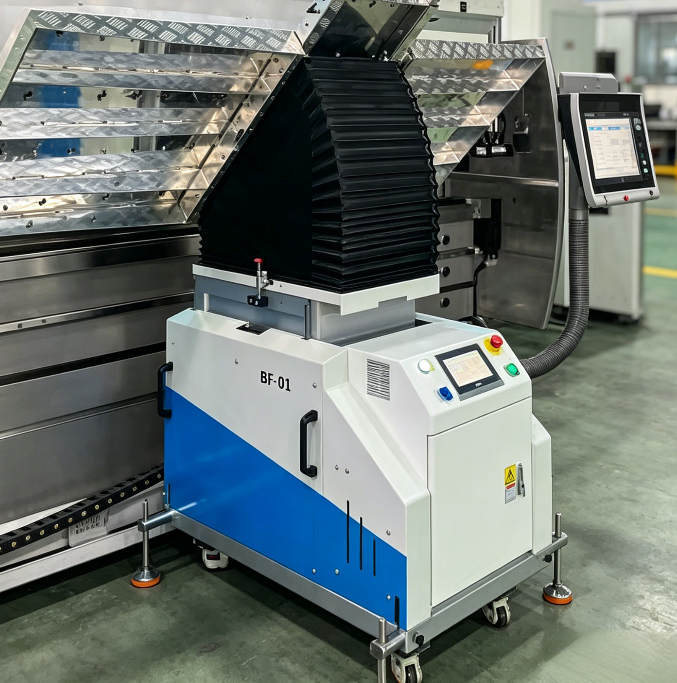

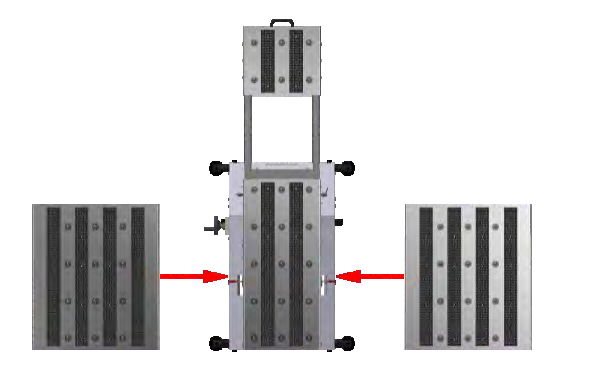

Floor Type BF-01 Bending Follower
Max Load: 180kg

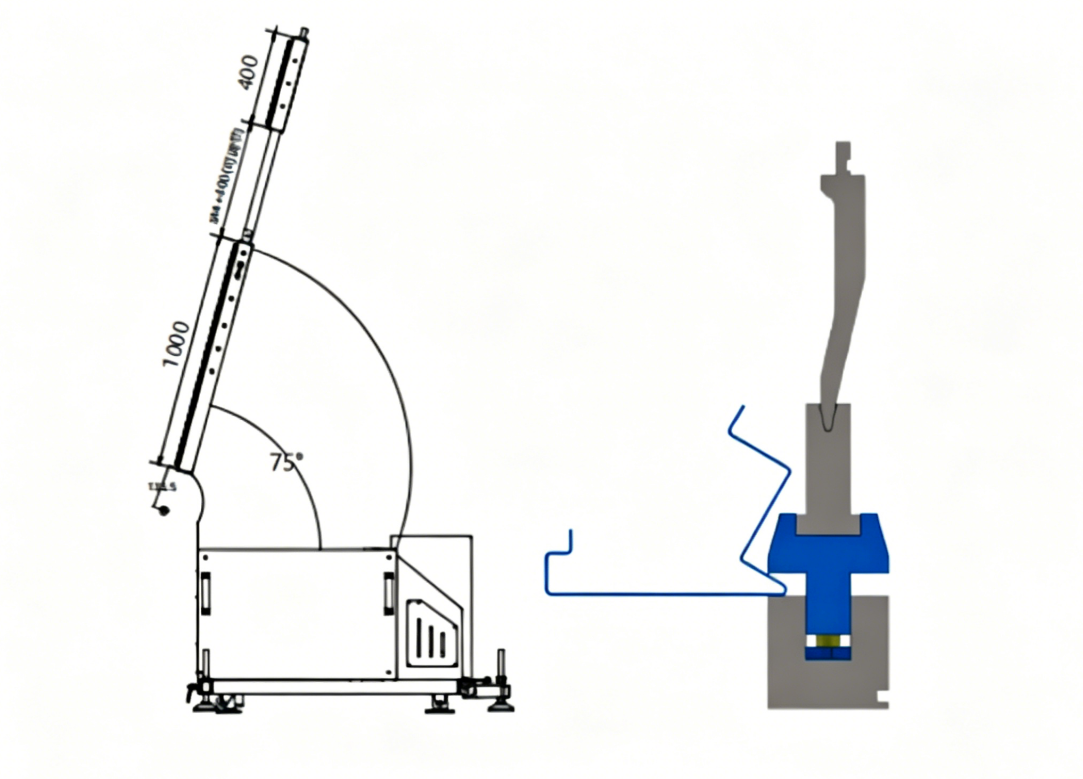

Max Angle: 75°
R axis stroke: 140 mm
Main motor power: 2kw Working speed: Hold:34°/s Return:34°/S

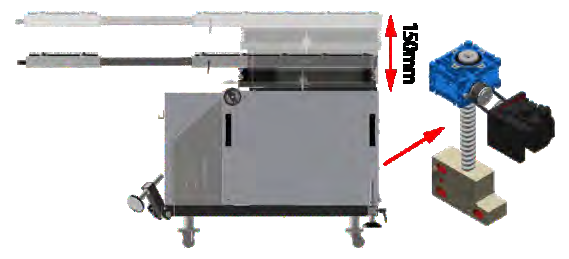

Slider Stroke: Up and down:150 mm Horizontal:40 mm
Dimensions(L*W*H):L: 1120 mm,W:860 mm, H: 880+150 mm
Weight: 380kG

Different Types And Sizes

BF Series Rotary Workbench Specifications

Model	Max load	Workbench	Main motor power	Maximum angle	Working speed	Slider Stroke	Dimensions (LWH)	Machine weight

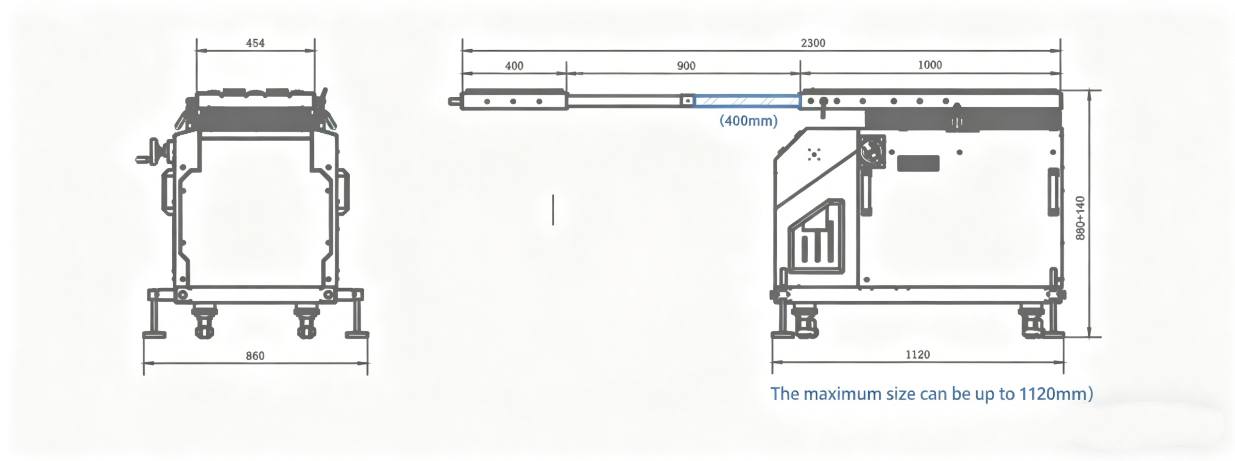

BF-01	180KG	L: 1900+400mm W: 454mm	2KW	75°	Lift:34°/S Return:34°/S	up down:140 mm level:40 mm	L: 1120mm W: 860mm H: 880+140mm	380KG

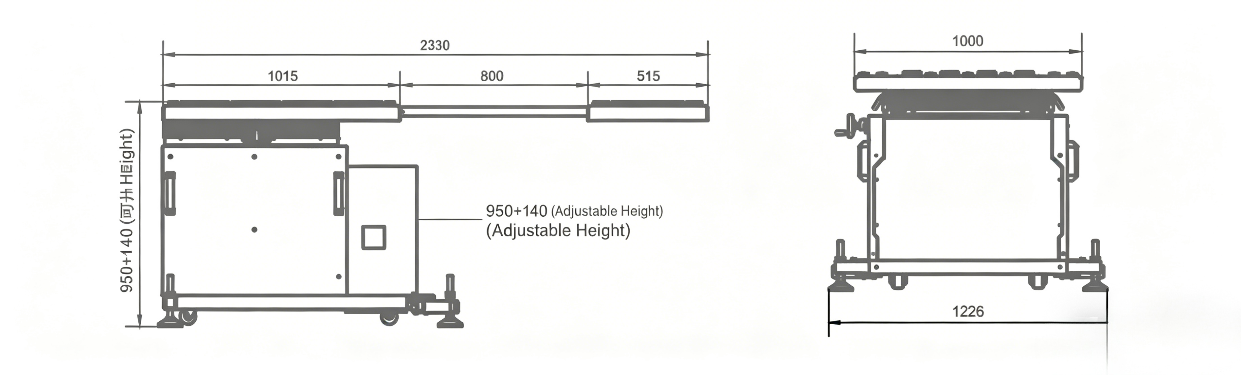

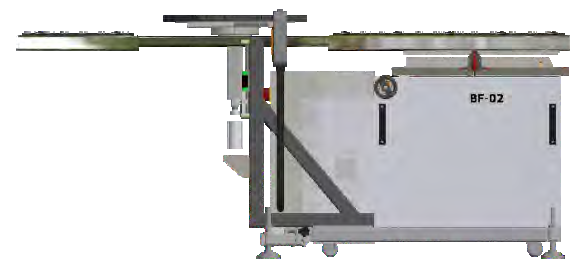

BF-02	380KG	L: 2330mm W: 1000mm	2KW	60°	Lift:20°/S Return:20°/S	up down:140 mm level:40 mm	L: 2330mm W: 1226mm H: 958+140mm	620KG
BF-03	130KG	L: 2330mm W: 1000mm	2KW	60°	Lift:20°/S Return:20°/S	up down:140 mm level:40 mm	L: 2330mm W: 1226mm H: 958mm	580KG

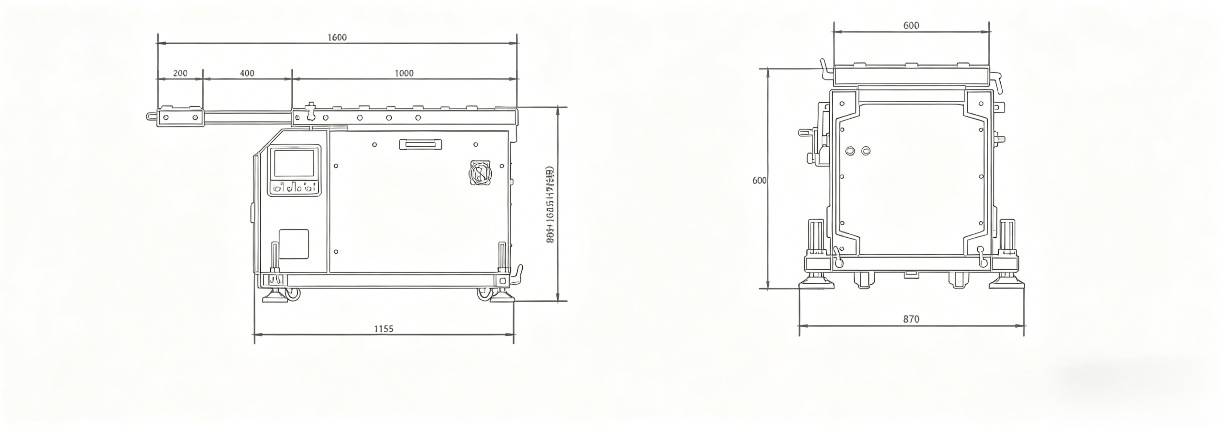

BF-06	120KG	L: 1200+400mm W: 600mm	2KW	60°	Lift:34°/S Return:34°/S	up down:150 mm level:40 mm	L: 1150mm W: 870mm H: 885+150mm	340KG
BF-01-R75	180KG	L: 1900+400mm W: 462mm	2KW	75°	Lift:34°/S Return:34°/S	up down:140 mm level:40 mm	L: 1900+400mm W: 977mm H: 890+140mm	400KG
