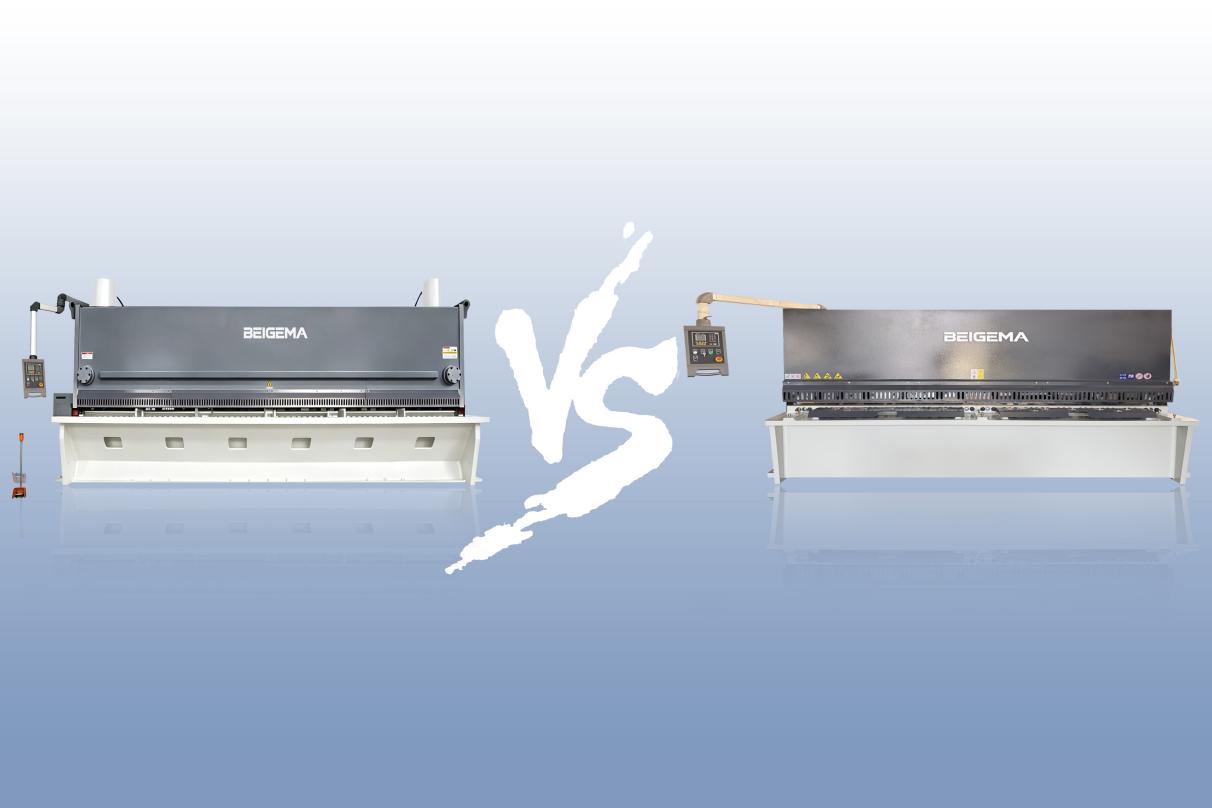

How to choose between a guillotine shearing machine and a swing beam shearing machine? This is one of the questions I hear most often during the sales process. The machines can look similar and both perform straight sheet-metal cuts. Short answer: neither design is automatically better. A swing beam shear is often shortlisted for straightforward, cost-conscious cutting, while a guillotine shear is often shortlisted when the buyer needs a wider adjustment range or more control over changing jobs. The correct choice must still be checked against the exact model, material strength, thickness, working width, tolerance and production volume.
Quick Comparison: Seven Differences That Matter
| Buyer question | Guillotine shear | Swing beam shear |
|---|---|---|
| Upper-blade path | Blade carrier is guided in a largely linear cutting path; verify the actual guide design. | Blade carrier pivots around a fixed axis and follows an arc. |
| Rake angle | Variable rake is available on many models, but not a universal feature. | Often fixed on conventional models; confirm the quoted machine. |
| Blade clearance | May be manual, motorized or automatically calculated, depending on configuration. | Frequently mechanical/manual on standard models; automation can be model-specific. |
| Blade profile | Four usable edges are available on some rectangular blade systems. | Two usable edges are common on some diamond-profile systems. |
| Controls | NC or CNC options may control backgauge, stroke, gap, rake and job sequences. | Simple or advanced controls are both possible; architecture does not dictate the controller. |
| Cut result | Can offer more adjustment for mixed work, but setup, tooling and machine condition still control quality. | Can produce reliable general-fabrication cuts when capacity, clearance and blade condition are correct. |
| Purchase fit | Consider for variable work, demanding cut control or heavier-duty configurations. | Consider for standard repetitive cutting and a simpler, cost-conscious package. |
How the Two Shearing Mechanisms Work
How Does a Guillotine Shear Work?
A guillotine shear uses the reciprocating motion of an upper blade together with a fixed lower blade to separate metal sheet. During operation, the hydraulic system drives the blade carrier through the cutting stroke. The carrier is guided in a largely linear path, although the exact geometry depends on the machine design. Many guillotine models also offer adjustable rake angle and blade clearance. These settings help the operator balance cutting load, edge condition and sheet distortion; they do not by themselves guarantee a stated tolerance.
How Does a Swing Beam Shear Work?
The working principle of a swing beam shearing machine is based on the rotary movement of the upper blade. Driven by hydraulic cylinders, the blade carrier swings around a fixed shaft and creates a scissor-like action with the lower blade. This architecture is widely used for general sheet-metal work and can support a comparatively straightforward machine package. Because the blade follows an arc, the buyer should check the quoted machine’s clearance method, fixed or adjustable rake, usable blade edges and documented cutting performance instead of assuming that every swing beam shear behaves the same way.

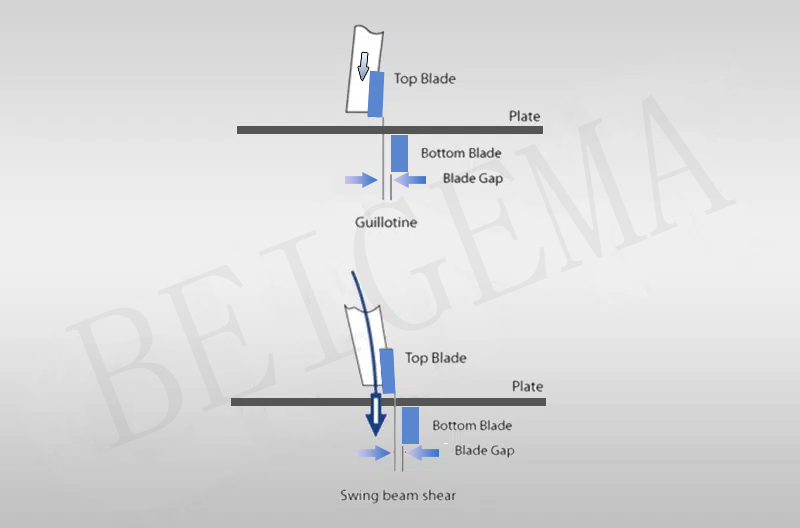

1. Blade Path and Rake-Angle Adjustment
The blade path is the true structural difference. A conventional swing beam machine pivots, while a guillotine blade carrier is guided through the cutting stroke. Rake angle is a separate specification. Variable rake is common on many guillotine designs and can help reduce distortion on narrow strips or distribute load for thicker material, but the available range must come from the selected model’s technical sheet. Do not write that every guillotine has CNC rake control or that no swing beam model can offer a different configuration.

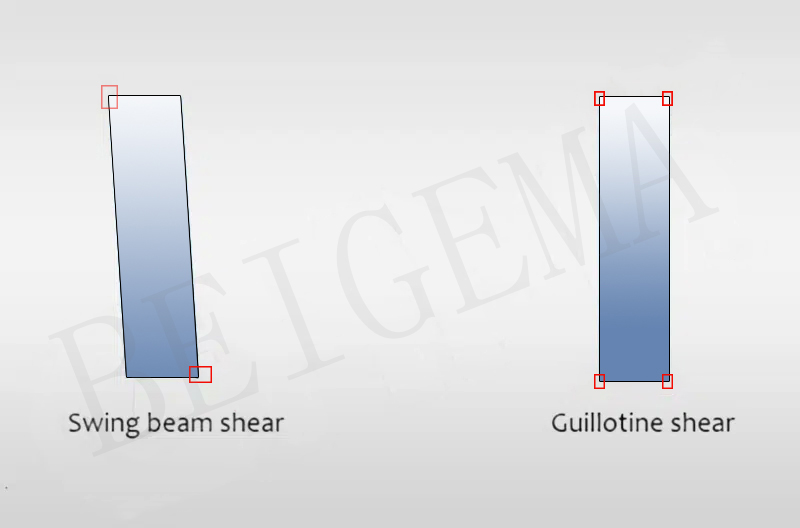

2. Blade Profile and Number of Usable Edges
Blade life and replacement cost matter in any shearing-machine purchase. However, the number of usable edges belongs to the blade profile and holder design—not to the machine name alone. Some guillotine shears use rectangular blades with four usable edges, while some swing beam shears use diamond-profile blades with two. Ask the supplier for the blade drawing, material grade, dimensions, number of usable edges, resharpening allowance, price and lead time. Avoid describing a two-edge blade as inherently defective; it is a design and maintenance trade-off.
3. Blade-Clearance Adjustment

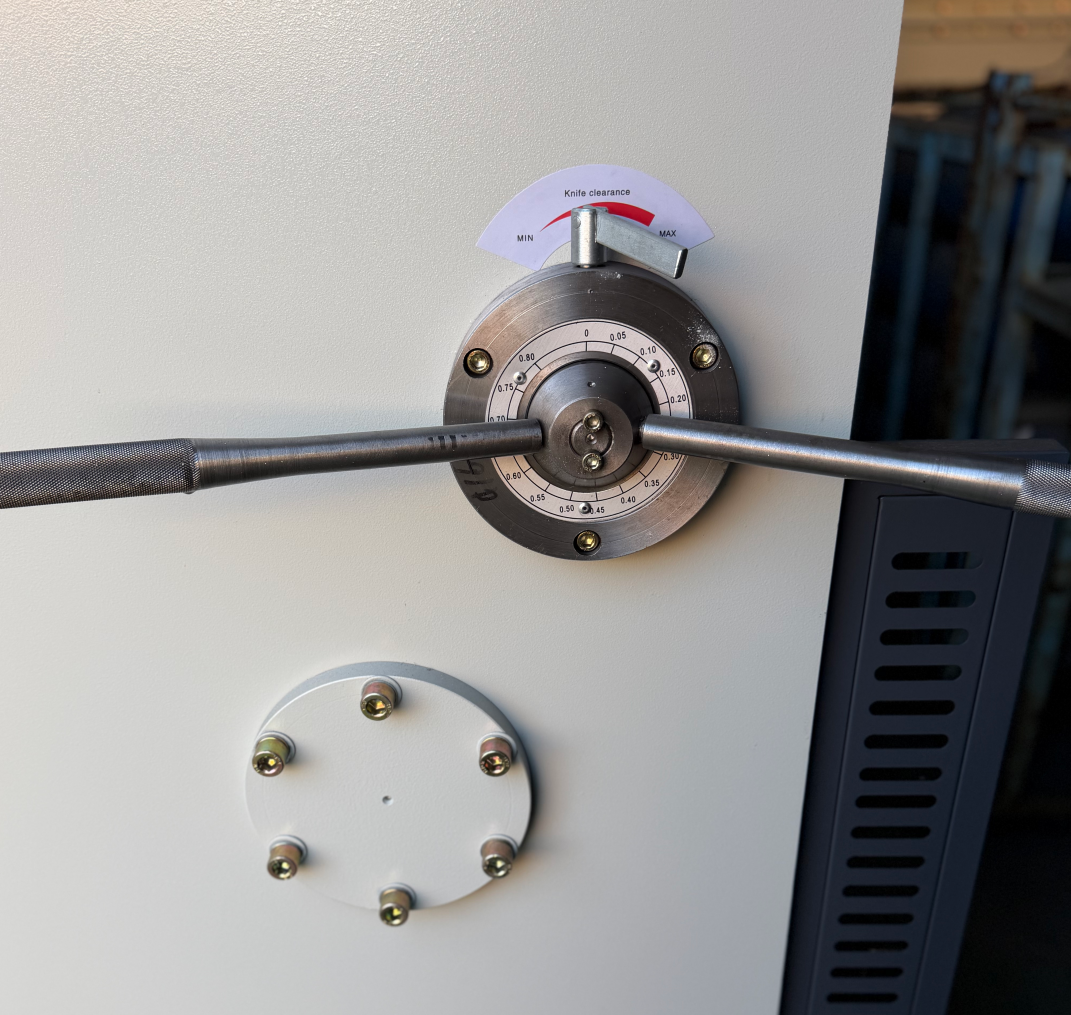

Precise tuning of the gap between the upper and lower blades is vital for controlling burr, rollover, fracture and blade load. The correct clearance depends on material type, tensile strength, thickness and blade condition. Adjustment may be manual, handwheel-driven, motorized or automatically calculated by the control. On BEIGEMA’s current product pages,
the QC11Y hydraulic guillotine shear is described with automatic blade-gap adjustment, while the QC12K swing beam shear is described with mechanical adjustment. Treat these as product-specific configurations and restate them in the signed quotation.
4. Control System and Automation
The control package does not define whether a machine is guillotine or swing beam. Both architectures can be supplied with different levels of control. Typical functions may include backgauge positioning, cut length or stroke control, piece counting, gap or rake settings, program storage and diagnostics. BEIGEMA’s live pages currently show E21S and optional Delem DAC-360T / DAC-310T packages. The Delem names should include the hyphens, and the available functions must be confirmed against the chosen controller and machine I/O. A touchscreen upgrade does not automatically improve the mechanical cutting tolerance.
5. Cut Quality, Distortion and Accuracy
Swing beam shears can provide reliable accuracy for many general sheet-metal applications. Guillotine and swing beam machines can both produce usable straight cuts. The final edge and part geometry depend on more than blade path: blade sharpness, clearance, rake, hold-down pressure, material flatness, backgauge condition, sheet support and operator setup all matter. Therefore, do not promise that one architecture is always burr-free, smooth or more precise. For an acceptance test, define the material grade, tensile strength, thickness, cut length, strip width, measurement method and allowable burr, bow, twist, straightness and dimensional error.
6. Capacity: Why an 8 mm Rule Is Not Enough
A single 8 mm dividing line is not a safe buying rule. Shearing capacity is tied to a specific model, material-strength basis and working length. Stainless steel, high-strength steel and aluminum should not be compared at the same nominal thickness without the manufacturer’s derating basis. A buyer must compare maximum thickness and width together, then check minimum thickness, strokes per minute, motor power, backgauge travel, throat, table support and duty cycle.
Use BEIGEMA’s shearing and cutting machine category to shortlist the machine family, then use the signed model table—not a generic blog threshold—as the purchasing reference.
7. Cost, Maintenance and Throughput
A swing beam design may offer a more economical standard package, while a guillotine design may justify higher investment when its adjustment range is useful. This is a commercial tendency, not a price rule. Compare quotations at the same capacity, working width, controller, safety package, backgauge, blade set, spare-parts scope, installation and warranty. Also compare strokes per minute at the required thickness, changeover time, blade-turning time, hydraulic maintenance, operator skill and local service response. The lowest machine price is not necessarily the lowest cost per accepted part.
How to Choose in Six Steps
- 1. Define the material: list grade, tensile strength, yield strength if relevant, and whether the sheet is coated or surface-sensitive.
- 2. Define the size range: state minimum and maximum thickness, maximum sheet width, cut length and narrowest strip.
- 3. Define acceptance: give dimensional tolerance, straightness, burr, bow, twist and surface-mark limits with a measurement method.
- 4. Define production demand: give parts or sheets per shift, batch size, number of material changes and target cycle time.
- 5. Define automation: specify backgauge travel, program storage, gap/rake control, sheet support, conveyor or stacking needs.
- 6. Compare like for like: request both proposals on the same material-strength and width basis, then compare signed specifications and acceptance tests.
Which BEIGEMA Machine Should You Shortlist?
QC12K Swing Beam Shear
Start with the QC12K series swing beam shearing machine when the application is general straight cutting and the buyer values a straightforward, cost-conscious configuration. The current product page describes E21S control and mechanical blade-gap adjustment. Confirm the exact capacity and configuration in the signed quotation.
QC11Y Guillotine Shear
Shortlist the QC11Y hydraulic guillotine shearing machine when the job needs the adjustment and capacity offered by a specific QC11Y model. The live page lists E21S, automatic blade-gap adjustment and optional DAC-360T / DAC-310T packages. Select the exact thickness-and-width model and carry its shearing angle, stroke rate, backgauge range and motor power into the signed quotation.
If the part requires contours, holes, internal features or nesting rather than only straight cuts, compare a
fiber laser cutting solution. Laser is a different process choice; it should not be described as automatically smoother or better without material, gas, power and test conditions.
RFQ Checklist: What to Send the Supplier
- Material grade and tensile-strength basis for every required thickness.
- Minimum and maximum thickness, maximum width, cut length and narrowest strip.
- Required pieces per shift, batch size and number of daily material changes.
- Dimensional, straightness, burr, bow, twist and surface-mark acceptance limits.
- Backgauge range, controller, gap/rake adjustment and material-handling needs.
- Electrical standard, installation location, ambient conditions and local safety requirements.
- Required spare blades, seals, filters, manuals, training, commissioning and service response.
- A sample-cut test using the buyer’s material when edge quality is contract-critical.
Send these inputs through the BEIGEMA contact page so the quotation can identify the exact machine, controller and acceptance basis.
FAQ
1. What Is the Main Difference Between a Guillotine and a Swing Beam Shear?
The main difference is the upper-blade carrier path. A guillotine carrier is guided in a largely linear cutting path, while a swing beam carrier pivots around a fixed axis and follows an arc. Rake, gap, controls and blade edges must still be checked by model.
2. Can a Swing Beam Shear Produce Accurate Parts?
Yes. A properly selected and maintained swing beam shear can produce reliable parts for general fabrication. Accuracy depends on capacity, backgauge condition, blade clearance, blade sharpness, hold-down, material flatness and the stated acceptance method—not on the machine name alone.
3. Why Is Rake-Angle Adjustment Important?
Rake angle affects peak cutting load and sheet distortion. A lower angle can help reduce distortion on some thin or narrow work, while a higher angle can reduce the instantaneous load required for thicker material. Use the model’s approved range and setup guidance.
4. Can a Swing Beam Shear Have Automatic Blade-Clearance Adjustment?
Some models or custom configurations may offer assisted adjustment, but many conventional swing beam shears use manual blade-clearance adjustment. Ask whether the quoted system is manual, motorized or control-calculated and which material inputs it uses.
5. Is a Guillotine Shear Always Better for Plate Above 8 mm?
No. There is no universal 8 mm boundary. Compare the exact machine’s rated thickness and width at the stated material strength, then check duty cycle, stroke rate, cut-quality acceptance, automation and support. The approved model table is the decision reference.
6. Which Information Is Most Important When Comparing Quotations?
Make both suppliers quote the same material grade, strength, thickness, width, tolerance, production volume and options. Then compare the signed capacity table, blade system, controller functions, safety scope, spare parts, commissioning, warranty and acceptance test.
Conclusion
Guillotine shears and swing beam shears each have advantages; the choice depends on individual production needs. Do not choose from appearance, controller brand or an 8 mm rule. Start with material strength, thickness, width, tolerance and output, then compare the exact blade path, rake, clearance, controller, blade profile, model table and acceptance test. This produces a defensible machine decision and a quotation that can be checked after delivery.
