Short answer: choose a 3-roll plate rolling machine when a simpler, lower-cost configuration meets the required material, width, diameter and pre-bending tolerance. Choose a 4-roll machine when secure plate clamping, easier squaring, short straight ends, repeatability and CNC automation justify the added investment. However, roll count alone does not define capacity: a variable-geometry 3-roll can be the right choice for heavy plate, while 4-roll machines are also available for heavy-duty work.
A plate rolling machine uses rotating rolls and controlled pressure to form plate into cylinders, arcs and cones. Typical applications include tanks, pressure-vessel shells, pipes, boiler components, wind-tower sections and ship structures. The buying decision should start from the part and material, then compare the machine architecture.
First, Define Which 3-Roll Architecture You Mean
A three-roll machine uses one upper roll and two lower or side rolls, but those rolls do not move in the same way on every design. This distinction changes pre-bending, straight-end length, handling, operator involvement and capacity.
Symmetrical Pyramid 3-Roll Machine
On a traditional symmetrical pyramid machine, the two lower rolls support and drive the plate while the upper roll moves vertically to apply bending pressure. The design is simple, familiar and economical for general cylinder and arc work.
Its main limitation is end pre-bending. The plate geometry prevents the machine from bending the extreme ends as fully as the central section without repositioning, external pre-bending, trimming or another operation. The result can be longer straight ends. This is a limitation of the symmetrical layout—not proof that every 3-roll machine lacks pre-bending.

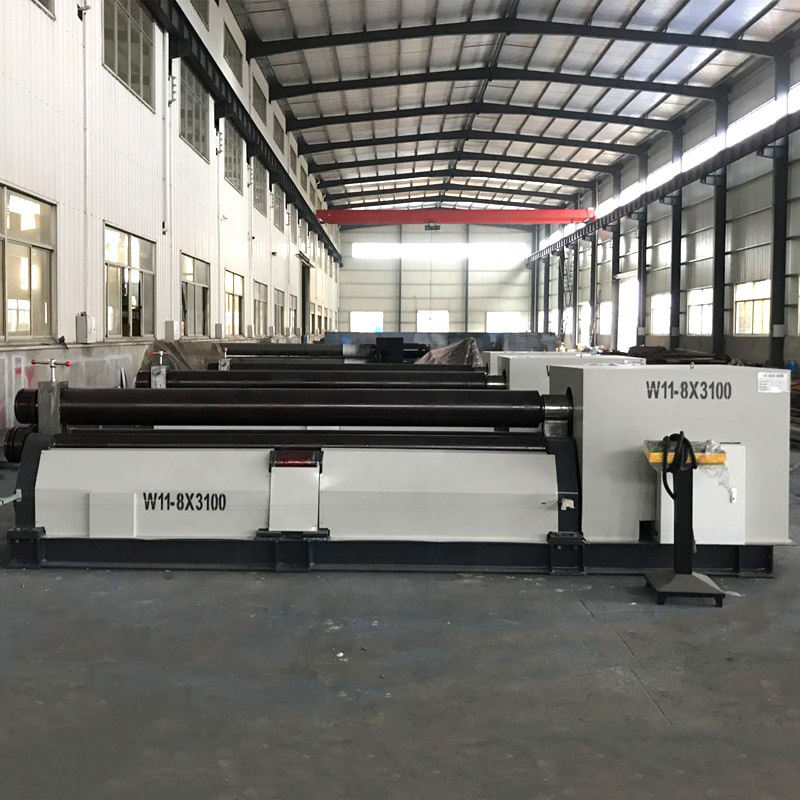

Review the W11 symmetrical 3-roll machine when the project prioritizes a straightforward machine and the permitted straight end is known.
Asymmetric, Double-Pinch and Variable-Geometry 3-Roll Machines
Other three-roll layouts move one or both side rolls, or reposition the upper roll relative to the side rolls. These designs can pre-bend both plate ends, reduce straight sections and handle more demanding parts. Variable-geometry 3-roll machines can also be configured for heavy plate and large diameters. Their working sequence, handling needs and price differ substantially from a basic W11 symmetrical machine.
BEIGEMA’s W11S upper-roller universal 3-roll machine should therefore be evaluated as a different three-roll architecture, not grouped with the W11 symmetrical model.
How a 3-Roll Machine Forms the Plate

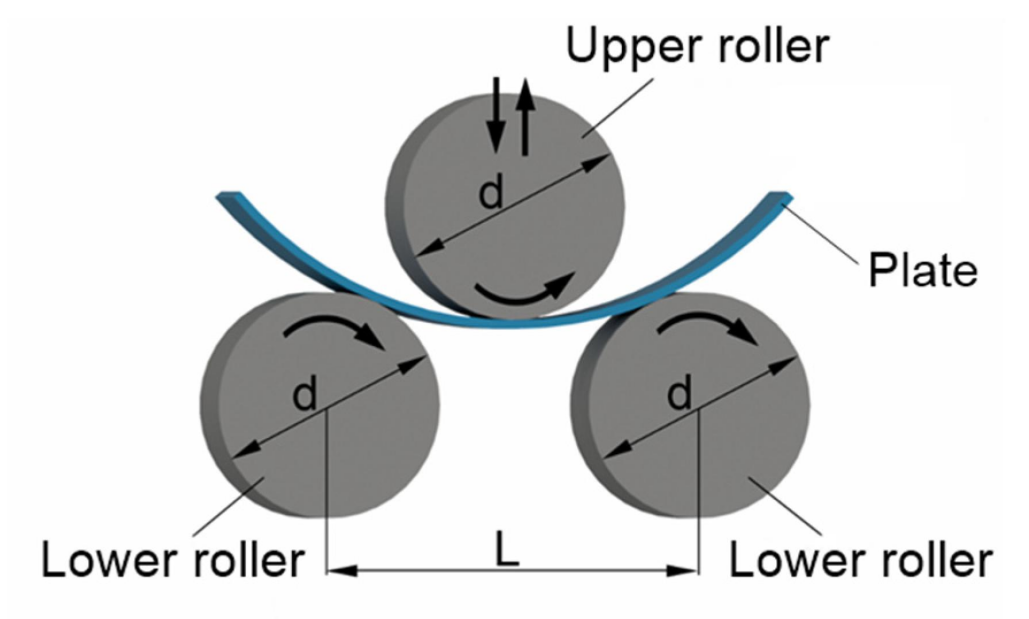

In a symmetrical 3-roll sequence, the operator positions the plate on the lower rolls, lowers the upper roll to create curvature, rotates the rolls to pass the plate through and adjusts the upper-roll position over one or more passes until the target radius is reached. Pre-bending and end handling may require reversing, rotating or removing the plate. Asymmetric, double-pinch and variable-geometry machines use a different sequence, so the illustration above must not be treated as universal.
Common Advantages of a Suitable 3-Roll Configuration
- A simpler architecture and lower initial investment in many like-for-like general-purpose machines.
- Strong capacity options, including designs for thick plate and large diameters.
- Flexible use in job shops when the operator understands plate behavior and the rolling sequence.
- A wide choice of symmetrical, double-pinch and variable-geometry designs for different applications.
Common Limitations to Check
- Straight-end length and pre-bending capability vary sharply by 3-roll architecture.
- Some layouts require more plate repositioning, external handling and operator judgement.
- Automation and repeatability depend on the control, feedback and handling package—not merely the number of rolls.
- The cheapest symmetrical machine may create extra trimming, welding-fit-up or secondary forming work.
How a 4-Roll Plate Rolling Machine Works

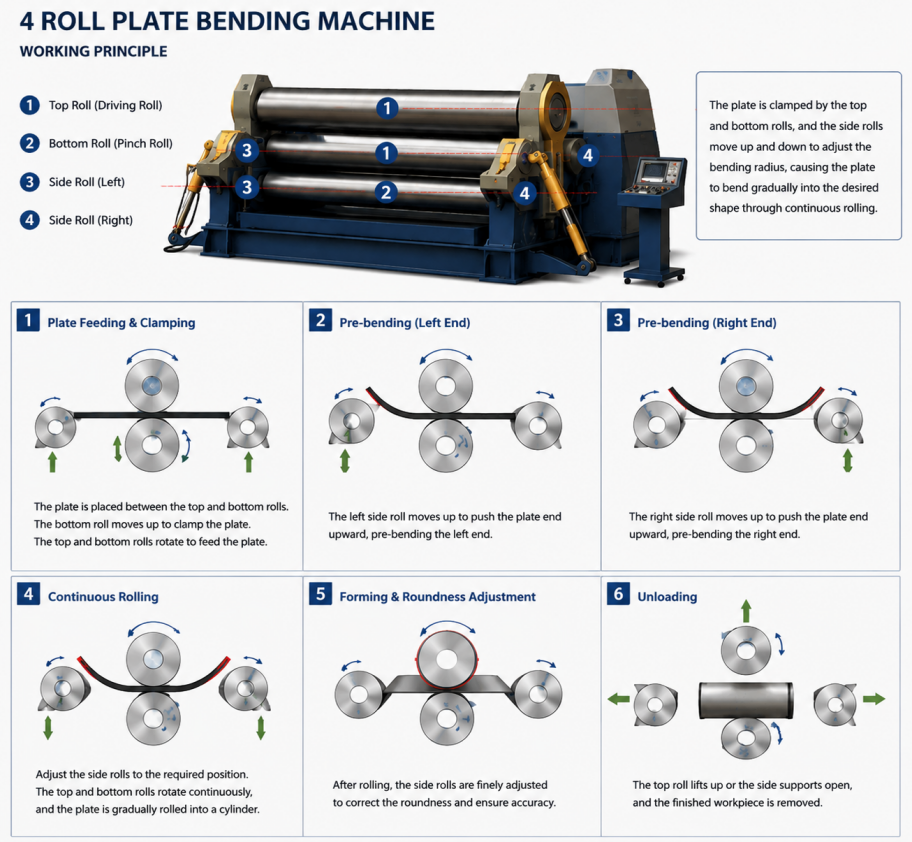

A four-roll machine uses a top roll, a lower pinch roll and two side rolls. The top and bottom rolls clamp the plate, helping the machine control and square it. Each side roll then moves into position to pre-bend one end and form the required radius while the plate remains controlled between the main rolls.
This clamped sequence makes four-roll machines well suited to CNC programs, repeat jobs and integrated handling. A part may be completed with less repositioning than on a basic three-roll machine, but “one pass” is not a universal promise. Material springback, plate thickness, diameter, cone geometry and tolerance can still require correction or multiple passes.
See the W12 4-roll plate bending machine as BEIGEMA’s four-roll reference configuration.

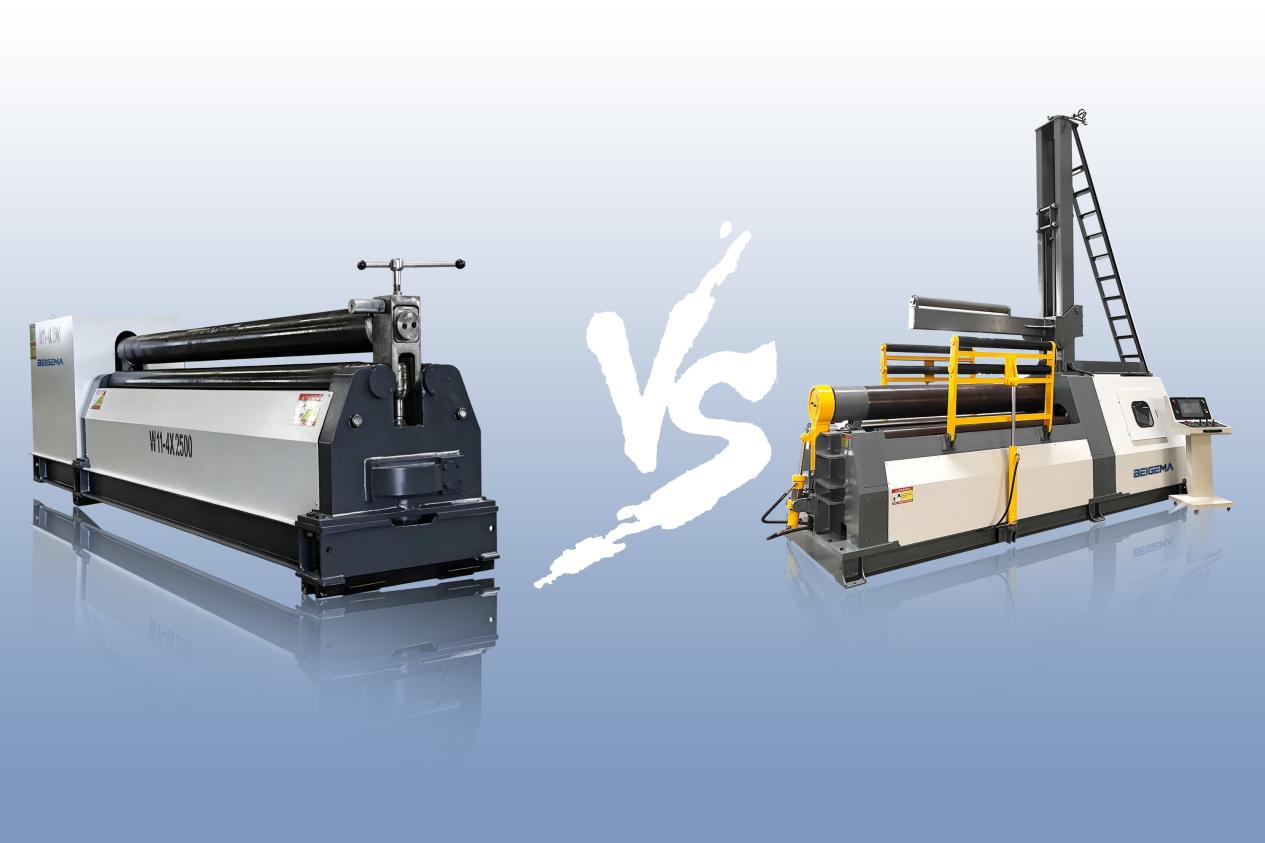

3-Roll vs 4-Roll Plate Rolling Machine Comparison
| Decision factor | 3-roll machine | 4-roll machine |
|---|---|---|
| Plate control | Depends on layout; may require more repositioning | Top and bottom rolls keep the plate pinched and controlled |
| Pre-bending | Weak on basic symmetrical designs; strong on suitable double-pinch or variable geometry | Integrated pre-bending of both ends is a core strength |
| Straight ends | Architecture dependent; longer on basic symmetrical machines | Usually shorter when capacity and setup are matched |
| Operation | Can require more operator judgement and plate handling | Easier squaring and a more consistent programmed sequence |
| Automation | Available, especially on advanced 3-roll designs | Well suited to CNC cycles and automated handling |
| Accuracy and repeatability | Good with the right design, control and operator | Strong repeatability from controlled clamping and CNC motion |
| Plate capacity | Ranges from light work to very heavy variable-geometry machines | Ranges from thin plate to heavy-duty machines; check the exact capacity table |
| Cone rolling | Possible with the correct roll-tilt, alignment and support package | Possible with the correct side-roll control and cone equipment |
| Investment | Basic models are often less expensive; advanced 3-roll machines can be premium | Often higher initial cost due to the extra roll, controls and mechanics |
| Best fit | Matched applications where cost, flexibility or heavy 3-roll geometry leads | Repeat production where pre-bending, ease of use and automation lead |
Capacity warning: published rolling and pre-bending thicknesses are valid only for the stated material strength, plate width, top-roll diameter and minimum finished diameter. Reducing width or material strength can change capacity; a tighter diameter or stronger material can reduce it.
Which Machine Is Right for Your Business?
Choose a 3-Roll Machine When
- A specific 3-roll architecture meets the required pre-bend, straight-end and diameter tolerance.
- The production mix is varied and a skilled operator can manage the required plate handling.
- A lower-cost symmetrical machine is acceptable after the cost of trimming or secondary operations is included.
- A heavy-duty variable-geometry 3-roll is the best match for the material, thickness and finished diameter.
Choose a 4-Roll Machine When
- The plate must remain clamped and squared during pre-bending and rolling.
- Short straight ends, repeatability and easier operation are important.
- The shop runs recurring parts, larger batches or CNC programs with less operator intervention.
- The production line will use supports, feeders, ejectors or other automated handling.
Information to Put in the Plate-Roll RFQ
- Material grade, yield strength and tensile strength—not only “mild steel.”
- Maximum plate thickness and width, plus the thickness that must be pre-bent.
- Smallest finished inside diameter and any larger diameters in the production range.
- Allowed straight-end length, roundness tolerance and number of passes or correction allowed.
- Cylinder, arc or cone drawings; cone angle, inlet/outlet diameters and off-center requirements.
- Annual quantity, batch size, changeover frequency and target cycle time.
- Plate weight, loading method and required side supports, overhead support, ejector or feeding table.
- Control level, program storage, automatic sequencing, safety standard, installation space and operator training.
Browse the complete plate rolling machine range only after the part data above are fixed; otherwise two capacity tables cannot be compared fairly.
Conclusion
A basic 3-roll machine can be the practical choice for general work and controlled budgets, while an advanced 3-roll design can solve demanding pre-bending or heavy-plate applications. A 4-roll machine normally offers the easiest plate control, strong pre-bending, short straight ends and the clearest path to repeatable CNC production. The correct decision comes from the part drawing and capacity calculation, not the roll count by itself.
Send BEIGEMA the material, thickness, width, minimum diameter, pre-bending requirement, cone drawings and annual quantity through the rolling-machine enquiry page. BEIGEMA can then compare W11, W11S and W12 configurations on the same forming requirement.
FAQ
Q: Can every 3-roll machine pre-bend both plate ends?
A: No. A basic symmetrical pyramid machine has limited end pre-bending, while double-pinch, asymmetric and variable-geometry 3-roll designs can pre-bend more effectively. Ask for the exact rolling sequence and the rated pre-bending thickness.
Q: Does a 4-roll machine always finish a cylinder in one pass?
A: No. Four-roll clamping can reduce repositioning and supports automated cycles, but material springback, thickness, diameter, cone geometry and tolerance may still require correction or multiple passes.
Q: Is a 3-roll machine always better for ultra-thick plate?
A: No. Heavy-duty machines exist in both 3-roll and 4-roll designs. Compare capacity at the same material strength, width, minimum diameter and pre-bending requirement instead of choosing by roll count.
Q: Why does pre-bending capacity differ from rolling capacity?
A: Pre-bending acts near the plate end and places a different load on the machine. Manufacturers therefore publish a lower pre-bending thickness than central rolling thickness for many models. Both values must be checked.
