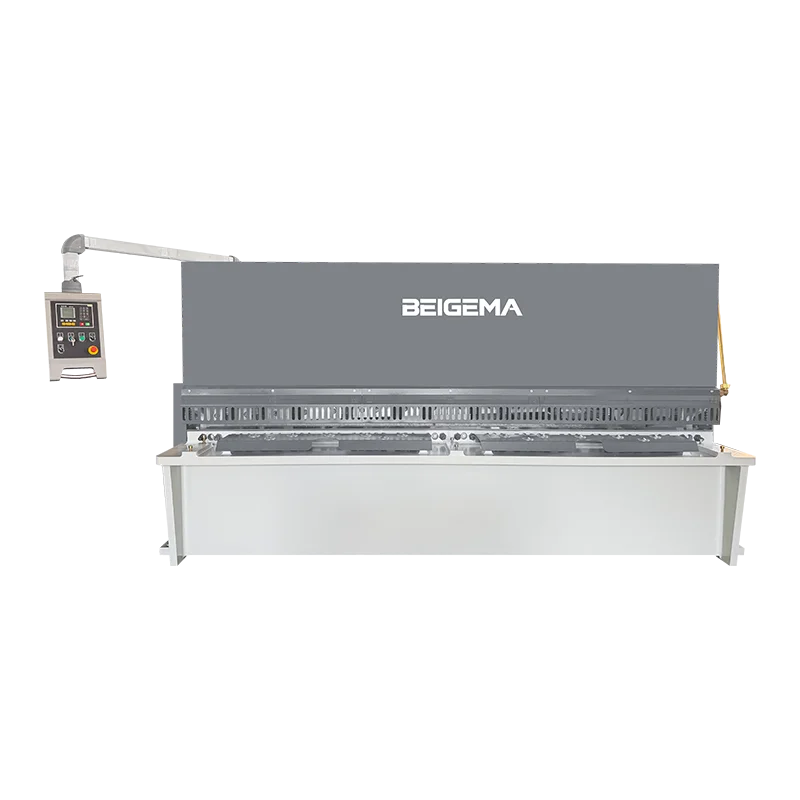

Hydraulic Swing Beam Shearing Machine,Optimized shearing angle design ensures high straightness and minimal torsion tolerance. High-standard safety features provide greater peace of mind during operation and can creat more value for businesses.
View all hydraulic shearing machines, or compare with the QC11Y guillotine shearing machine.
Configuration note: Controller, axes, working range, tolerances and included components must be confirmed in the signed technical quotation for the selected machine.
- Model: QC12K
- Controller: E21s
- Capabilities: max 32mm
- E21S Controller: Estun
- Schneider Electrical Components
- Motor: Siemens (France)
- Back Stopper, Timing Belt, Pulley(China)
- Frequency Converter: Delta (China)
- Oil Pump: Sunny
- Pedal: Kacon from Korea
- Rexroth Valve: Bosch ( Germany)
- Parker Sealing Ring(USA)
- Oil Tube Connector: EMB
- One Set Standard Die
- Back Gauge（ Ball Screw + Linear Guide)
- Front + Back Light protect: China( Optional)
- Pneumatic Supporter: China (Optional)
- Feeder: China
Standard Configurations
Introduction To Components
E21S Controller System
- High-definition hydraulic display
- Control common motors and frequency converters
- X-axis intelligent positioning
- Multi-step programming, 40 programs, each program 25 steps
- Built-in time relay function
- One-button function switching
- Unilateral positioning function
- A key backup and restore of parameters
- Chinese and English
- Metric system
Shearing Blade
Made of Cr12MoV material, the blade is durable.
The blade cuts in with a beveled arc, requiring less effort to cut and preventing the sheet material from warping. It exhibits minimal twisting and deformation, making it suitable for cutting long plates, thin plates, and stainless steel.

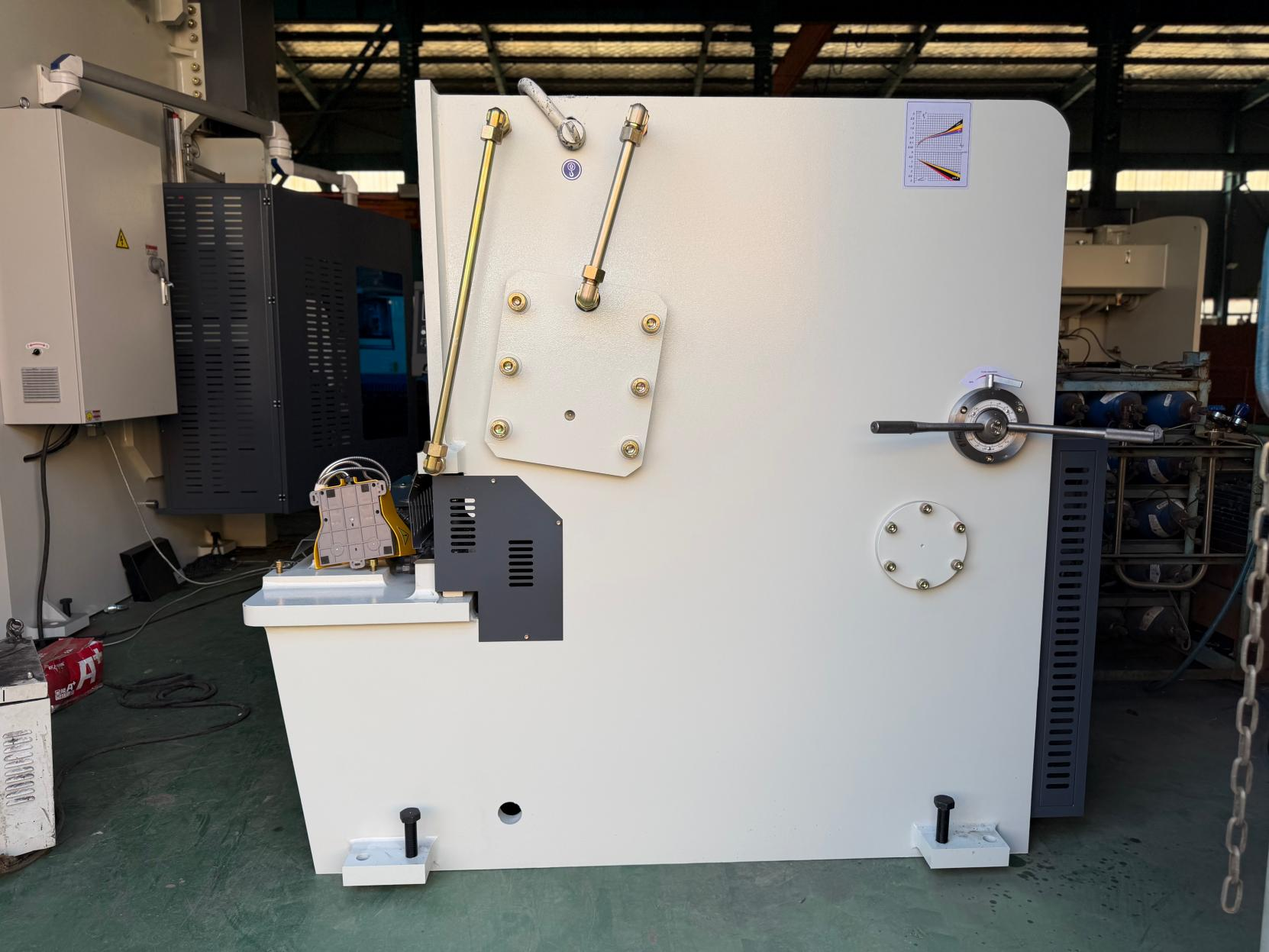

Blade Gap adjustment
Purely mechanical adjustment, simple structure, low failure rate, low maintenance cost, intuitive and precise adjustment, fine adjustment with graduated handwheel, burr-free cut surface, flat and minimally deformed sheet material, and normal production even during power outages.
Schneider Electrics
- Schneider electrical components give the sheet metal machine excellent operational stability and strong anti-interference capability, with superior dustproof, high-temperature and vibration resistance.
- It features comprehensive leakage and misoperation prevention capabilities, ensuring safe and standardized workshop production and meeting global export certification requirements.
- Precise control and improved processing efficiency. It achieves synchronized and coordinated operation of the back gauge, deflection compensation, and front gauge support systems, ensuring consistency in bending dimensions and angles for batches of workpieces.
- Durable and low maintenance costs.

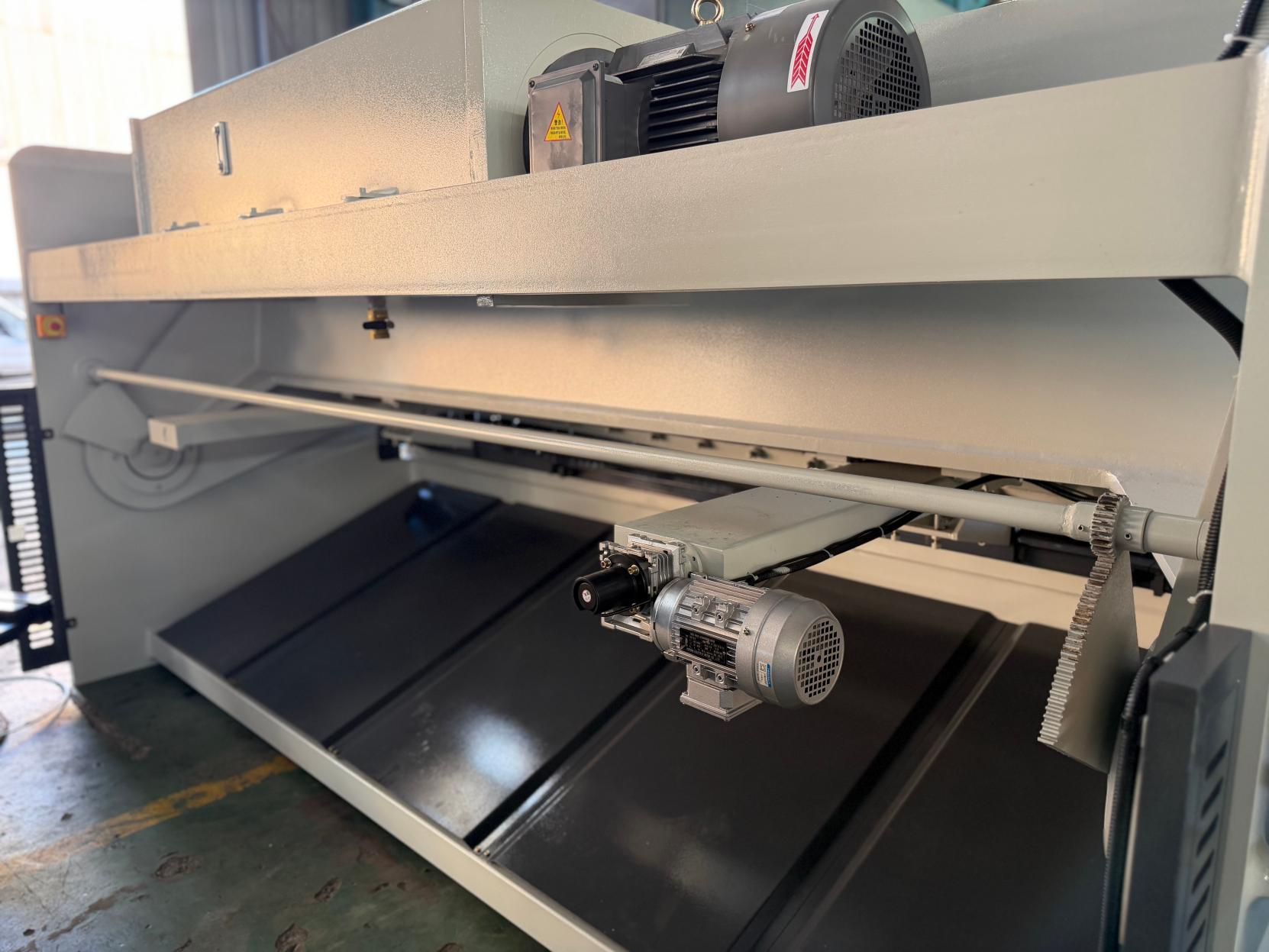

Back Gauge
Precise Positioning: CNC automatic positioning ensures minimal dimensional error and uniform batch dimensions.
Guide rail + lead screw structure provides high rigidity, preventing misalignment and wobbling when handling long or thick plates.
Large Adjustment Range: Sufficient back gauge travel accommodates a wide range of plate sizes.
More Details Of Swing Beam Shear

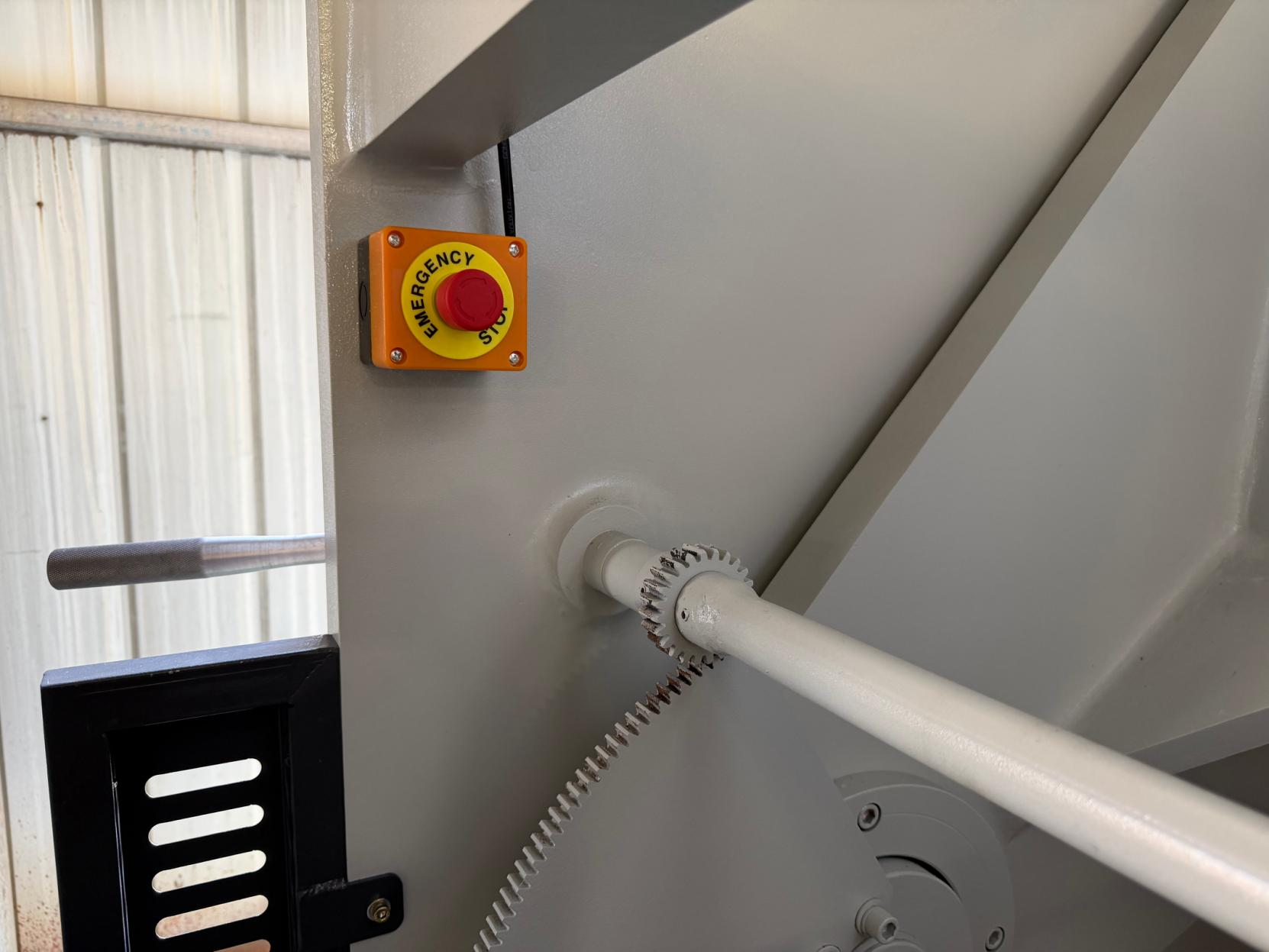

E-stop

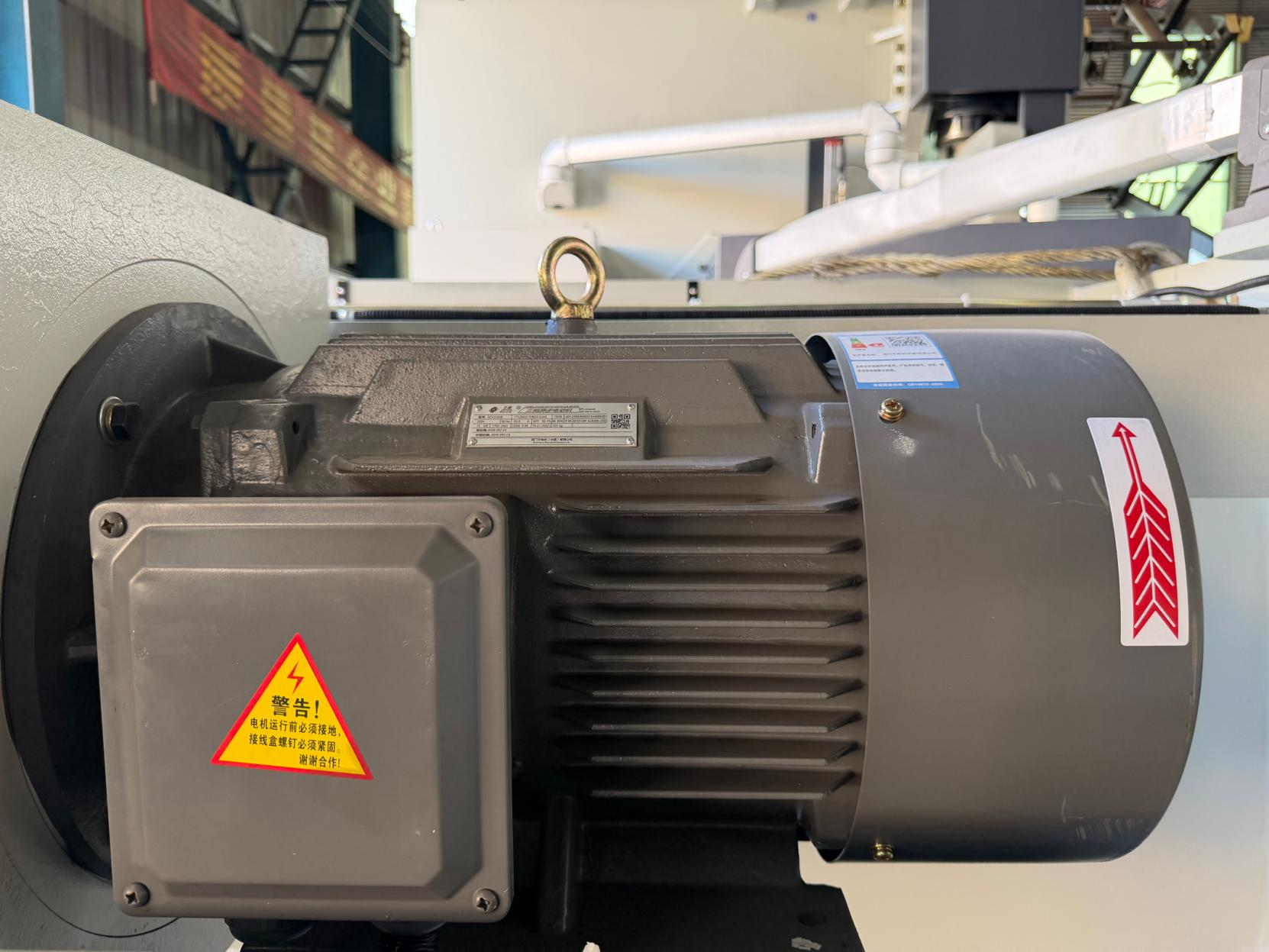

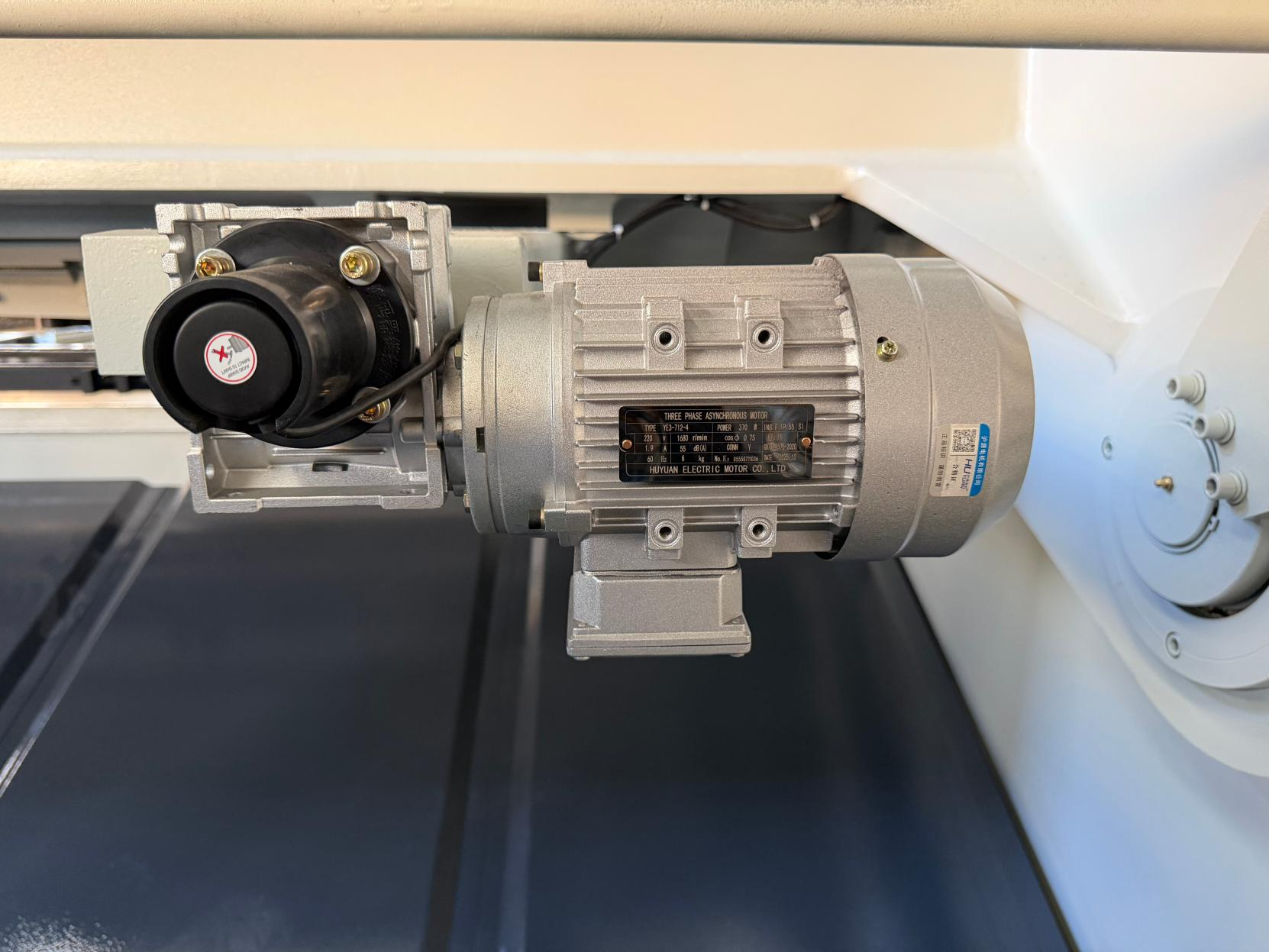

Siemens Motor
Oil Tube

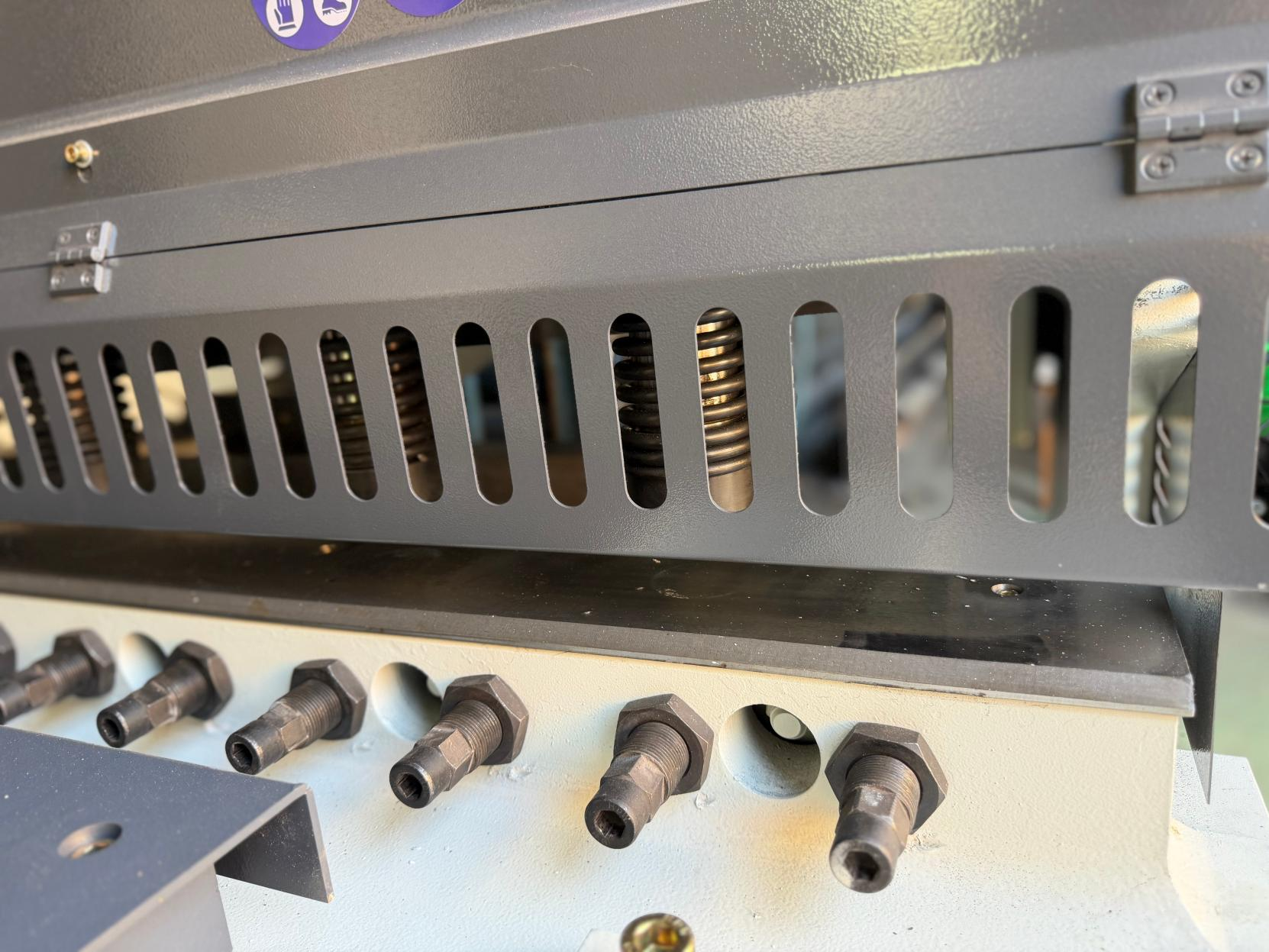

Blade fence

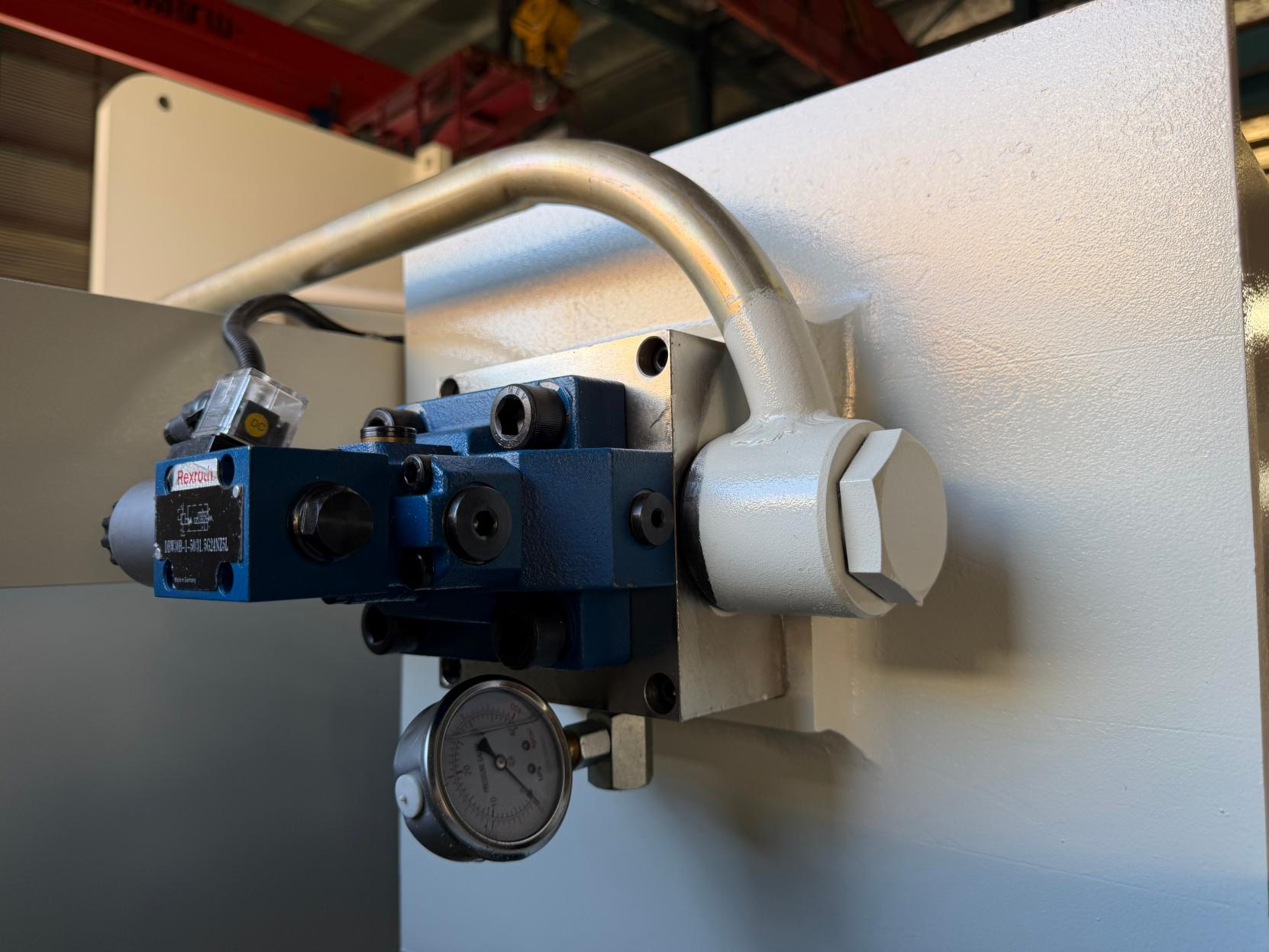

Rexroth valve

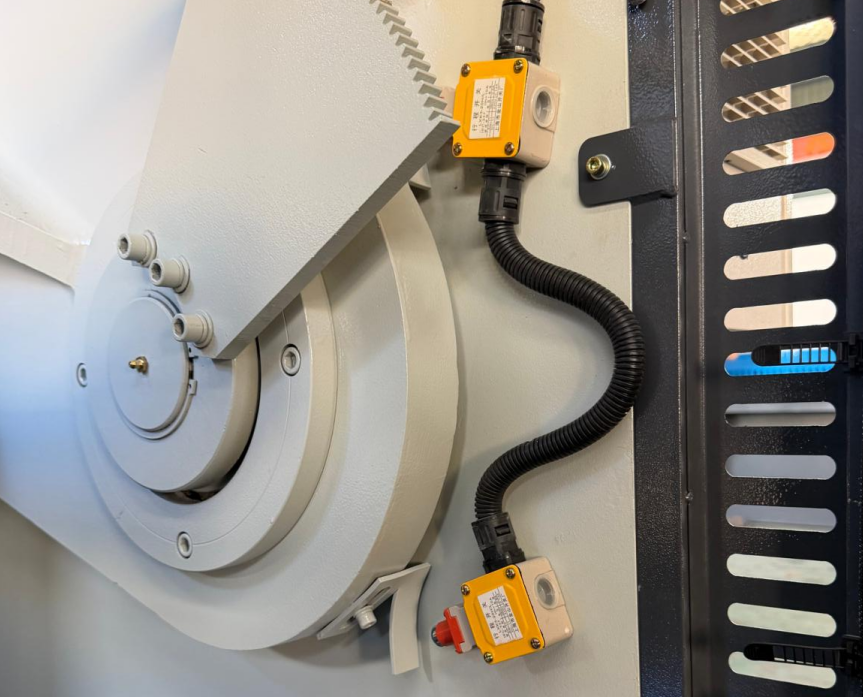

Limit switch
Electric motor

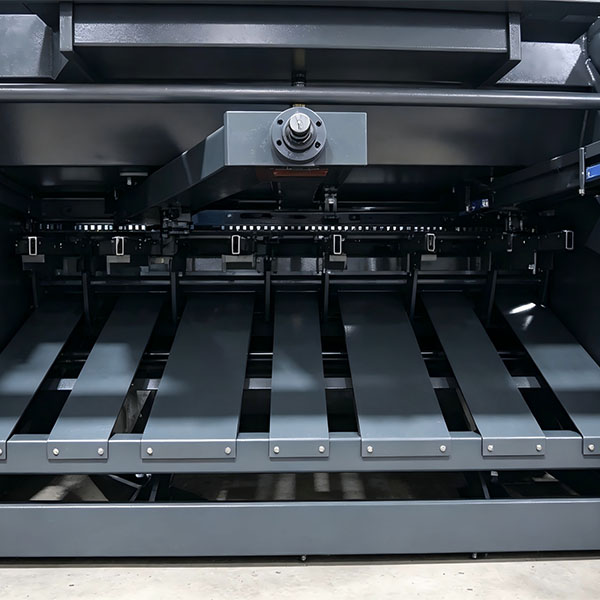

Discharge conveyor
Hydraulic Swing Beam Shearing Machine Specification
| Model | Thickness (mm) | Width (mm) | Tensile Strength | Shearing Angle (°) | Number of Strokes (min⁻¹) | Backgauge Range | Main Power (Kw) |
|---|---|---|---|---|---|---|---|
| QC12Y-6×2500 | 6 | 2500 | ≤ 450 | 1° 30' | 18 | 20~600 | 7.5 |
| QC12Y-6×3200 | 6 | 3200 | ≤ 450 | 1° 30' | 16 | 20~600 | 7.5 |
| QC12Y-6×4000 | 6 | 4000 | ≤ 450 | 1° 30' | 12 | 20~600 | 7.5 |
| QC12Y-6×6000 | 6 | 6000 | ≤ 450 | 1° 30' | 7 | 20~800 | 11 |
| QC12Y-8×2500 | 8 | 2500 | ≤ 450 | 1° 30' | 14 | 20~600 | 11 |
| QC12Y-8×3200 | 8 | 3200 | ≤ 450 | 1° 30' | 10 | 20~600 | 11 |
| QC12Y-8×4000 | 8 | 4000 | ≤ 450 | 1° 30' | 8 | 20~600 | 11 |
| QC12Y-8×6000 | 8 | 6000 | ≤ 450 | 1° 30' | 6 | 20~800 | 15 |
| QC12Y-10×2500 | 10 | 2500 | ≤ 450 | 1° 30' | 12 | 20~600 | 15 |
| QC12Y-10×3200 | 10 | 3200 | ≤ 450 | 1° 30' | 10 | 20~600 | 15 |
| QC12Y-10×4000 | 10 | 4000 | ≤ 450 | 1° 30' | 8 | 20~600 | 15 |
| QC12Y-10×6000 | 10 | 6000 | ≤ 450 | 1° 30' | 6 | 20~800 | 18.5 |
| QC12Y-12×2000 | 12 | 2000 | ≤ 450 | 2° | 12 | 20~600 | 15 |
| QC12Y-12×3200 | 12 | 3200 | ≤ 450 | 2° | 9 | 20~600 | 18.5 |

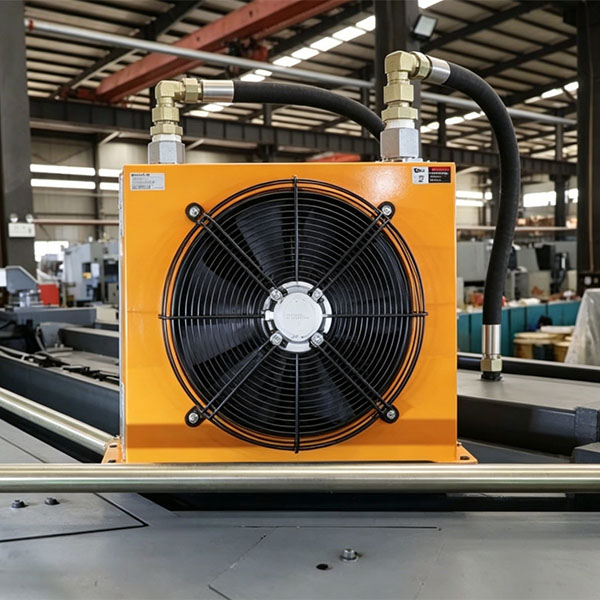

Optional Parts

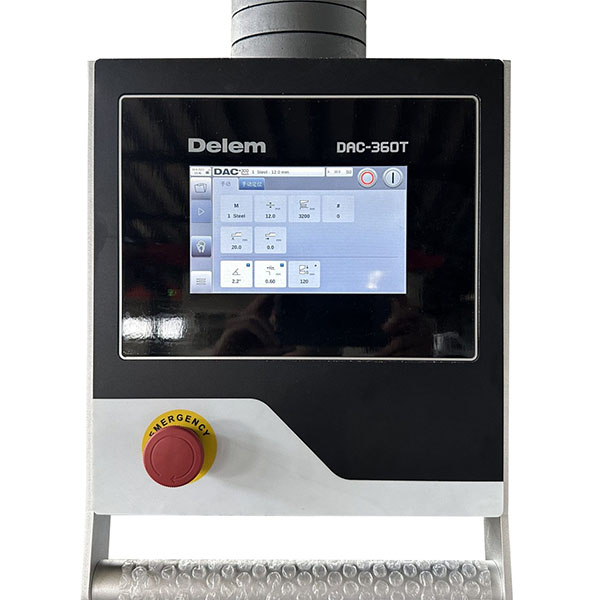

DAC 360T

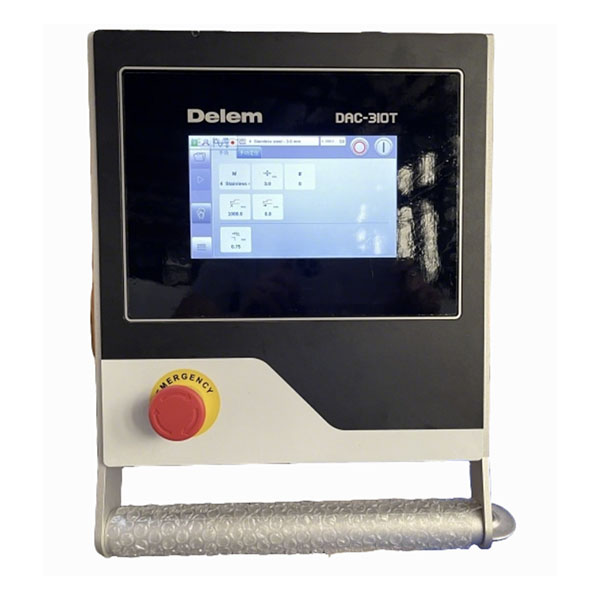

DAC310T
Back Pnematic Supporter
