A single punching and shearing machine can integrate several common processes such as punching, flat bar shearing, angle bar shearing, and corner cutting into one machine.
That consolidation can save floor space and reduce material movement, but it does not mean one ironworker duplicates the capacity, speed or tooling range of every dedicated machine. The decision should be based on the work mix and bottleneck, not the number of stations in a brochure.
See the available models in the ironworker machine category.

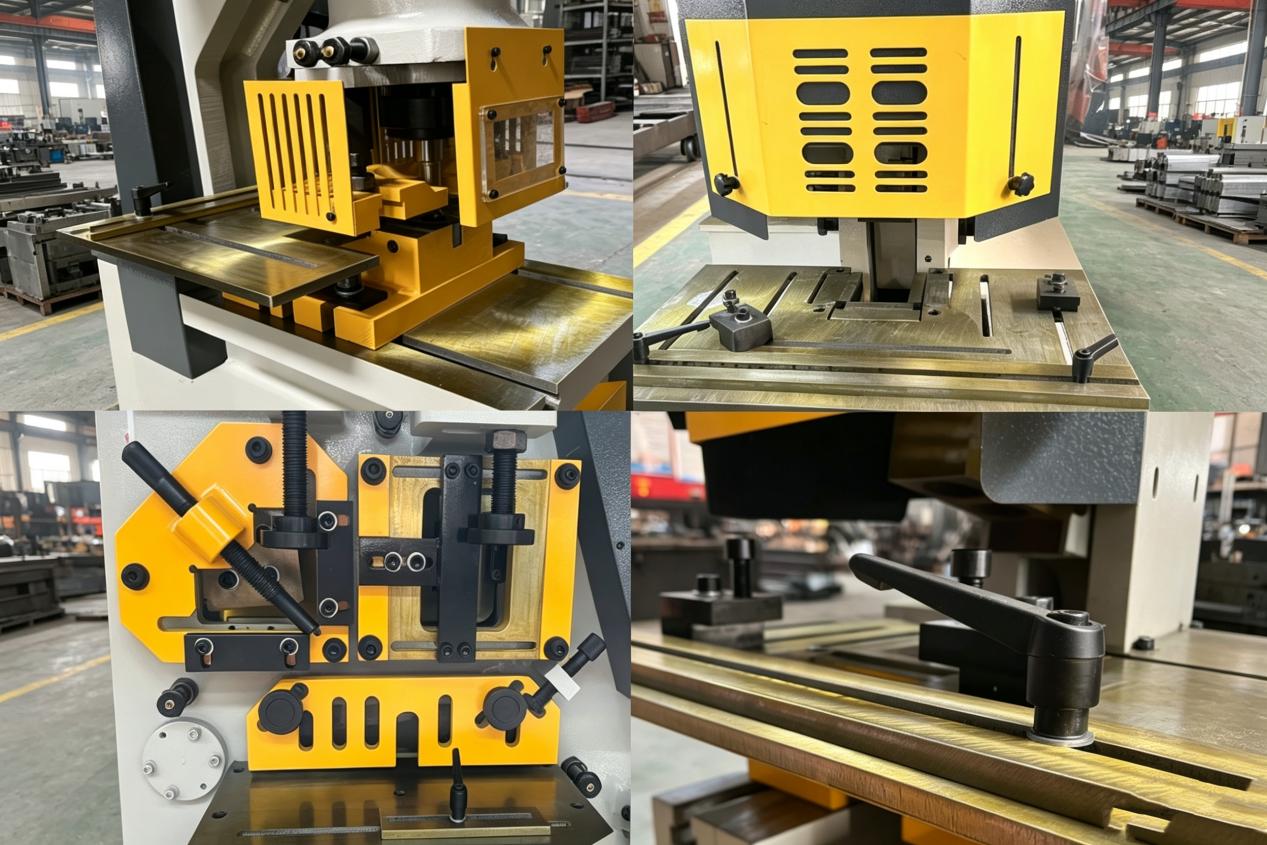

What Can an Ironworker Machine Do?
The current BEIGEMA Q35Y range is presented with punching, plate shearing, channel/angle/profile cutting, round and square bar cutting and notching functions, with optional tooling such as bending or louver punching. The model range shown on the site spans 35–250 t. Exact stations, blades, punches, dies and capacity vary by model and signed configuration.
| Station | Typical work | Boundary to confirm |
|---|---|---|
| Punching | Round/shaped holes in plate or profiles | Tool interface, force, throat and minimum hole |
| Plate shear | Flat bar and plate cutting | Thickness, strength and blade length |
| Angle/profile shear | Selected angle/channel/profile sections | Supported profiles and maximum section |
| Bar shear | Round and square bar | Diameter/size and material strength |
| Notching | Corner and edge notches | Opening, angle, thickness and geometry |
| Optional bending | Simple bends with approved tooling | Not a substitute for full press-brake capability |
The station layout and model table are shown on the Q35Y Series ironworker page.
Five Tradeoffs: One Ironworker vs Dedicated Machines
| Decision factor | One ironworker | Separate machines |
|---|---|---|
| Floor space/utilities | One frame and one main power connection | More space and separate services |
| Capital entry | Can reduce initial equipment count | Higher total outlay but capacity is specialized |
| Job changes | Flexible for mixed small/medium batches | Fast when each line stays on one operation |
| Parallel production | Stations may share one hydraulic cycle/operator zone | Multiple processes can run simultaneously |
| Tooling/capability | Limited to approved station geometry | Broader dedicated tooling and automation |
| Maintenance impact | One outage can stop several functions | Failure may affect only one process |
The hidden constraint is sequencing. Even if a machine has five stations, it may not allow five operators to run five jobs at the same time. Ask how the hydraulic circuit, controls and guarding govern station use.
When an Ironworker Is Usually the Better Fit
- The factory handles mixed structural or general-fabrication jobs in small to medium batches.
- Punching, plate shearing, angle/bar cutting and notching are all used, but none justifies a high-output dedicated line.
- Floor space, utilities and material movement are meaningful constraints.
- Operators can schedule stations without creating a single-machine bottleneck.
- The required profiles, hole sizes and materials fit the documented station capacities.
For a wider process comparison, read metal punching machine types and selection.
When Separate Machines Are Usually Better
- One process represents most of the volume and requires continuous high-speed production.
- Several operations must run in parallel across different work orders.
- The factory needs long, complex bends, automatic angle correction or tooling that belongs on a press brake.
- Profile cutting needs saw-quality ends, mitres or sections outside the ironworker’s approved blades.
- Automation, coil feeding, robotics or dedicated in-line inspection is part of the production plan.
Dedicated press options can be compared in the power press machine category.
How to Check a New or Used Ironworker
| Area | New machine evidence | Used machine inspection |
|---|---|---|
| Configuration | Signed list of stations and tooling | Confirm every installed part against model |
| Hydraulics | Pressure test and leak check | Cylinder, seals, pump, valves, heat and noise |
| Tooling | New punch/die/blade specification | Wear, chips, alignment and replacement availability |
| Frame | Factory inspection and documentation | Cracks, repairs, distortion and anchor points |
| Electrical/safety | Schematics, guarding and controls | Obsolete parts, bypasses, wiring and interlocks |
| Trial work | Your materials and drawings | Same trial plus repeatability under load |
A low used-machine price is not a saving if the required tooling is unavailable, the frame has been repaired or the electrical system cannot meet local safety rules. Include transport, rigging, refurbishment and lost production in the comparison.
Use the buying sheet metal machinery from China checklist to verify documents, factory tests and delivery scope.
Ironworker Machine FAQs
Does one ironworker replace five separate machines?
It can consolidate several common operations, but it does not reproduce every dedicated machine’s speed, tooling range, accuracy or ability to run in parallel.
Can an ironworker replace a press brake?
An approved bending attachment can handle selected simple bends. Long parts, complex programs, angle control and production bending normally require a press brake.
Can all ironworker stations be used at the same time?
Do not assume so. Station use depends on the hydraulic circuit, controls, guards and manufacturer instructions for the exact model.
What should be sent for model selection?
Send material grades, maximum thickness or profile sizes, hole details, daily quantities, required stations, floor layout, utilities and sample drawings.
