When selecting a metal cutting machine, many fabricators face the same question: laser cutting or plasma cutting?
Neither process is automatically better. Laser cutting is usually the stronger choice for thin-to-medium sheet, fine contours and clean edges. Plasma cutting is often more economical for conductive plate when high throughput and heavy-fabrication capability matter more than very small features.
Buyers considering fiber systems can first review the fiber laser cutting machine category.
How the Two Cutting Processes Work

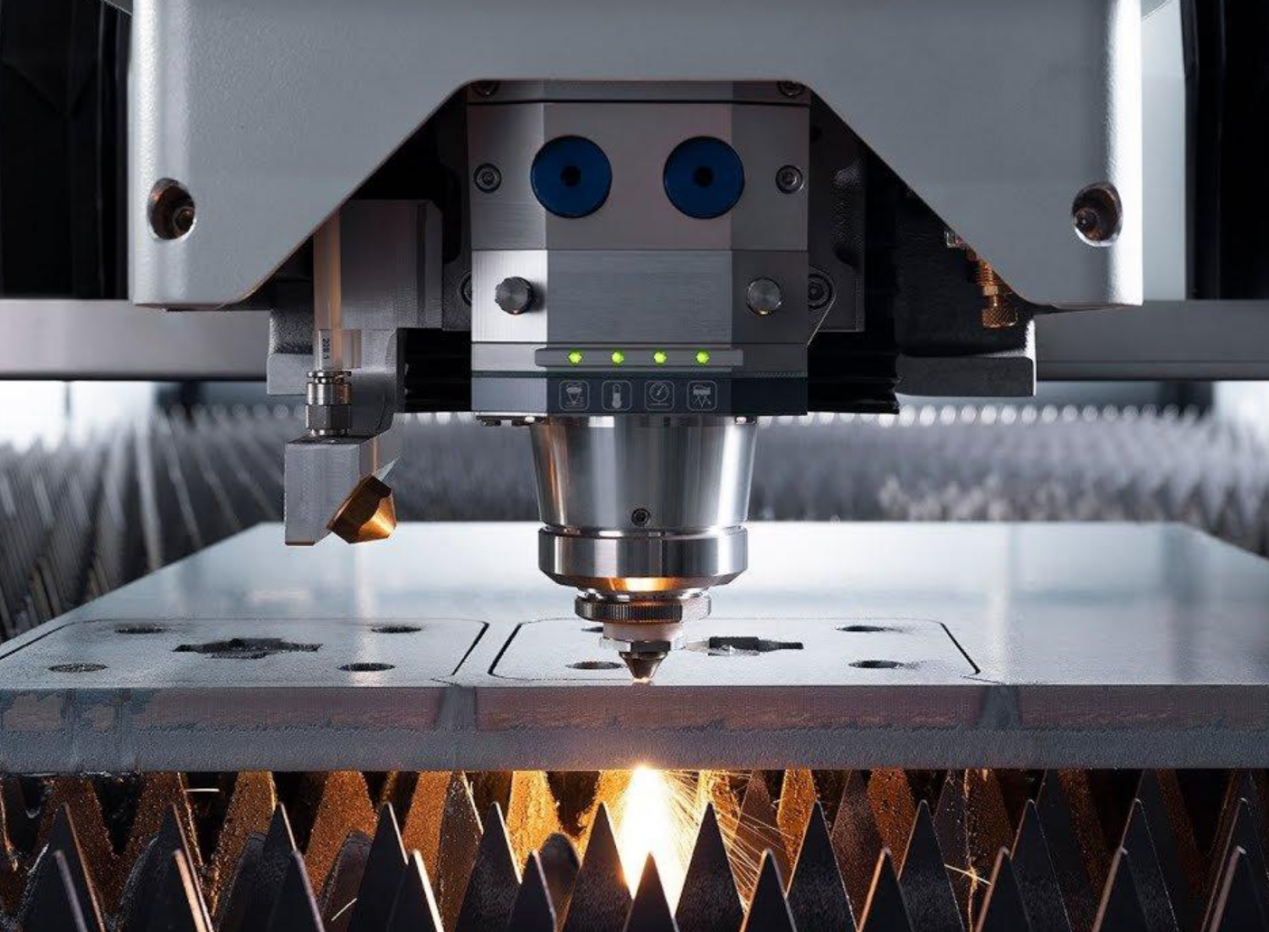

A fiber laser concentrates optical energy through a cutting head. The beam melts or vaporizes a narrow zone, while oxygen, nitrogen or properly conditioned compressed air removes material from the kerf. Machine capability depends on source power, optics, nozzle, focus, motion control, gas delivery and the workpiece.

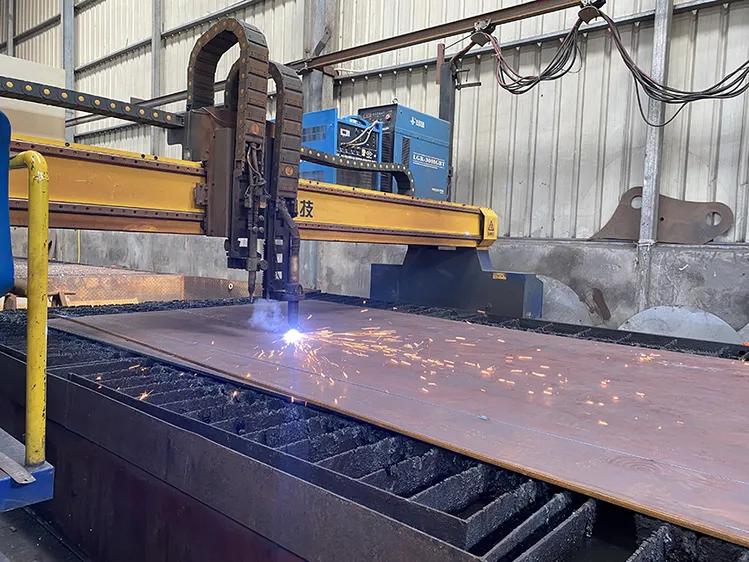

Plasma cutting creates an electrical arc through an ionized gas jet. The arc melts electrically conductive metal and the high-velocity gas ejects it from the cut. Plasma can process carbon steel, stainless steel, aluminum and other conductive metals, but it is not a general process for nonconductive materials.
Laser Cutting vs Plasma Cutting at a Glance
| Decision factor | Fiber laser | Plasma |
|---|---|---|
| Best fit | Precision sheet-metal work | Heavy fabrication and conductive plate |
| Typical kerf | Narrower | Wider |
| Fine holes/contours | Usually stronger | Depends heavily on system and thickness |
| Heat-affected zone | Usually smaller | Usually larger |
| Initial investment | Usually higher | Usually lower |
| Material requirement | Machine/material dependent | Electrically conductive material |
| Thick-plate productivity | Power dependent | Often strong at suitable current |
For verified BEIGEMA screening ranges from 1 to 12 kW, use the fiber laser cutting machine power guide.
Where the Thickness Crossover Usually Appears
A single crossover thickness is misleading because modern high-power lasers and high-definition plasma systems cover overlapping ranges. As a practical starting point, laser is commonly preferred below roughly 12–16 mm when accuracy and edge finish lead the decision. Plasma becomes increasingly attractive above that range when the work is conductive plate and speed or cost per metre leads the decision. The actual boundary must be confirmed by sample cuts and production economics.
| Application | Likely starting point | Confirm before purchase |
|---|---|---|
| Thin cabinet parts | Fiber laser | Small features, film, finish and gas |
| General sheet-metal parts | Compare both if ranges overlap | Sample edge, cycle time and nesting |
| Thick structural steel | Plasma often competitive | Current, pierce limit and bevel tolerance |
| Mixed stainless/aluminum work | Fiber laser often preferred | Grade, thickness, oxide-free edge |

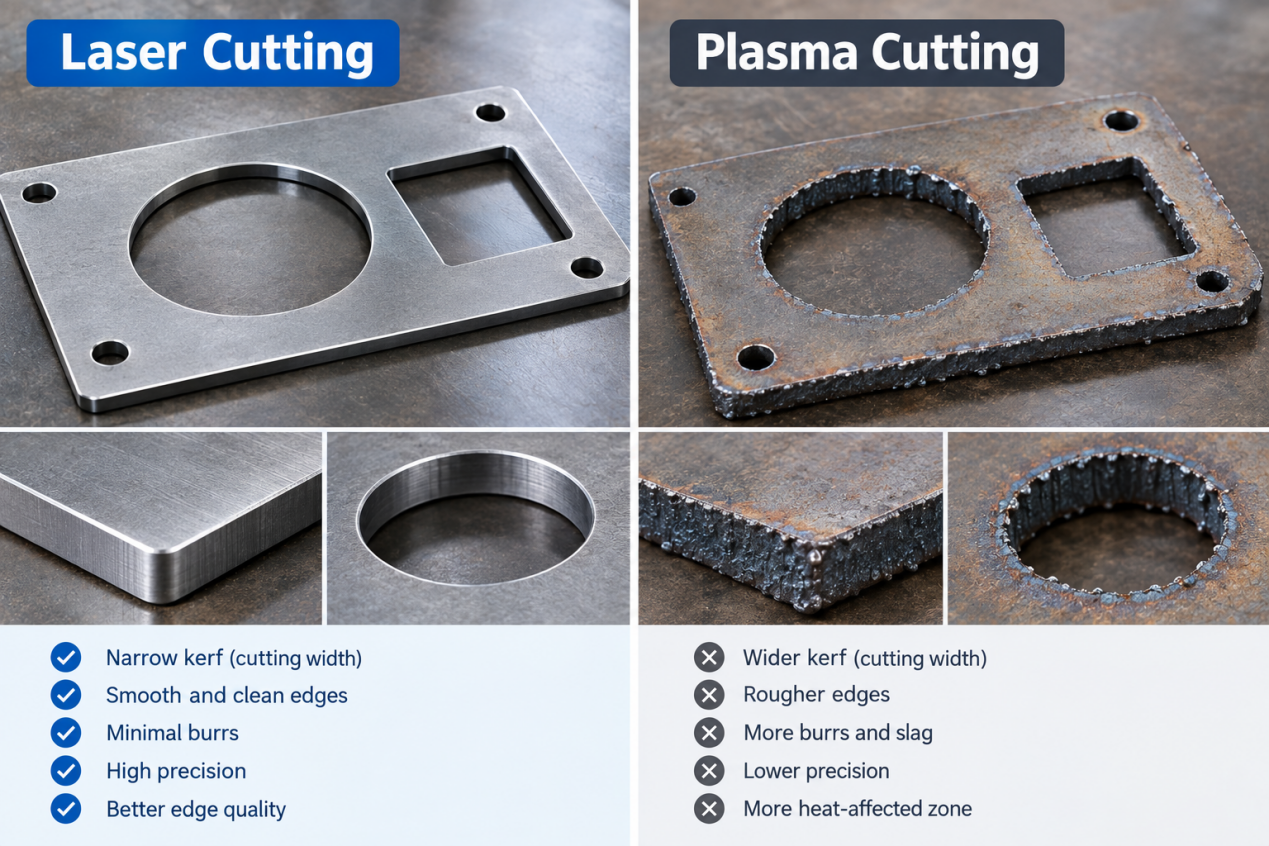

Edge Quality Is a System Result
Laser cutting generally offers a narrow kerf, small heat-affected zone and good detail on sheet metal. Plasma can show bevel, dross or a wider kerf when consumables, current, gas or speed are wrong. However, a properly configured high-definition plasma system can produce strong edge quality on thick plate and may outperform an underpowered laser in that range.
For supplier and acceptance checks, use the sheet metal machinery buying checklist.
Compare Total Cost, Not Only the Machine Price
- Capital cost: machine, cutting table, extraction, gas equipment, compressor or generator, installation and training.
- Operating cost: electricity, oxygen or nitrogen, compressed air treatment, nozzles/electrodes, protective windows and other consumables.
- Production cost: cutting speed, pierce time, nesting yield, setup time and operator attention.
- Downstream cost: dross removal, grinding, oxide removal, straightening and rejected parts.
- Maintenance and uptime: scheduled service, consumable change frequency, local support and spare-parts lead time.
Which Process Fits Your Workshop?
| Priority | Better first candidate | Reason |
|---|---|---|
| Fine details and narrow kerf | Fiber laser | Focused beam and precise motion control |
| Lowest initial equipment cost | Plasma | Simpler entry point in many configurations |
| Thick conductive plate | Plasma | Strong cutting speed and economics |
| Clean stainless edge | Fiber laser with nitrogen | Oxide-free edge when correctly configured |
| Mixed workload | Calculate by representative job mix | No single process wins every part |
A single-table machine example is available on the BM Series fiber laser cutting machine page.
A covered exchange-table configuration is shown on the BM Series full-covered fiber laser page.
Laser Cutting vs Plasma Cutting FAQs
Is laser cutting always more accurate than plasma cutting?
Laser normally has the advantage for fine sheet-metal features, but the result depends on machine class, thickness and setup. High-definition plasma can achieve good accuracy on suitable plate.
Can plasma cut aluminum and stainless steel?
Yes. Plasma cuts electrically conductive metals, including aluminum and stainless steel, when the system and gases are configured for the material.
Which process is cheaper to operate?
It depends on the job mix. Include cutting speed, gases, electricity, consumables, labour, secondary finishing and scrap instead of comparing only one hourly figure.
How should a buyer validate maximum thickness?
Request sample cuts at the required production thickness and quality. Separate maximum severance capability from the thickness that delivers acceptable production speed and edge quality.
