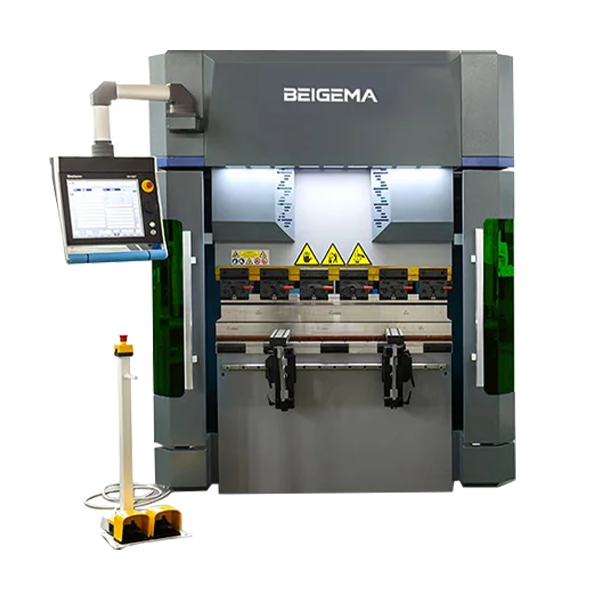

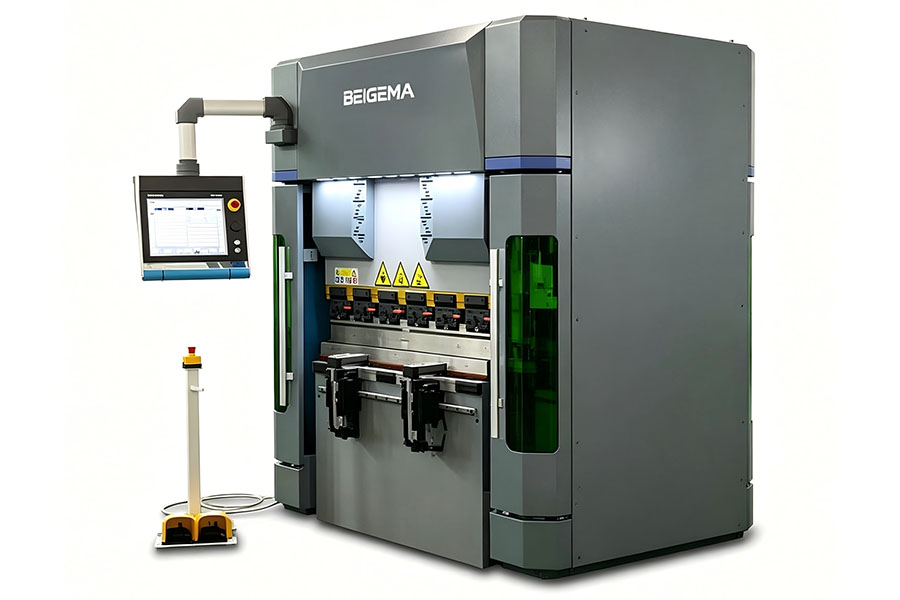

High-efficiency all-electric CNC press brake with ±0.25° precision, low noise, zero oil leaks, and 80% energy savings. Ideal for high-volume sheet metal bending.
- Model: EPP
- Controller: DA53T
- Capabilities: 30T ~ 135T
Introduction To Components

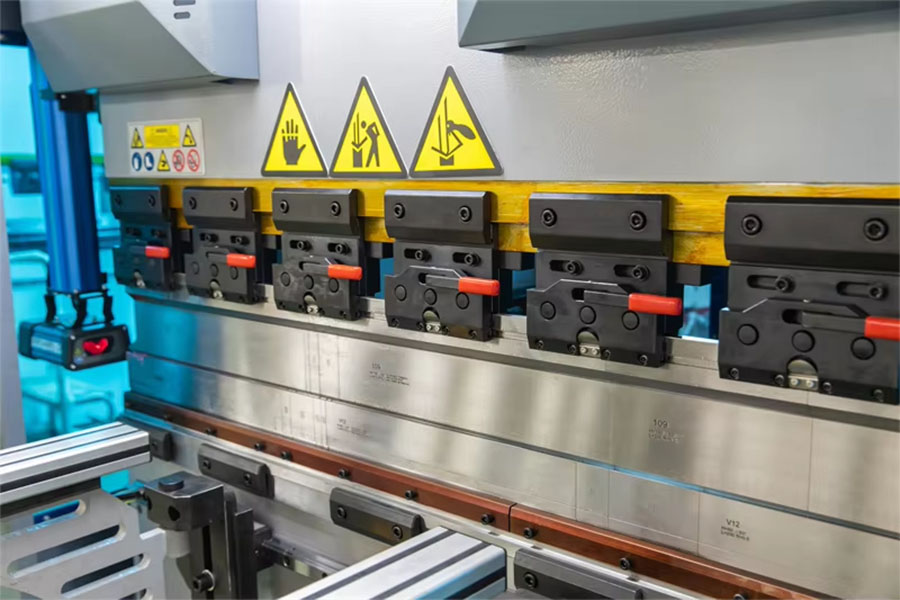

Fast Clamp
The quick-clamping fixture allows for rapid assembly, disassembly, and replacement of bending dies, significantly reducing changeover time and is a standard feature of modern bending machines. The lever is used to lock/unlock the die, providing convenient operation and a secure hold.

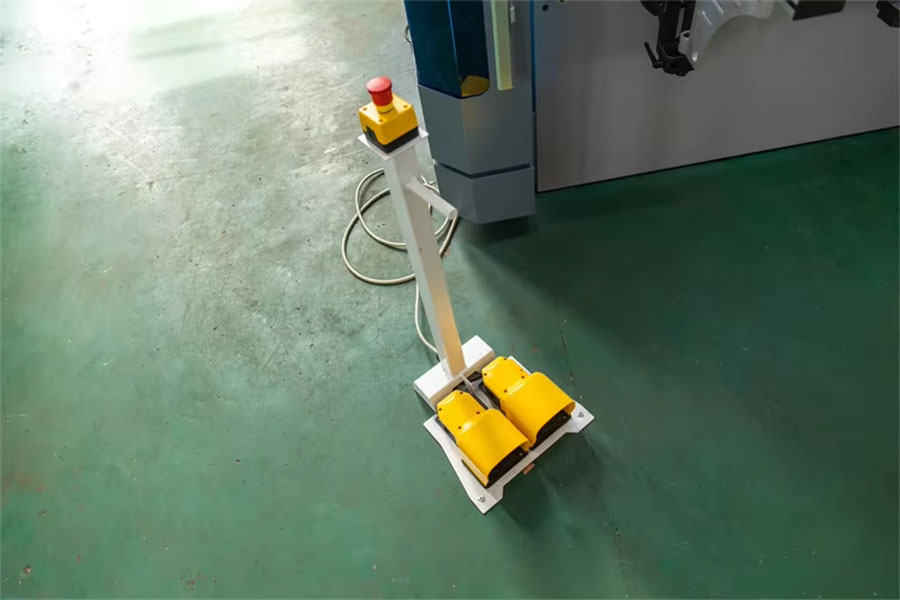

Foot Pedal
Dual-Pedal Operation: Two independent foot pedals control down and up movements, freeing your hands to focus on precise material positioning for faster, more accurate bends.
Integrated Emergency Stop: The elevated red mushroom-style E-stop button provides instant, unobstructed access to shut down the machine in case of emergency, meeting global safety standards.

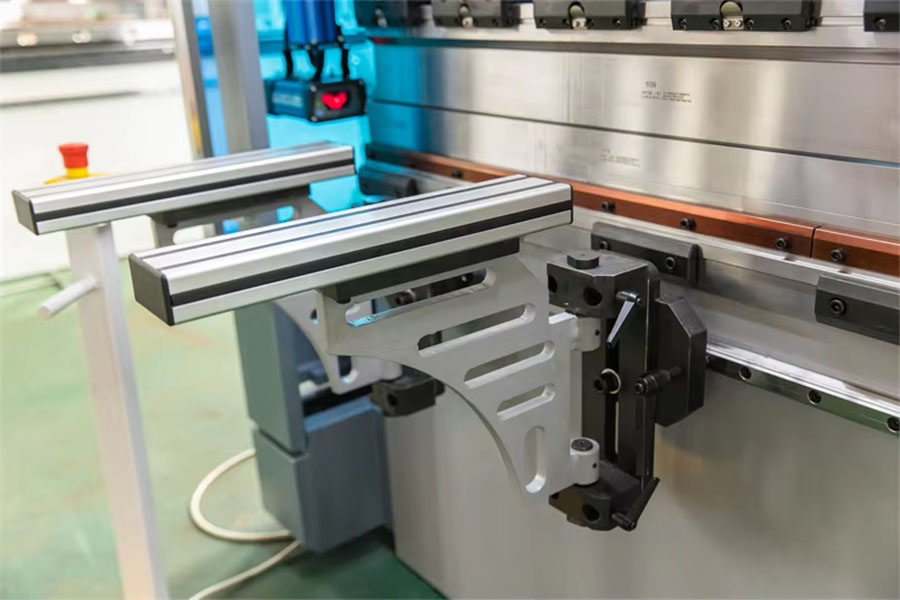

Front Support Arm
It can support the sheet material throughout the bending process, preventing angle deviation and dimensional error caused by the sag of long/thin sheets due to their own weight. It also avoids the precision fluctuation caused by uneven force and shaking when manually supporting the material, ensuring the dimensional consistency of batch processing.

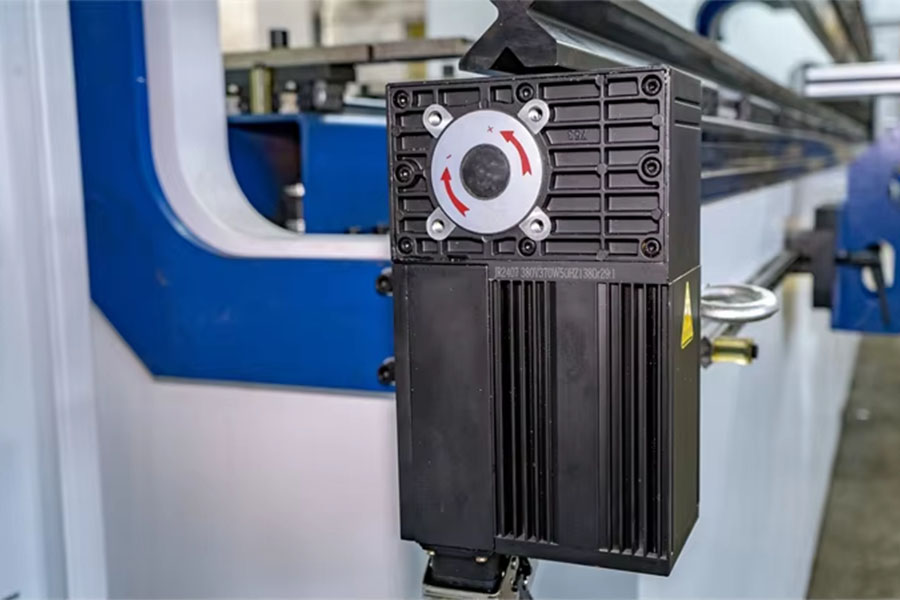

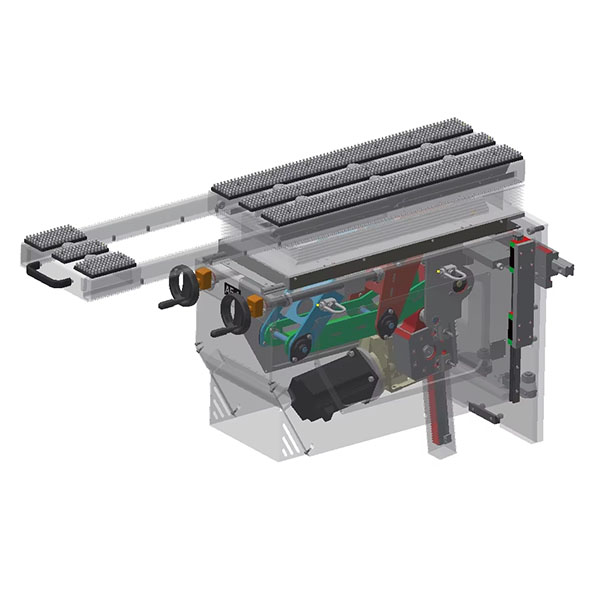

Mechanical Crowing
When subjected to force, the slider and worktable of a bending machine undergo elastic deformation, resulting in a larger bending angle in the middle of the sheet metal and a smaller angle at both ends, commonly known as “opening error”. The servo compensation system drives the worktable to generate reverse pre-deformation through a lead screw, which counteracts the deflection of the equipment under force, keeping the bending angle error of the entire sheet metal within ±0.25°, ensuring that the angle of the entire workpiece is completely consistent.

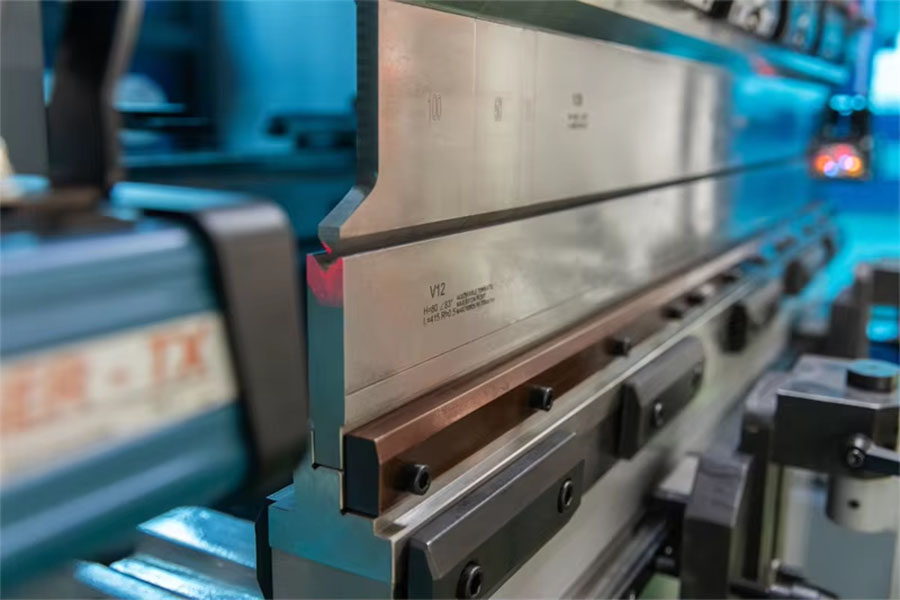

Upper punch and Die
Standard upper and lower dies can meet different bending requirements of customers, and different die solutions can be customized according to the characteristics of the customer’s sheet material.

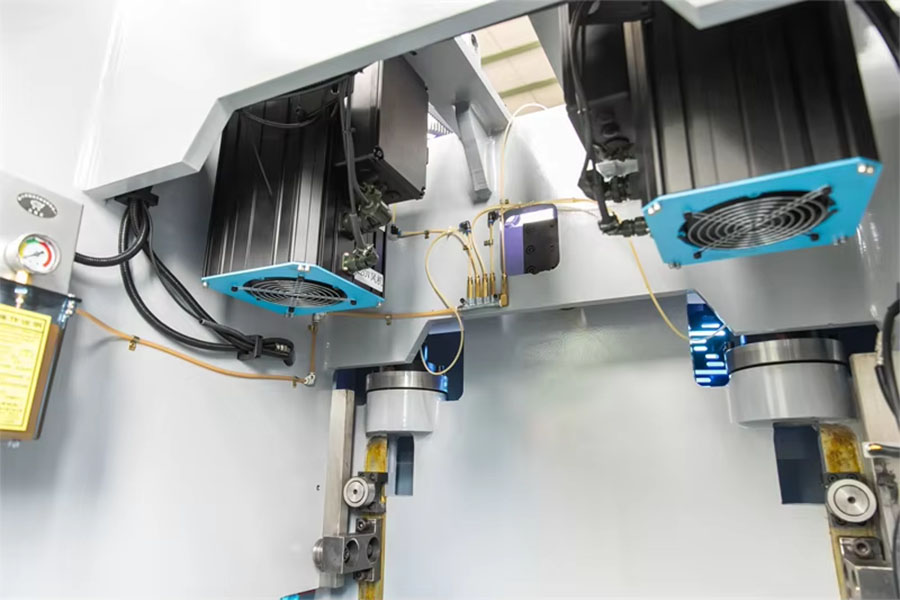

Inovance Servo Motor
High-precision closed-loop control: The servo motor has a built-in encoder, providing real-time feedback on position and speed. Control accuracy reaches ±0.01mm, and bending angle error is consistently within ±0.25°, eliminating the risk of missed steps.
High efficiency and energy saving: Power is consumed only during bending; standby power consumption is almost zero. Compared to hydraulic bending machines, energy savings can reach 30%-80%, with a transmission efficiency exceeding 95%.
Fast response and high efficiency: Response time is only a few milliseconds, and the slider speed is infinitely adjustable. Bending cycle time is increased by more than 30% compared to hydraulic models, making it particularly suitable for high-frequency production.
Optional Parts

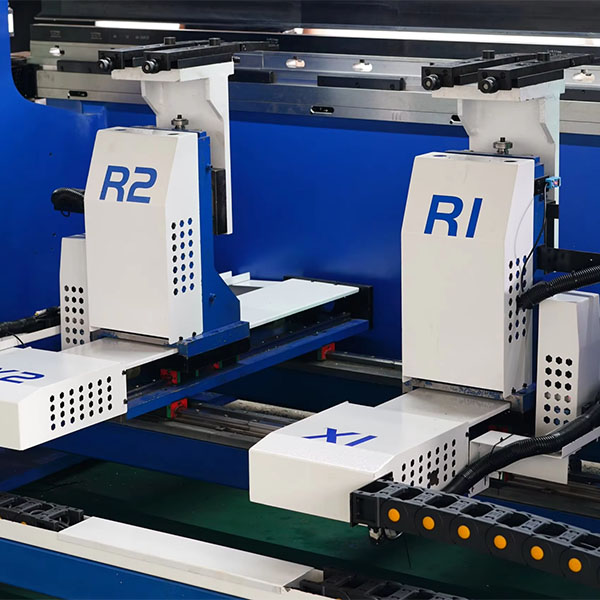

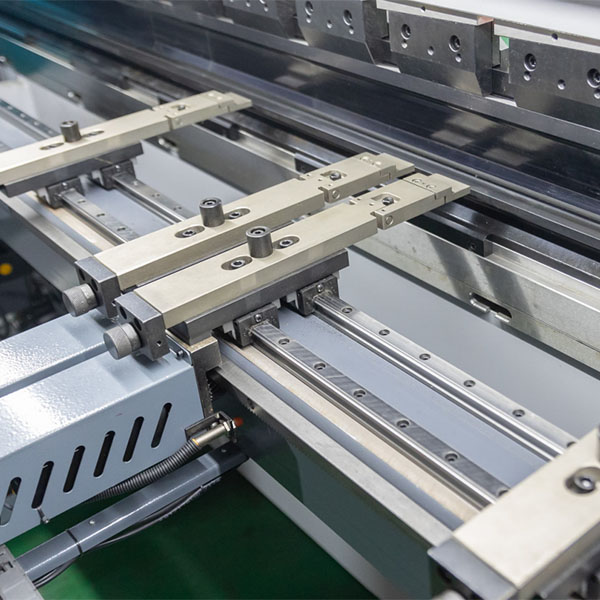

Back Guage
Stop Finger

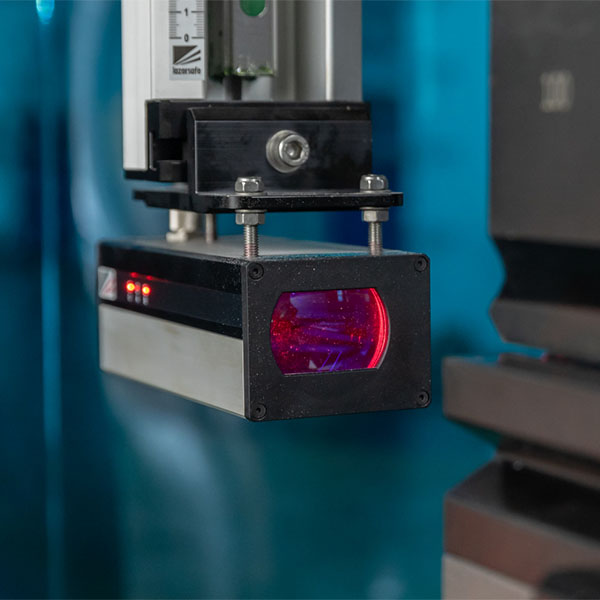

Laser Safe
