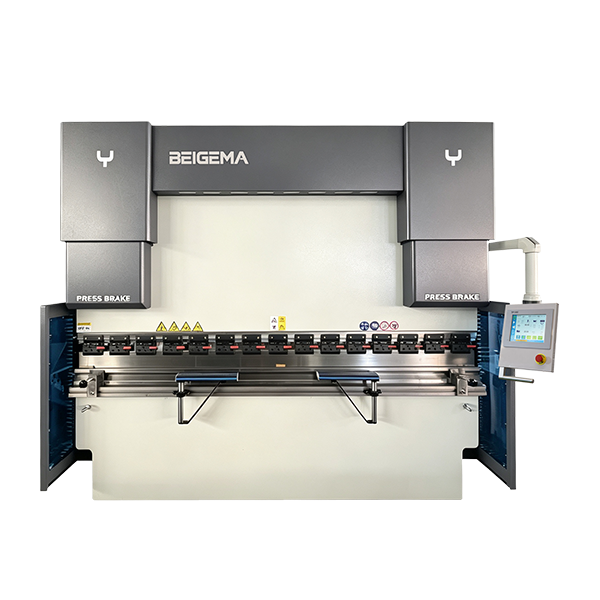

WC67K Series NC Hydraulic Press Brake Machine With TP10S Controller System
This WC67K configuration combines the torsion-bar press brake platform with the TP10S controller. The functions published on this page include Y-axis ram control, X-axis back-gauge control, retract functions, servo control, angle and tool programming, storage for up to 220 programs, and up to 24 bends in each program. It is aimed at repeat multi-bend work that needs organized program storage without moving to the MB8 CNC platform.
Browse all hydraulic press brake machines, or step up to the MB8 CNC press brake with DA-69S.
Configuration note: Controller, axes, working range, tolerances and included components must be confirmed in the signed technical quotation for the selected machine.
When the TP10S version fits: The TP10S configuration shown on this page programs the ram and back gauge, supports angle and tool programming, and stores multi-bend programs. It is a separate WC67K control choice, not a renamed E21 or E310P page. Buyers should confirm the exact programmed axes, servo hardware, program capacity and crowning arrangement in the technical quotation because the controller name alone does not define the full machine. Compare the E21 configuration, the E310P configuration, and our press brake selection guide.
Buyer resources: compare press brake machines, learn how to choose a press brake, or compare CNC and NC press brakes.
- Model: WC67K
- Controller: TP10S
- Capabilities: 30T ~ 400T
- NC Controller: TP10S
- Back gauge: X+Y
- Hydraulic valve: Rexroth from Germany
- Gear Pumu: Sunny from USA
- Foot Switch: Kacon from Korea
- Main Motor: Siemens from Germany
- Electric Components: Schneider from France
- Oil Sealing: Japan
- Ball Screw + Linear Guide: HIWIN
- Front Support: BEIGEMA
- Tube Connector: EMB from Germany
- Fast Clamp: BEIGEMA
- Punch and Die: Beigema
- Compensation: Mechanical Crowning
Standard Configurations
Introduction To Components

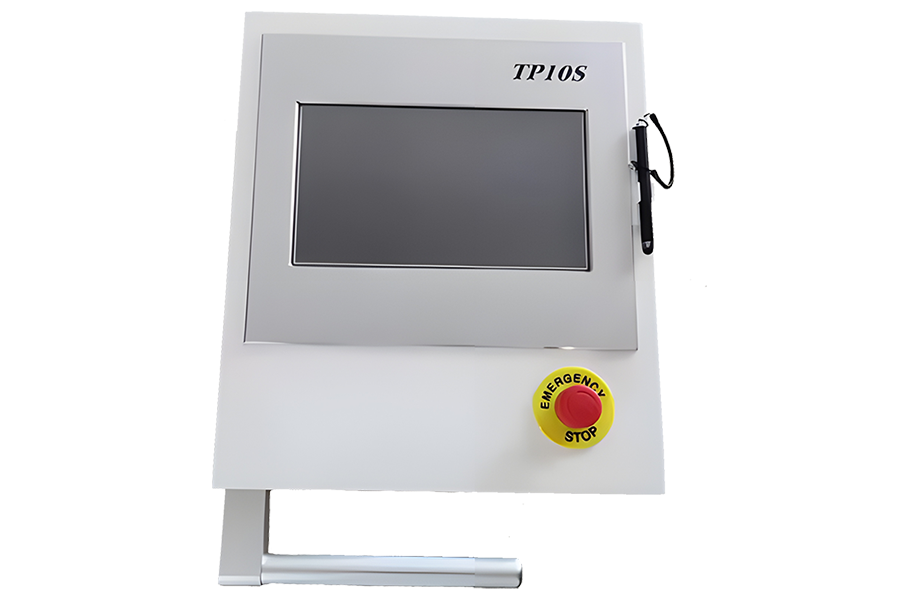

NC Hydraulic Press Brake Control System TP10S
RAM(Y axis ) control
Backgauge (X axis )control
Angle programming
Tool programming
Retract function
Up to 220 programs
Servo control
Up to 24 bends per program
Front Support Arm
The front support arms of this NC press brake hold large, long and thin sheet metal during feeding, assisting workers while ensuring maximum positioning and bending accuracy. Optional sheet follower systems are available for larger panels.
Upper Punch and Lower Die
The throat size can be customized according to customer requirements. Each press brake comes standard with a set of upper and lower press brake tooling made of 42CrMo high-strength alloy steel, capable of withstanding large bending loads and having a long service life.
Schneider Electrical Components
- Schneider electrical components give the sheet metal machine excellent operational stability and strong anti-interference capability, with superior dustproof, high-temperature and vibration resistance.
- It features comprehensive leakage and misoperation prevention capabilities, ensuring safe and standardized workshop production and meeting global export certification requirements.
- Precise control and improved processing efficiency. It achieves synchronized and coordinated operation of the back gauge, deflection compensation, and front gauge support systems, ensuring consistency in bending dimensions and angles for batches of workpieces.
- Durable and low maintenance costs.
Rexroth Valve
The Rexroth hydraulic valve gives the press brake machine highly precise pressure control, strong dual-cylinder synchronization, and zero deviation in bending angles and dimensions for batch operations.
Stable pressure and fast response, smooth and shock-free operation, excellent bending and forming effect for both thick and thin plates.
Integrated oil circuit with low failure rate, fewer interfaces to reduce oil leakage, vibration reduction and noise reduction, and greater overall machine durability.
Siemens Motor
The Siemens main motor of this hydraulic press brake operates with stable power, providing ample power for the slider’s descent, pressurization, and return. Oil delivery remains stable, ensuring bending accuracy, while also saving energy and extending the overall machine lifespan.
More Details of Hydraulic Press
Back View
Stop Finger
Linear Guide
Back gauge
Fast Clapm
Chain
Limit Switch
Oil Cylinder
NC Hydraulic Press Brake Machine Specification
| Specification | Nominal Pressure (KN) | working table Length | Throat depth (mm) | Ram stroke (mm) | Number of stroke (min 1) | Main Power (Kw) |
|---|---|---|---|---|---|---|
| 40/2200 | 400 | 2200 | 200 | 100 | 11 | 4 |
| 40/2500 | 400 | 2500 | 200 | 100 | 11 | 4 |
| 50/2500 | 500 | 2500 | 200 | 100 | 11 | 5.5 |
| 63/2500 | 630 | 2500 | 250 | 100 | 10 | 5.5 |
| 63/3200 | 630 | 3200 | 250 | 100 | 10 | 5.5 |
| 80/2500 | 800 | 2500 | 320 | 150 | 8 | 7.5 |
| 80/3200 | 800 | 3200 | 320 | 150 | 8 | 7.5 |
| 100/2500 | 1000 | 2500 | 320 | 150 | 8 | 7.5 |
| 100/3200 | 1000 | 3200 | 320 | 150 | 8 | 7.5 |
| 100/4000 | 1000 | 4000 | 400 | 150 | 8 | 7.5 |
| 125/2500 | 1250 | 2500 | 320 | 150 | 8 | 7.5 |
| 125/3200 | 1250 | 3200 | 320 | 150 | 8 | 7.5 |
| 125/4000 | 1250 | 4000 | 400 | 150 | 8 | 7.5 |
| 160/3200 | 1600 | 3200 | 400 | 150 | 8 | 11 |
| 160/4000 | 1600 | 4000 | 400 | 180 | 8 | 11 |
| 160/5000 | 1600 | 5000 | 400 | 180 | 7 | 11 |
| 160/6000 | 1600 | 6000 | 400 | 200 | 7 | 15 |
| 200/3200 | 2000 | 3200 | 400 | 200 | 7 | 15 |
| 200/4000 | 2000 | 4000 | 400 | 200 | 7 | 15 |
| 200/6000 | 2000 | 6000 | 400 | 200 | 7 | 15 |
| 250/3200 | 2500 | 3200 | 400 | 200 | 7 | 18.5 |
| 250/4000 | 2500 | 4000 | 400 | 200 | 7 | 18.5 |
| 250/6000 | 2500 | 6000 | 400 | 250 | 7 | 18.5 |
| 300/3200 | 3000 | 3200 | 400 | 250 | 7 | 22 |
| 300/4000 | 3000 | 4000 | 400 | 250 | 7 | 22 |
| 300/6000 | 3000 | 6000 | 400 | 250 | 7 | 30 |
| 300/7000 | 3000 | 7000 | 400 | 250 | 7 | 30 |
| 400/6000 | 4000 | 6000 | 400 | 250 | 7 | 30 |
| 500/6000 | 5000 | 6000 | 400 | 300 | 7 | 37 |
| 600/6000 | 6000 | 6000 | 400 | 300 | 7 | 37 |
Optional Parts
E310P
E21
Light Curtain
FAQ
What makes the TP10S WC67K configuration different?
The TP10S page is for WC67K buyers who want program-based ram and back-gauge control together with angle and tool programming. The published controller details list Y-axis ram control, X-axis back-gauge control, retract functions, servo control, storage for up to 220 programs and up to 24 bends per program. It occupies a different operating position from the simpler E21 page and from the E310P page with its color touch interface and X, Y, R and V functions.
This version is useful when a workshop repeats multi-bend jobs and wants more program organization while staying with the WC67K torsion-bar platform. The final quotation still needs to state which axes are powered and controlled, which servo hardware is included, and how compensation, tooling and guarding are configured.
What must be checked before ordering the TP10S version?
- Maximum material thickness, working length, tonnage and the typical bend sequence.
- Required program capacity, back-gauge movement, retract behavior and any R-axis requirement.
- Tooling data, crowning method, front support needs, guarding and electrical standard.
Use the E21 product page when basic stored positioning is sufficient, or compare the E310P configuration when the project needs more programmed functions. For machine-level selection, start with the seven-step press brake buyer guide.
TP10S workflow for repeat WC67K jobs
The TP10S configuration organizes work around programmed ram and back-gauge positions. A job can be stored with its bend steps, tool information and angle settings, then recalled when the same part returns to production. The published capacity of up to 220 programs and up to 24 bends per program makes this page relevant to workshops that repeat a range of multi-step parts and want less manual re-entry between batches.
Retract and servo-control functions should be reviewed together with the actual back-gauge hardware in the quotation. The controller may support a function, but the supplied machine still has to specify which movement is powered, the available travel and how the finger arrangement suits the part. The same applies to crowning, tooling and guarding, which are machine-level decisions rather than assumptions created by the controller name.
What to send for a TP10S configuration check
- A representative set of repeat parts with material, thickness, bend length and bend count.
- The required X and Y movements, retract behavior and any special gauging constraint.
- The program-recall workflow, expected batch size and changeover frequency.
- Tool profiles, compensation method, front-support needs and workshop electrical standard.
Use the E310P page when a color touch interface and X, Y, R and V functions are central to the specification. Use the E21 page when basic stored positioning is sufficient. These are distinct WC67K workflows, not interchangeable controller names.
