Press Brake Tooling: European, American and New-Standard Systems Compared

Choosing press brake tooling is not simply a matter of picking a punch and die. When comparing European, American and New Standard tooling, mounting dimensions and clamping methods determine physical compatibility. Tool height, load rating and geometry determine whether the installed tools can safely produce the required bend.

For a new press brake, the tooling system should be considered before placing the machine order. For an existing machine, replacing or adding tooling requires you to check the machine's tooling interface and the dimensions of the existing tools.

So, which system is right for your application? And can European, American and New-Standard tooling be used interchangeably?

This guide compares the three common press brake tooling systems, explains their key differences and compatibility, and shows you how to choose the right tooling based on your machine, material, and bending requirements.

What Is European Press Brake Tooling?

European press brake tooling is a commonly used tooling system for press brakes, particularly in Europe and on many modern press brakes worldwide. It uses a standardized-style punch mounting interface and matching lower dies, allowing punches and dies to be installed, removed, and combined for different bending applications.

A typical European tooling setup consists of:

• Upper punch — mounted to the press brake's upper beam or punch holder

• Lower die — mounted on the machine table

• Tool holder / clamping system — secures the punch and die

• V-die opening — determines the bending geometry and affects the required bending force

One of the main characteristics of European tooling is its modular design. Different punches and dies can be combined according to the material thickness, bend angle, inside radius and part geometry. Segmented tooling is also commonly available, which allows operators to create different tool lengths for short or complex work pieces.

Important: “European tooling” describes a tooling system/interface rather than simply where the tooling is manufactured. A press brake made outside Europe can also be configured with European-style tooling.

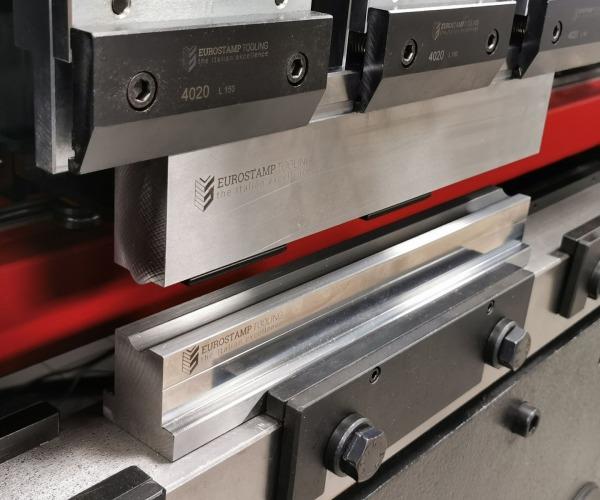

European-style tooling example. Verify the holder and tang dimensions for the actual machine.

What Is American Press Brake Tooling?

American press brake tooling is a press brake tooling system traditionally associated with machines used in North America. It uses a different punch mounting interface, tool dimensions, and clamping arrangement from the commonly used European-style system.

A typical American tooling setup includes:

• Upper punch — mounted to the upper beam through an American-style holder or clamp

• Lower die — installed on the press brake table or die holder

• Tool holder / clamp — secures the punch and allows it to be positioned correctly

• V-die opening — selected according to the material thickness, bend radius and application

One important characteristic is that American tooling comes in several configurations, so it should not be treated as one universal dimension standard. The exact punch shank, holder dimensions, die style and clamping method can vary depending on the tooling manufacturer and press brake.

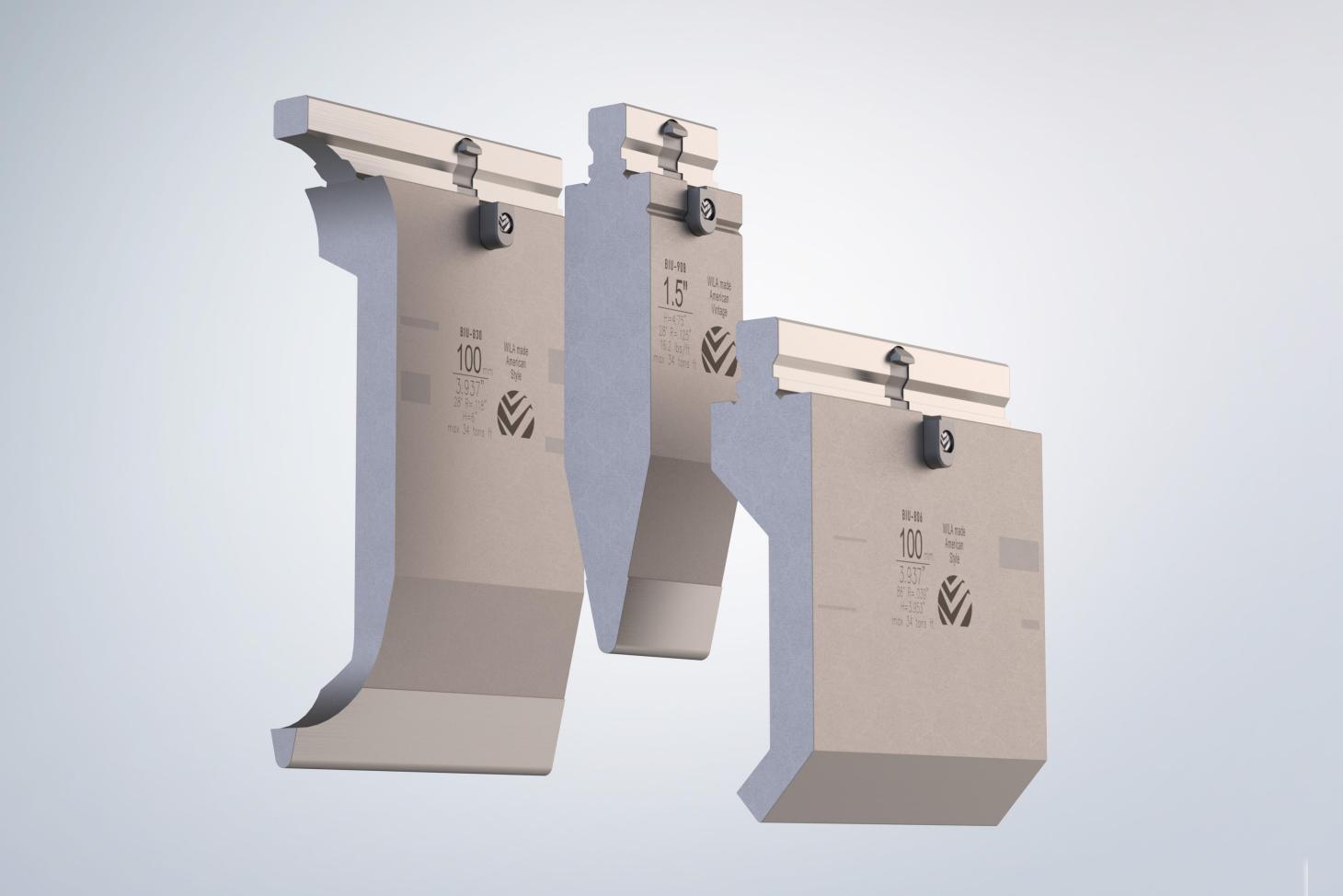

American-style tooling example. A mounting-interface drawing is needed to establish compatibility.

What Is New-Standard Press Brake Tooling?

New Standard commonly refers to the WILA tooling interface and product family, including New Standard Premium and New Standard Pro. Compatible WILA-style tools are also sold by other manufacturers. It is a specific interface family, not a generic name for every modern quick-clamping system.

Check the exact tang profile, locating surfaces, safety mechanism and compatible holder. A quick clamp, a CNC control or segmented tooling does not by itself establish New Standard compatibility.

Typical features may include:

• Quick clamping — speeds up punch installation and removal.

• Segmented tooling — allows operators to combine different tool lengths for different workpieces.

• Improved tool holders — designed for easier positioning and setup.

• CNC press brake compatibility — commonly used with modern CNC machines.

• Reduced setup time — particularly useful for small-batch or high-mix production.

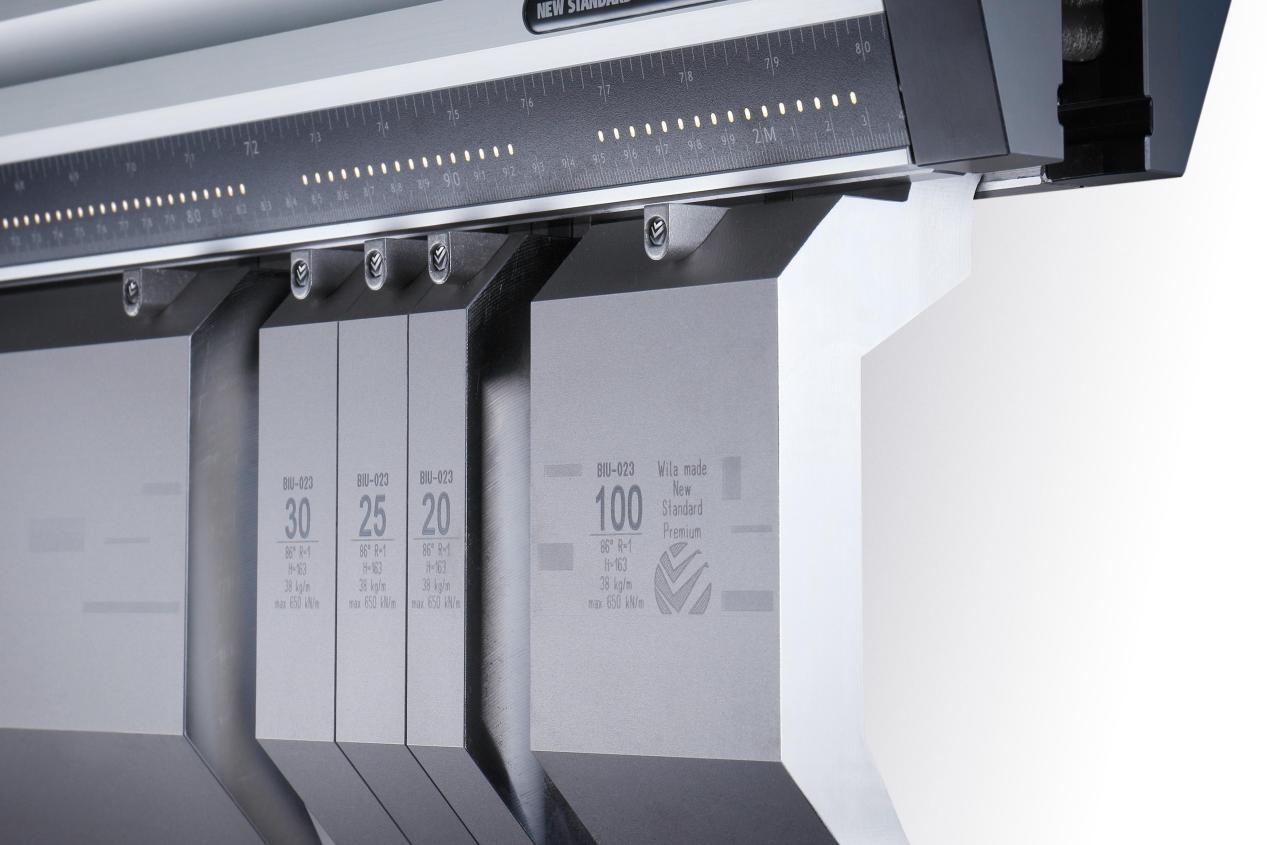

WILA New Standard tooling example; segmentation and quick clamping alone do not define this interface.

European vs. American vs. New-Standard Tooling

Tool Height, Clamping and Compatibility: Can You Reuse Your Existing Tooling?

When buying a new press brake, one question is often overlooked:

Can you reuse the punches and dies you already have?

In many cases, existing tooling can be reused—but physical fit alone is not enough. The tooling must also match the machine's clamping system, tool height, load capacity, working stroke, die opening and bending requirements.

Before assuming your existing tooling is compatible, check the following five points.

Step 1 — Check the Punch Interface

The first question is simple:

Can the existing punch physically fit into the machine's upper clamping system?

Different press brakes may use different punch mounting systems, such as:

• European-style tooling

• American-style tooling

• WILA / New Standard interface

• Custom or proprietary clamping systems

Check the following dimensions:

• Punch shank / mounting profile

• Mounting width

• Clamping height

• Locating shoulder

• Clamping groove

• Safety locking position

For example, an existing European-style punch may be perfectly usable on another press brake if the new machine uses a compatible European-style upper clamping system. However, similar-looking tooling does not automatically mean interchangeable tooling.

Step 2 — Check the Die Mounting

The same principle applies to the lower die.

A punch may fit the upper clamp while the corresponding die cannot be properly installed on the machine table.

Check:

• Die mounting width

• Die base dimensions

• Die holder type

• Locating method

• Clamping method

• Die height

• Machine table configuration

Some machines use a standard die table, while others may be equipped with:

• Multi-V dies

• Quick-change die holders

• Hydraulic clamping

• Mechanical clamping

• Special die adapters

This is why tooling compatibility should be checked as a complete system, not punch and die separately.

A useful rule: The punch, die, upper clamp and lower table must work together as one tooling system.

Step 3 — Check Tool Height

This is one of the most important—and most frequently overlooked—points.

Two punches may have the same mounting interface but different tool heights.

And tool height can directly affect the machine's available working range.

Tool height can influence:

• Machine open and closed positions

• Bending depth

• Stroke requirement

• Available flange length

• Interference between the punch and die

• Whether the required bending angle can be achieved

For example, suppose your existing punch is significantly taller than the standard tooling supplied with the machine.

It may still physically fit into the upper clamp. However, a taller tool combination reduces the available gap for loading and removal and changes the required ram position. A shorter combination may require more ram travel to reach the bend. Check both against the actual machine geometry.

Likewise, a tooling combination that is too tall may reduce the available space between the punch and die.

Therefore: A tooling interface tells you whether the tool can be mounted. Tool height tells you whether it can actually work.

Step 4 — Check Maximum Tooling Load

This is where “it fits” and “it is safe to use” become two different questions.

Every punch and die has a maximum allowable load.

The machine also has a maximum bending force.

These values need to be considered together.

For example, a press brake may have sufficient tonnage for a particular bending job, but the selected punch or die may have a lower allowable load.

In that situation, simply installing the tooling because it physically fits could create a safety problem.

Check:

• Maximum allowable tooling load

• Load per unit length

• Machine bending force

• Material thickness

• Material strength

• Die opening

• Bending length

• Load distribution along the tooling

Step 5 — Check V-Opening and Bending Geometry

Even if the tooling can be mounted safely, you still need to ask:

Will this tooling produce the required bend?

This is where tooling geometry becomes critical.

Check at least these parameters:

Check Open Height, Stroke and Loading Clearance

There is another parameter worth checking separately:

Open height and usable stroke

Open height or daylight describes the available space with the ram open, using the machine maker’s stated reference surfaces. Stroke describes ram travel. These are different from the machine’s closed-position dimensions, and supplier terminology can vary.

A tooling combination may therefore pass the basic mounting test but fail the working-range test.

A proper compatibility check should consider:

Available opening − installed punch, die and holder heights = remaining loading clearance, when all dimensions use the same reference surfaces. Also verify that the ram can reach the required bending position without a collision.

This becomes especially important when customers want to reuse:

• Tall special punches

• Gooseneck punches

• Radius punches

• Multi-V dies

• Custom tooling

• Segmented tooling

Tooling Compatibility Is More Than Standard Dimensions

When comparing quotations, ask for the tooling-interface drawing rather than relying on the label “European standard.”

Customers often think: “My punch is European standard, so it should fit every European-style press brake.”

That's not necessarily enough. Even when two machines use the same general tooling standard, differences may exist in:

• Clamping dimensions

• Tool height

• Adapter requirements

• Die table configuration

• Available stroke

• Open height / daylight

• Tool load capacity

• Safety locking method

Therefore, standardization improves compatibility, but does not eliminate the need for verification.

Physical fit does not always mean functional compatibility. A tool may fit the clamp but still be unsuitable because of its height, load capacity, stroke requirements or bending geometry.

If you already have punches and dies, send us the tooling drawings or dimensions before ordering a new press brake. We can check the interface, tool height, load capacity and bending geometry to determine whether your existing tooling can be reused.

Compare BEIGEMA’s press brake tooling options with your existing interface drawings.

Once the tooling geometry is established, estimate the job’s force with the press brake tonnage calculator and check all component load limits.

Common Questions

Can different tooling systems be mixed with adapters?

Sometimes, with an approved adapter. Check the interface, extra tool height, alignment, retention and the load rating of the complete assembly before use.

Does New Standard mean any quick-change tool?

No. Confirm the named interface and tooling drawing; quick clamping alone does not establish compatibility.
