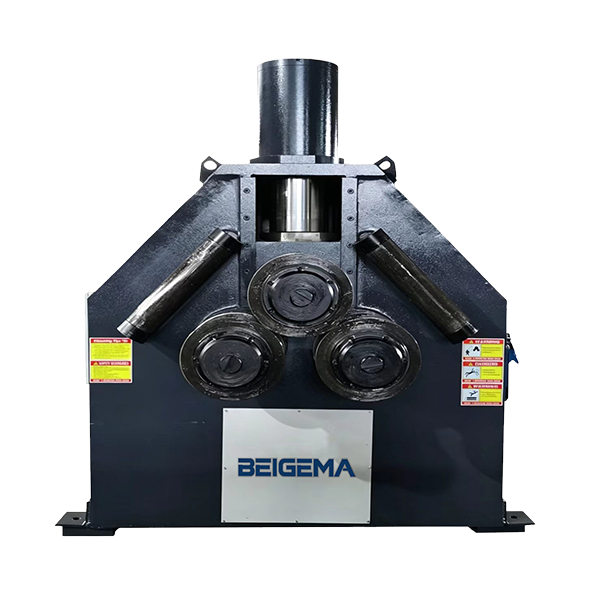

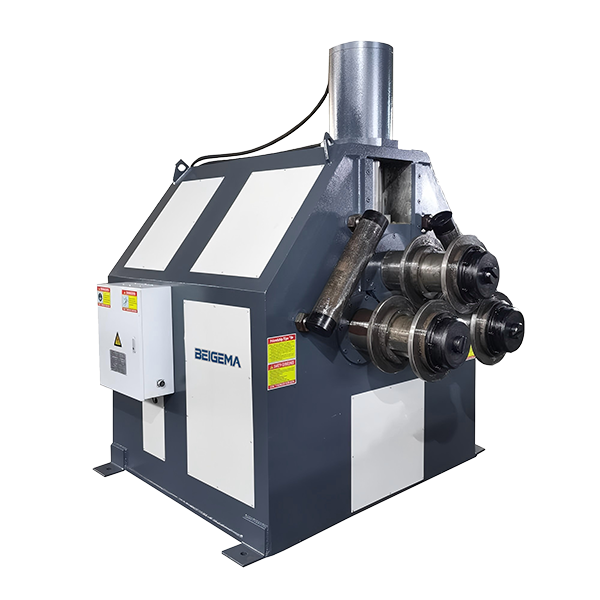

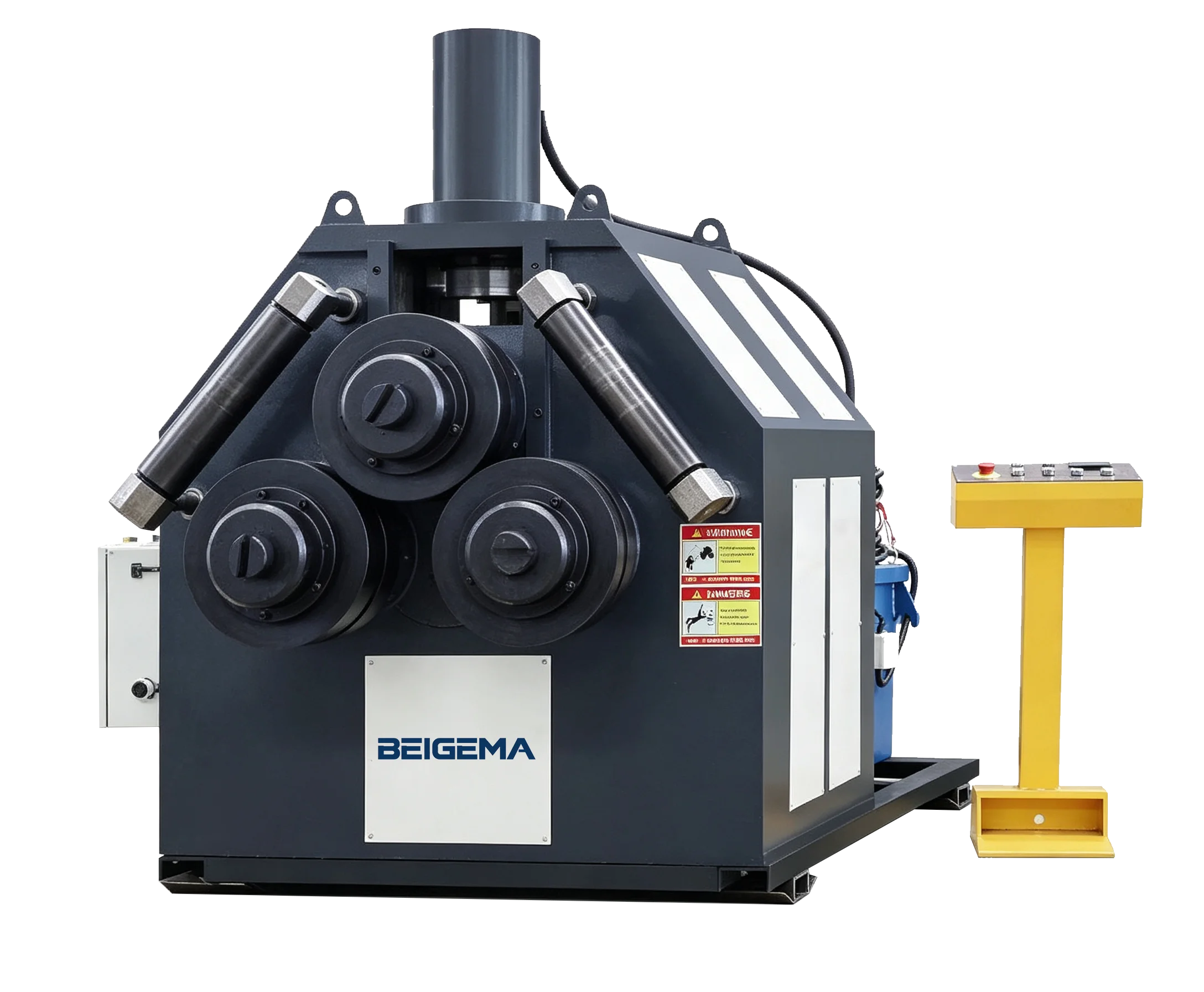

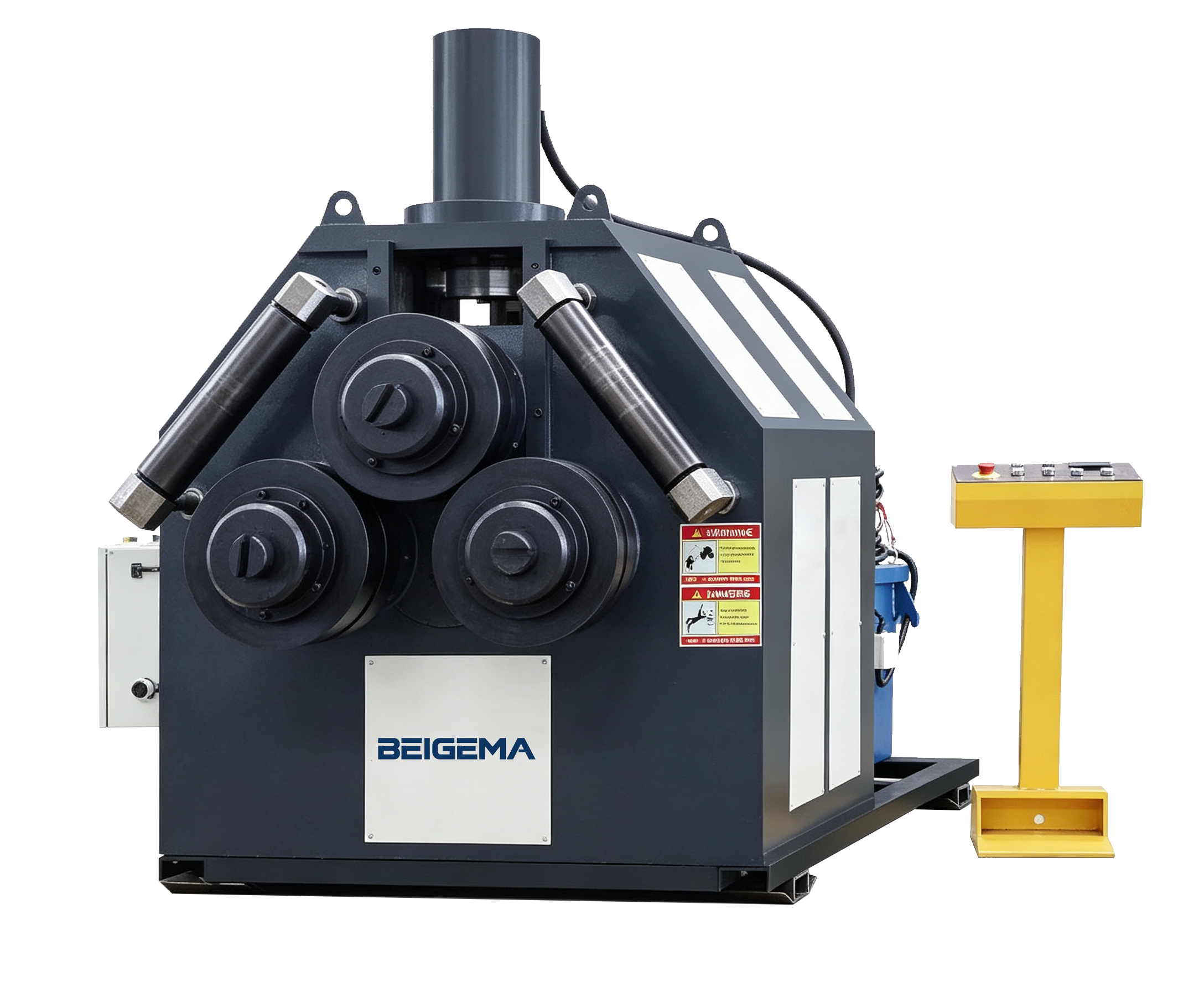

WYQ24 Series Half Hydraulic Profile Bending Machine

Three-roll active drive structure: Enables rolling and straightening processes to be completed in a single feeding operation, resulting in high forming efficiency.
Side roller straightening device: Effectively controls the torsional deformation of asymmetrical profiles (angle steel, channel steel, etc.), ensuring bending accuracy.

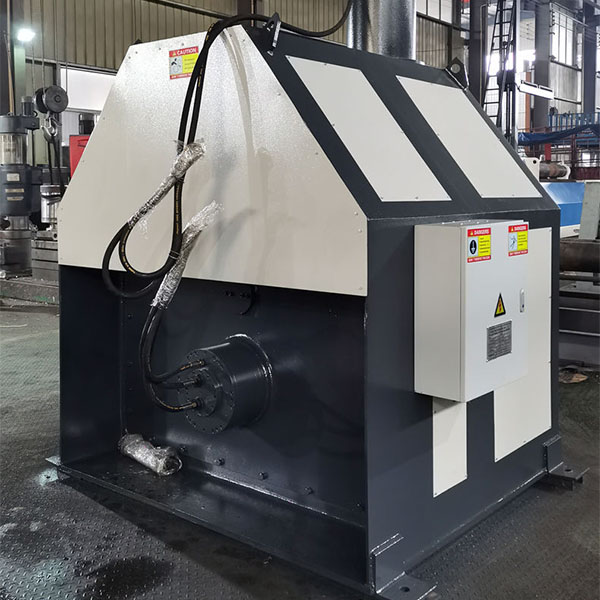

Semi-hydraulic power combination: Upper roller pressure is provided by a hydraulic cylinder, and roller rotation is driven by a hydraulic motor.

Browse all rolling and profile bending machines, or the fully hydraulic W24S profile bending machine.

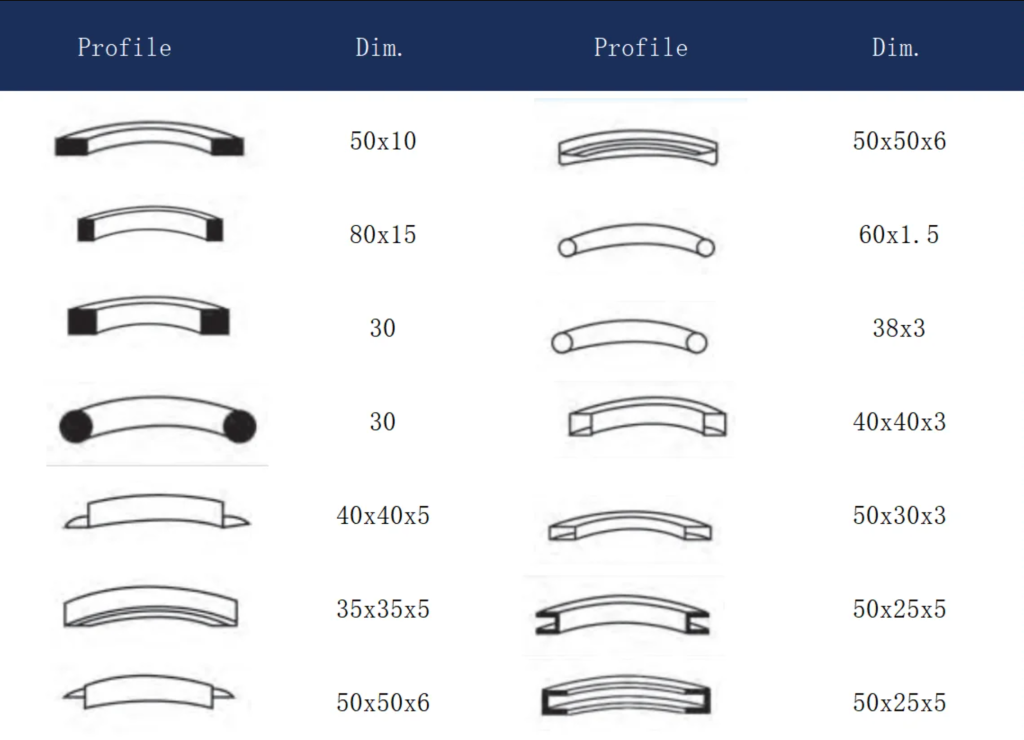

The WYQ24 is a semi-hydraulic angle roll machine (also called a section bending machine) for rolling angle steel, channels, pipe and flat bar into arcs and rings.

Configuration note: Controller, axes, working range, tolerances and included components must be confirmed in the signed technical quotation for the selected machine.

Information needed for a WYQ24 quotation

The model name alone is not enough to define a profile-bending machine. Send the section type and drawing, material grade, maximum dimensions, minimum bending radius, required output and any preferred roll orientation or feeding method. Those inputs allow the working range and roller arrangement to be checked for the actual project.

The capacity table for this page is pending machine-specific confirmation. Final shaft dimensions, roller diameters, drive arrangement, motor power, tolerances, included tooling and optional supports must be recorded in the signed technical quotation. Until those values are confirmed, do not treat specifications from another W24S or plate-rolling model as interchangeable with this WYQ24 configuration.
