Upon receiving manufacturing drawings, many customers often wonder: “Which model of plate rolling machine do I need to achieve the desired rolling diameter?”
The short answer is: the smallest reliable cylinder is set by top-roll diameter, plate thickness, width, material and the machine’s pre-bending method. A common planning band for carbon steel is about 1.1 to 1.5 times the top-roll diameter. Tighter results need a shorter plate across the rolls, more passes and a machine that can still keep the roll stiff. Confirm inside diameter, outside diameter and bending radius separately before you choose a model.
Quick Answer: How Small Can a Plate Roll Go?
Use the top-roll diameter as the first screen, then worsen the ratio for thicker plate, full-width work, stainless, stronger alloys and machines with weak pre-bending. Bending radius is half the diameter if the shop is talking about the same circle. Say whether the drawing dimension is inside diameter or outside diameter; a 4 mm wall on a small shell is a large share of the diameter.
- Write the target as ID or OD, plus thickness, width, material and yield.
- Screen with Dmin ≈ k × Dtop, then verify on the exact model, not with a universal constant.
- A smaller top roll helps only if the roll still has enough stiffness and the machine still has enough force.
- Pre-bending quality often decides whether the cylinder closes, even when the mid-body diameter looks correct.
- State the allowed remaining flat and ovality. A diameter that is reachable in the middle can still fail at the ends.
- If the part is a cone, send both diameters, the angle and the length. Do not use a cylinder ratio for cone work.
Factors That Change Minimum Rolling Diameter
The rolling diameter (or minimum rolling diameter) is not determined solely by plate thickness; rather, it is the result of a combination of factors, including the material, plate specifications, equipment structure, and processing method.
1. Material: Mild steel, stainless steel and aluminium do not form the same way. Higher yield usually means more springback and a larger finished diameter after the load comes off. Hardness and elongation also change how far the outer fibre can stretch before the surface marks or cracks.
2. Plate thickness: Thicker plate is stiffer. The outer fibre stretches more for the same radius, so the practical minimum diameter grows with thickness even on the same top roll.
3. Plate width across the rolls: A wider plate loads the top roll over a longer face, so deflection grows. Full-width work usually needs a more conservative diameter than a short blank on the same machine.
4. Top-roll diameter: A smaller top roll can form a smaller circle, but it also bends more under load. An undersized roll may never hold the target radius on thick or wide plate.
5. Pre-bending: Without useful pre-bending, the middle of the plate becomes a circle while both ends stay flat. The shop then either accepts a long remaining flat or cuts and welds more material.
6. Roll gap and pass schedule: A shorter span between rolls helps small diameters. Several controlled passes usually beat one heavy pass. Too much speed or too little pressure leaves springback and a larger finished diameter.
7. Springback: After the rolls open, some of the elastic strain returns. Stainless and some aluminium tempers spring more than mild steel, so the operator must over-bend to the drawing diameter.
Relationship Between Minimum Diameter and Top-Roll Diameter
Typically, the calculation can be estimated based on 1.5 times the diameter of the top roll. If multiple rolling passes are used, or if the material length is less than the plate rolling machine’s maximum full-width capacity, a rolling result of 1.3 times the top roll diameter can be achieved.
Keep that as a planning estimate, not a guarantee. A useful way to write it is Dmin = k × Dtop, with k often between 1.1 and 1.5 for milder carbon steel and higher for harder or springier materials. Many buyers think “a smaller top roll automatically means a smaller cylinder.” In practice the top-roll diameter is only the geometric limit. If the roll is too slender for the thickness and width, it deflects, the radius opens and the machine may never reach the drawing.
Worked screen from the customer example: a 4 × 2000 mm CNC 4-roll with a 160 mm top roll. That top-roll size matches the published W12-4×2000 row. For 2–4 mm plate, a 1.0–2.0 × Dtop screen is about 160–320 mm. Use it to see whether the drawing is near the machine’s limit, then confirm with the exact material, width and remaining-flat limit.

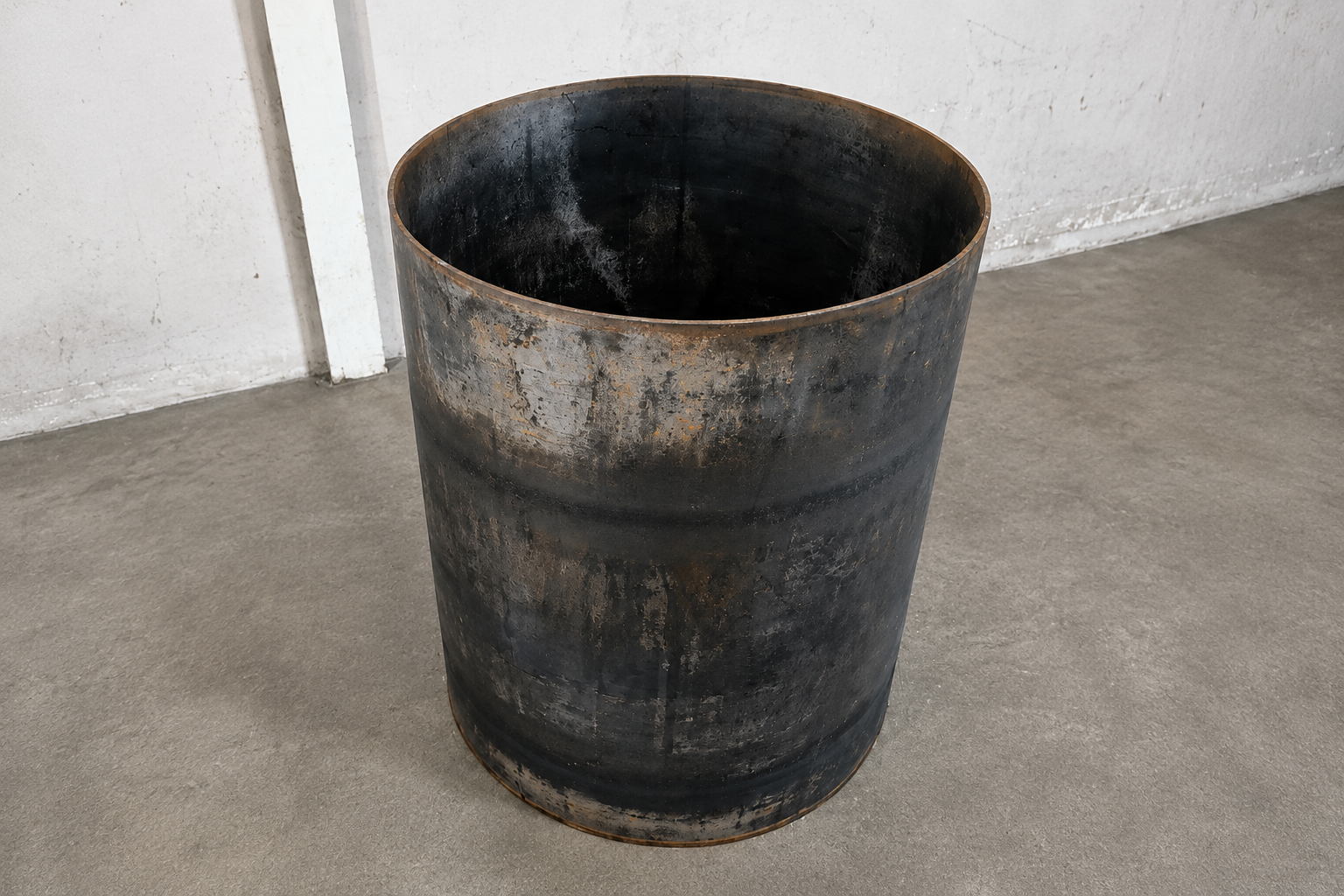

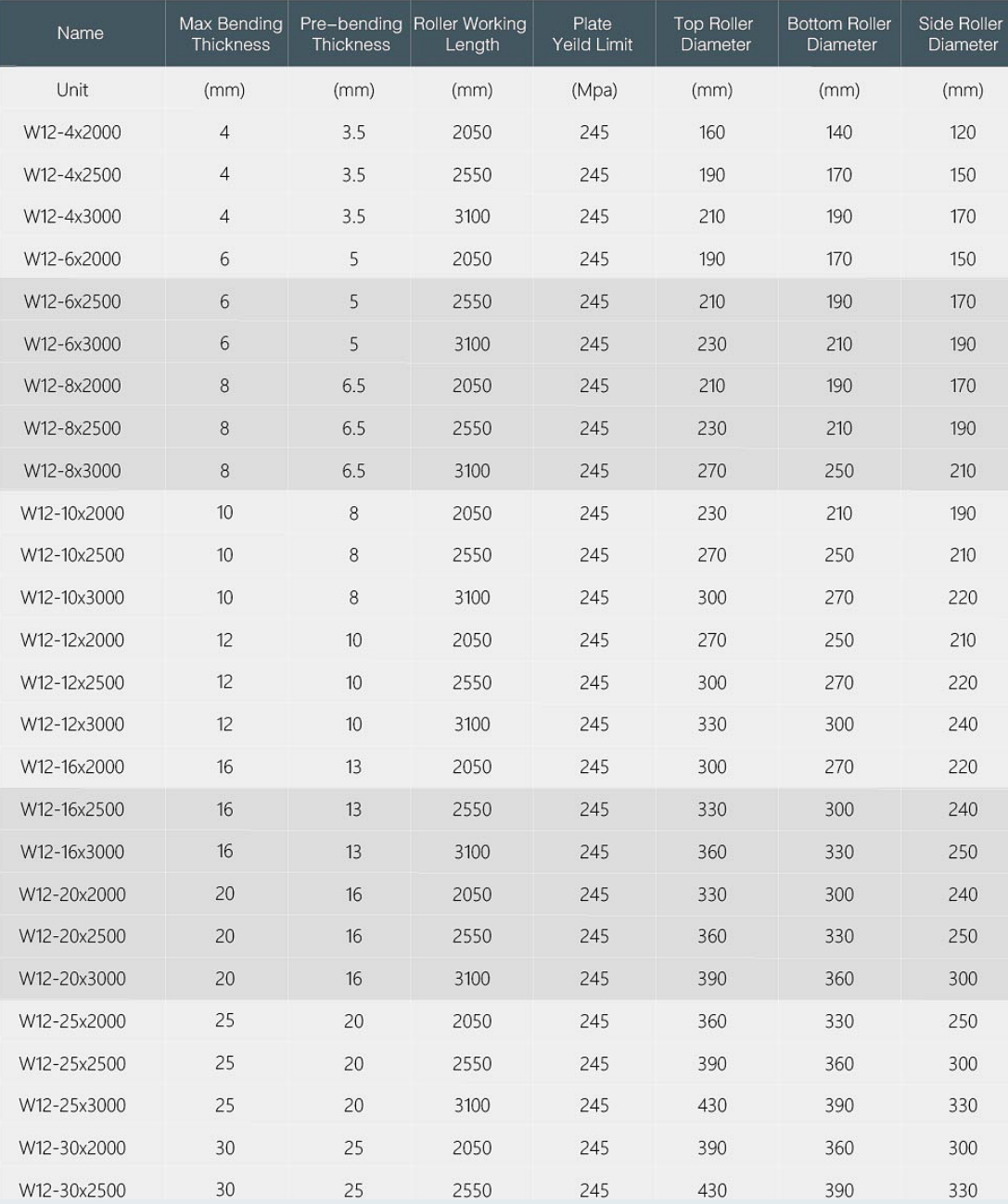

The live W12 page publishes W12-4×2000 through W12-50×2000 at 2050 mm working length, with W12-4×2000 at 4 mm rolling thickness, 3.5 mm pre-bending thickness and a 160 mm top roll. If a quotation uses a 2500 mm or 3000 mm model from the customer table, ask for that model’s current drawing rather than copying a 2000 mm row.
Open the current W12 4-roll plate rolling machine table before you treat any row as the purchased machine.
Planning Ratios by Material
For rolling results with other materials, please refer to the table below.
| Material | Planning Dmin / Dtop | How to read it |
|---|---|---|
| Low-carbon steel Q235 / A36 | 1.0–1.5 × Dtop | The low end needs shorter width, more passes and enough pre-bending. Full-width work is usually nearer 1.4–1.5. |
| 304 stainless steel | 1.3–2.0 × Dtop | Higher strength and springback. Over-bend and then measure the relaxed diameter. |
| 316 stainless steel | 1.5–2.2 × Dtop | Treat as harder to close than 304 unless the mill certificate says otherwise. |
| Aluminium plate | 1.5–2.5 × Dtop | This is a conservative shop screen. Alloy and temper matter; thin plate can wrinkle before it reaches a tight radius. |
These ratios are the customer’s screening table, not a laboratory law. They assume the machine still has force, roll stiffness and pre-bending left. If two rows overlap, send the mill certificate and the drawing instead of arguing about the midpoint.
How Machine Type Changes the Smallest Cylinder

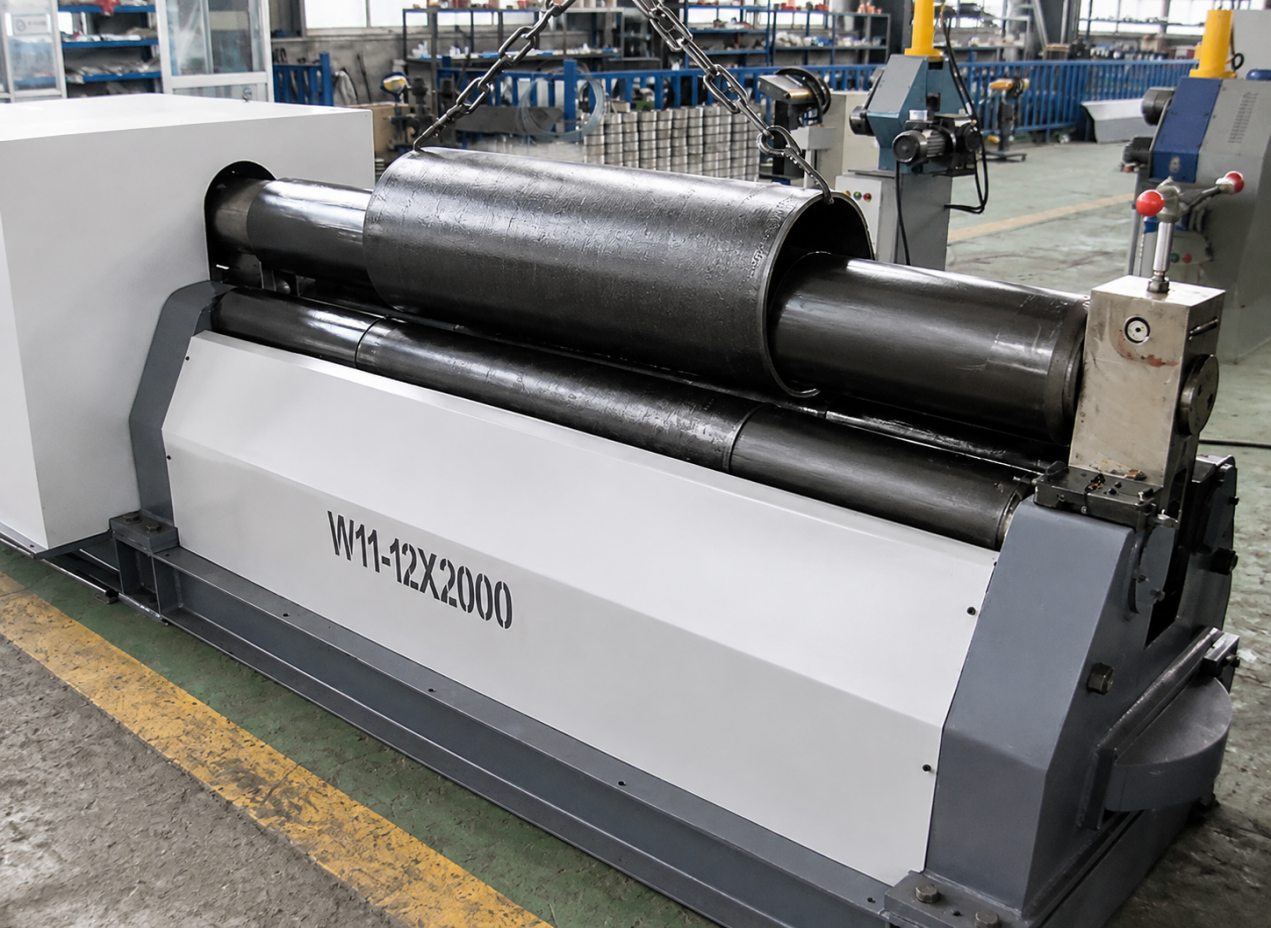

Three-Roll Plate Bending Machine
Minimum rolling inner diameter: Can reach 1.2–1.5 times the diameter of the top roll.
On a symmetrical 3-roll machine the top roll moves down while the two bottom rolls drive and support the plate. That geometry is simple, but both ends usually need a separate pre-bend. The plate is often taken out and turned, so small-diameter batch work is slow. An asymmetrical 3-roll can pre-bend one end without that flip, yet it still trails a universal or 4-roll machine when the same small shell needs many forming passes.
See the published W11 3-roll plate rolling machine for current top-roll diameters on the symmetrical series.

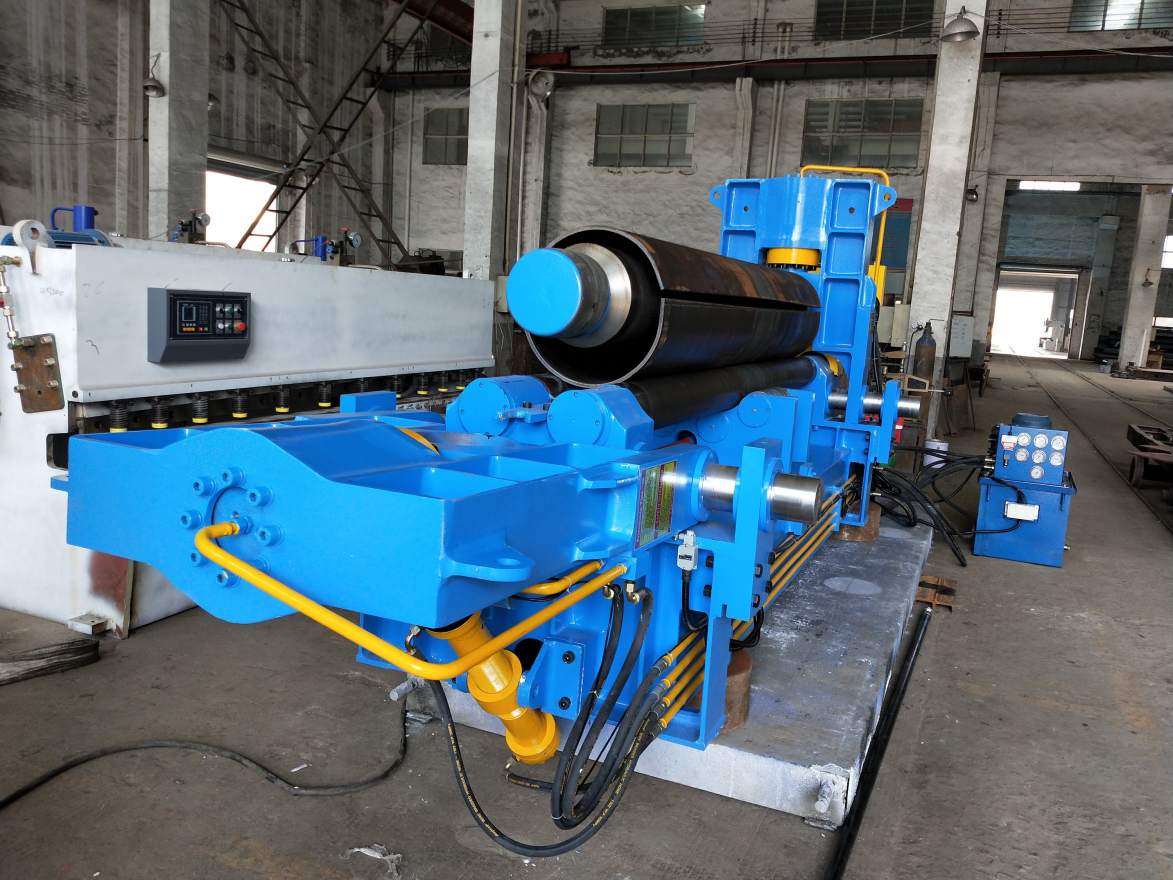

Universal Top-Roll Plate Bending Machine
Minimum rolling inner diameter: Can reach 1.2–1.3 times the upper roll diameter, enabling the forming of cylinders with smaller radii.
The top roll can lock while the side and bottom rolls move to shorten the forming span. That is why this layout is often chosen for thicker plate and a shorter remaining flat. The minimum diameter is still limited by the top-roll diameter and by roll deflection under load. A W11S may be sold with NC or CNC positioning; do not write CNC into the purchase unless the quotation includes it.
Compare pre-bending thickness and top-roll diameter on the W11S universal plate rolling machine.
Four-Roll Plate Bending Machine
Minimum rolling inner diameter: Can reach 1.1 to 1.2 times the diameter of the top roll.

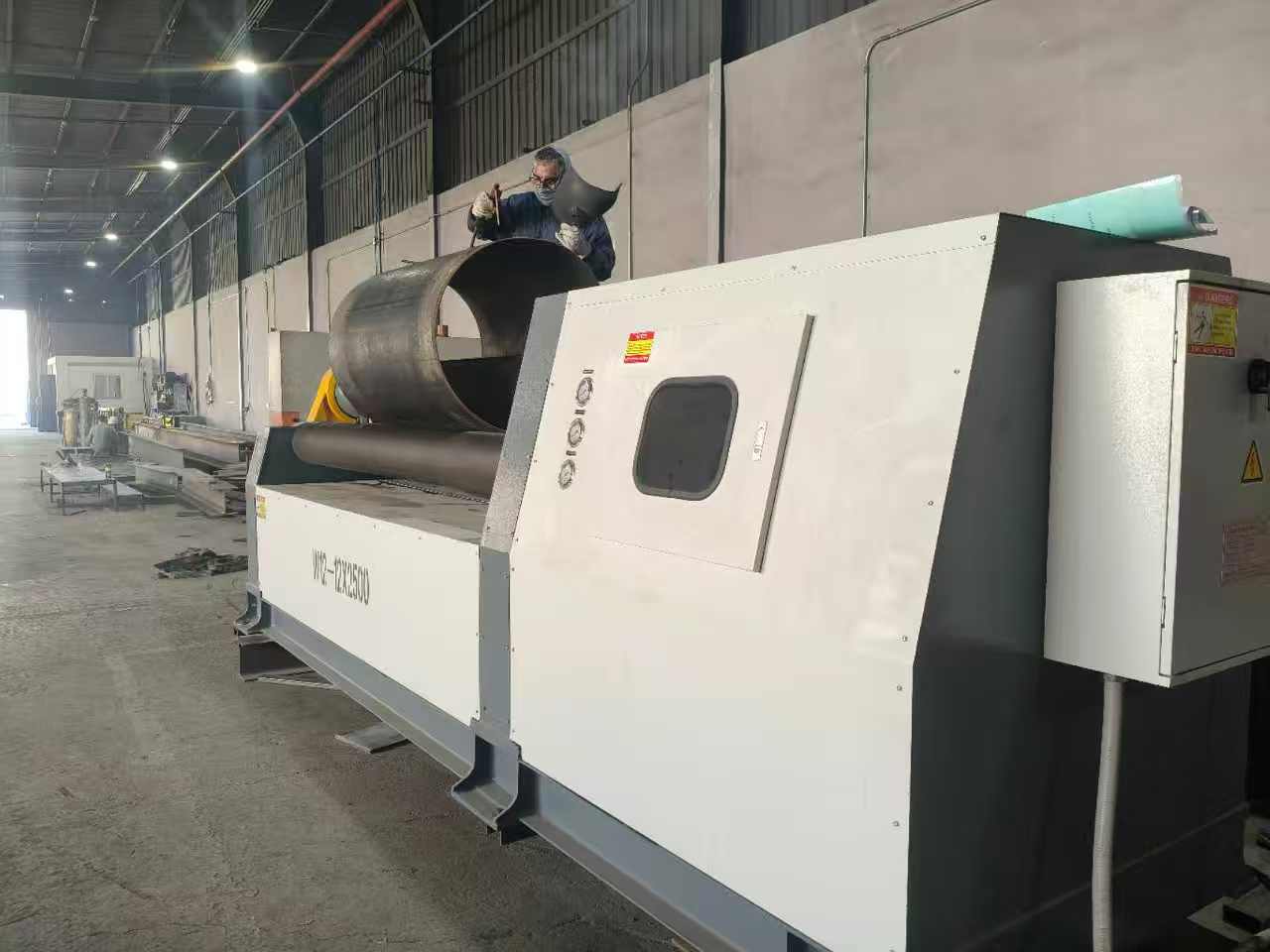

The plate is clamped between the top roll and the lower roll, then the two side rolls bend each end and the body in one setup. That is why 4-roll machines are strong on small- and medium-diameter repeat work. Clamping reduces slip; it does not make slip impossible if the surface is oily, the clamp force is low or the pass is too aggressive. The customer photo below shows a W12-12×2500 in production. Use the quoted drawing for that exact width; the public table currently highlights the 2000 mm series.
The process comparison is in the 3-roll vs 4-roll plate rolling machine guide.
How to Choose Among These Machines
| Item | Mechanical 3-roll | Universal top-roll | 4-roll |
|---|---|---|---|
| Relative price | Low | Medium | High |
| Pre-bending | Average; often needs turning on symmetrical models | Good | Excellent, usually one setup |
| Minimum diameter | Larger planning ratio | Smaller than basic 3-roll | Smallest common planning ratio |
| Heavy plate | Good on large rolls | Often the best 3-roll choice | Good, if the model is sized for it |
| Cone rolling | Average | Average | Usually the strongest option |
| Automation | Low | Medium, NC or CNC by quote | High when CNC is included |
| Batch cylinders | Average | Good | Best for repeat small and medium shells |
The smallest achievable rolling diameter is not determined by the top roll diameter alone. Material properties, plate thickness, pre-bending capability, and machine structure all play a critical role in determining the final forming result.
A machine that rolls large carbon-steel shells well can be the wrong tool for a small stainless cylinder. Choose the type after the drawing’s diameter, material and output are written down.
Start from the plate rolling machine range, then send the drawing pack to
contact BEIGEMA so an engineer can check the diameter before you buy.
What to Send Before Anyone Confirms a Diameter
- Material grade, temper if aluminium, and yield or tensile values from the mill certificate.
- Thickness, width across the rolls, blank length and rolling direction.
- Finished inside diameter, outside diameter, length and the allowed remaining flat.
- Whether the part is a cylinder, cone, or a radius that is not a full circle.
- Batch size, ovality or seam-gap limit, and whether the ends will be welded after rolling.
- Any existing machine model you want checked, including top-roll diameter if known.
Frequently Asked Questions
Is the minimum rolling diameter the same as the bending radius?
No. Diameter is twice the radius. A 300 mm inside diameter is a 150 mm inside radius. Say ID or OD as well, because wall thickness sits between those two numbers.
Can I always reach 1.1 times the top-roll diameter?
No. That end of the range is for easier materials, shorter width, several passes and a machine with enough stiffness and pre-bending. Full-width stainless or thick plate should be screened with a larger ratio.
Why does the aluminium row look worse than carbon steel?
The customer table is a conservative screen. Some aluminium alloys spring or wrinkle before they take a tight radius. Use the mill certificate and a trial radius instead of copying a carbon-steel result.
Does a smaller top roll always give a smaller cylinder?
Only if the roll still stays round under load. A roll that is too small for the thickness and width deflects, so the finished diameter opens again.
Which BEIGEMA series should I look at first?
Use W11 for simpler symmetrical 3-roll work, W11S when pre-bending and thicker plate matter, and W12 when you need one-setup pre-bending and repeat cylinders. The drawing still decides the model inside that series.
Check the Drawing Before You Choose the Model
Choosing the right plate rolling machine means balancing your required diameter, material type, production volume, and forming accuracy.
The ratios and machine bands above are for screening. The purchase decision still needs the exact material, width, diameter and remaining-flat limit checked against a named model. Send the drawing and mill data before the deposit if the cylinder is close to the top-roll limit.
