In sheet metal processing, the correct plate rolling machine affects product quality, production efficiency and long-term cost.
The selection should start with the finished parts, not a catalogue model. Define material grade and yield strength, thickness range, maximum working width, target inside diameter, pre-bending and flat-end requirement, tolerances, batch size, cone work, handling method and site utilities. Then ask every supplier to rate a specific configuration against the same RFQ revision.

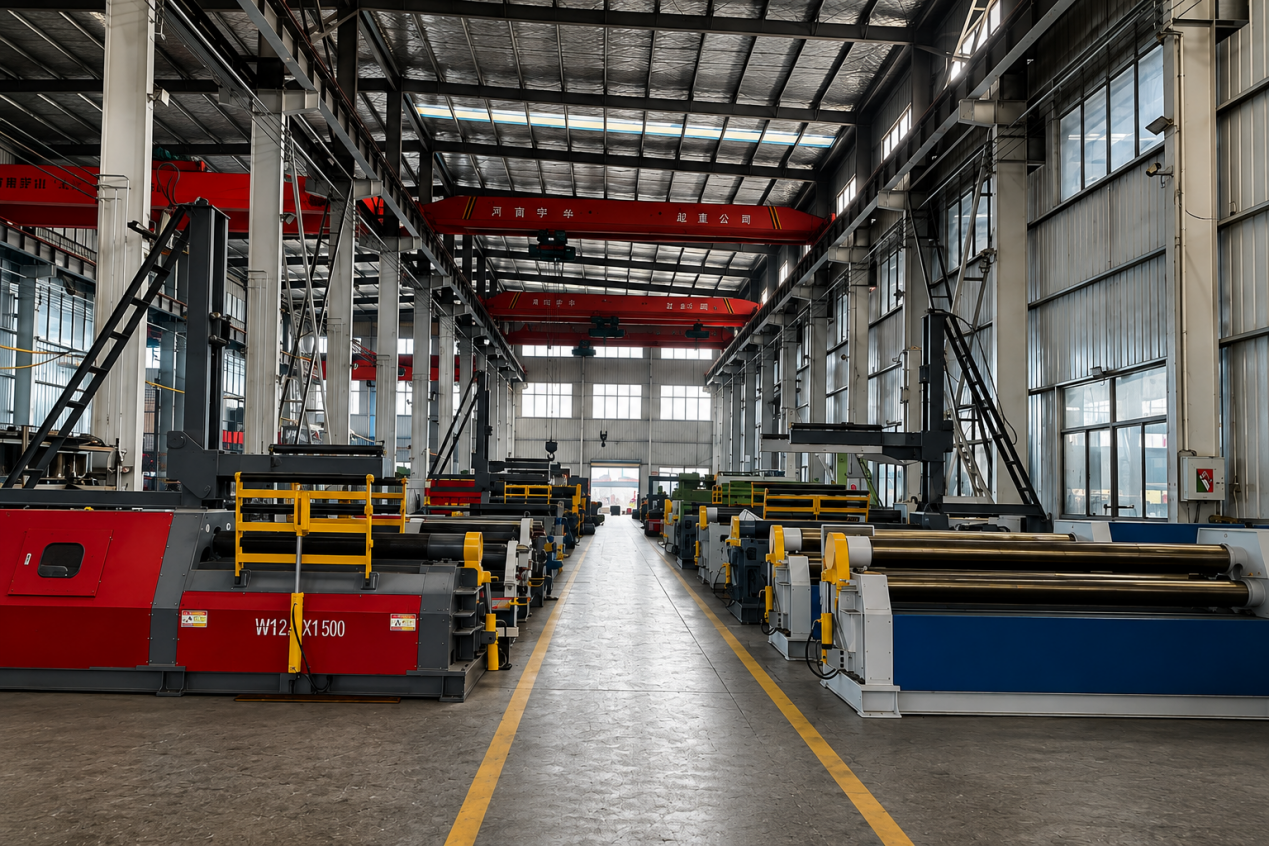

Figure 1. Plate rolling machines in production. Similar overall size does not mean identical material, diameter or pre-bending capacity.
Quick Answer: The Seven Checks That Decide the Machine
| Check | Buyer input | Supplier must state |
|---|---|---|
| 1. Material | Grade, condition and yield strength. | Capacity basis and any derating. |
| 2. Thickness | Minimum, normal and maximum; rolling and pre-bending needs. | Rated rolling thickness and separate pre-bending thickness. |
| 3. Width | Maximum actual width across the rolls. | Full-width and reduced-width capacity, usable roll length. |
| 4. Diameter | Target inside diameter and allowed flat. | Verified minimum diameter for the stated job. |
| 5. Accuracy | Roundness, taper, straightness and repeatability. | Control, feedback, crowning and test method. |
| 6. Output | Batch size, shifts, changeovers and cycle target. | Handling, speed, automation and unloading package. |
| 7. Ownership | Site power, skills, service window and spare-parts plan. | Utilities, training, warranty, support and exclusions. |
1. Start with Material Grade and Yield Strength
Material, thickness and strength must be confirmed first because plates with the same dimensions can require different forming force.
Use yield strength, not only a material family name. Some stainless grades have a higher yield strength than the carbon-steel basis used in a capacity table; others may not. Aluminum, quenched-and-tempered plate and work-hardened material also vary widely. Ask the supplier to state the table’s reference yield strength and show how the proposed model is derated for the actual grade and width.
- Provide the material standard, grade, thickness tolerance and condition, not just ‘mild steel’ or ‘stainless’.
- Identify plates with high residual stress, cladding, protective surfaces or direction-sensitive properties.
- Ask whether the rating assumes full width and whether pre-bending uses a lower thickness limit.
2. Separate Rolling Thickness from Pre-Bending Thickness
Maximum rolling thickness describes the middle of a plate under a stated diameter, width and material basis. Pre-bending thickness describes what the machine can form near the plate end, where the leverage and support geometry are different. These figures are not interchangeable. A quote should show both for the selected model.
Do not buy a machine that operates at its headline maximum on every normal job. The engineering margin should cover real material variation, normal wear and the production mix, but an arbitrary percentage is not a substitute for a model-specific capacity calculation.
3. Match Working Width and Roll Deflection
The working rolls must cover the maximum plate width without allowing the sheet to extend beyond the effective forming area.
Longer plates increase total load and roll deflection. Ask for the usable working length, not only the overall roll length, and state whether the quoted capacity is full width or reduced width. For long, thin cylinders, roll crowning, frame stiffness and side support can matter as much as the nominal thickness.

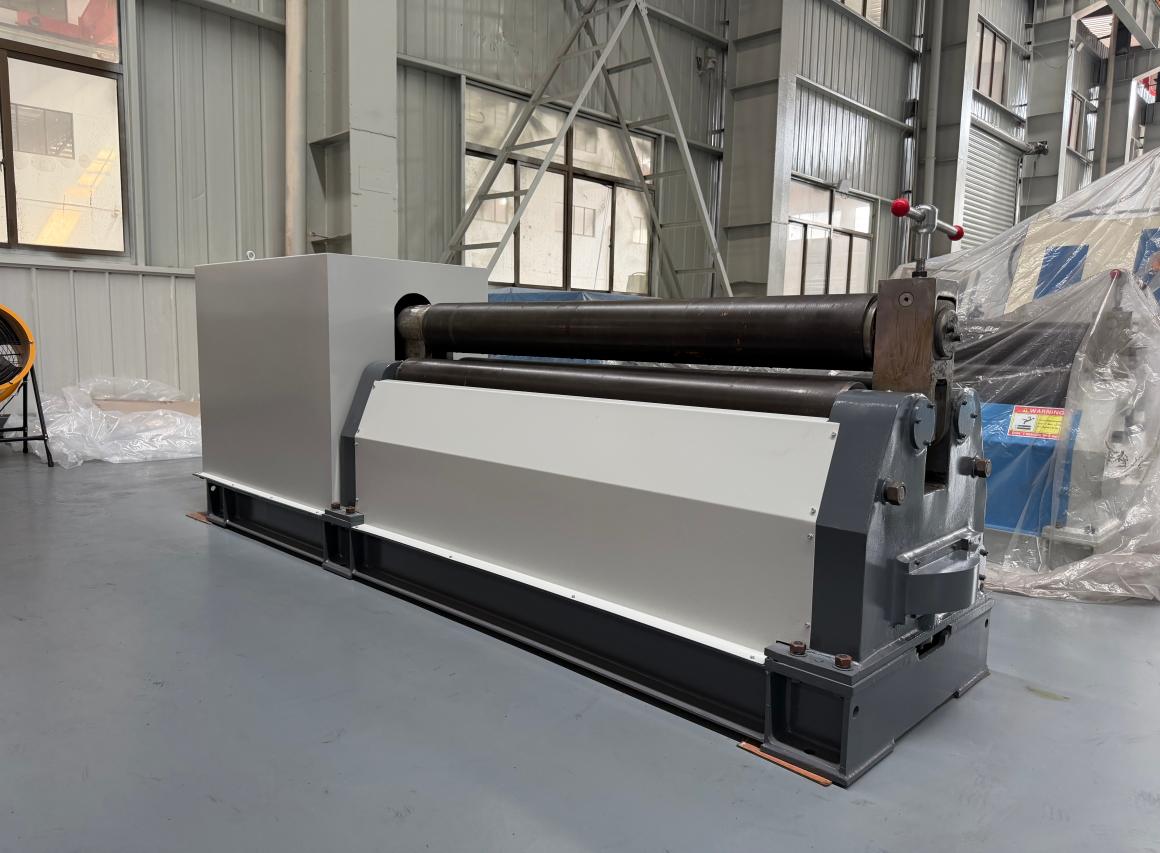

Figure 2. A compact symmetrical 3-roll machine. Verify usable roll length and end-clearance details against the widest part.
4. Define the Target Diameter Before Choosing Roll Size
The minimum rolling diameter depends on roller diameter, plate thickness, material strength and machine structure; it cannot be selected from the upper-roll diameter alone.
State whether the drawing gives inside or outside diameter and whether the seam is open, tack-welded or fully welded before calibration. A smaller top roll may help reach a tighter diameter, but it also has less stiffness. The right design balances roll diameter, center distance, deflection, drive torque and material load.
Use the published minimum rolling diameter guide to screen these relationships before requesting a final engineering calculation.
5. Choose the Machine Geometry
Symmetrical 3-Roll
A symmetrical 3-roll machine has a simple structure, straightforward maintenance and a relatively low purchase cost for conventional cylinders and arcs.
Its main trade-off is end forming and handling. The remaining flat is strongly influenced by lower-roll spacing and the approved pre-bending method. Do not assume every symmetrical model can finish both ends in one setup.

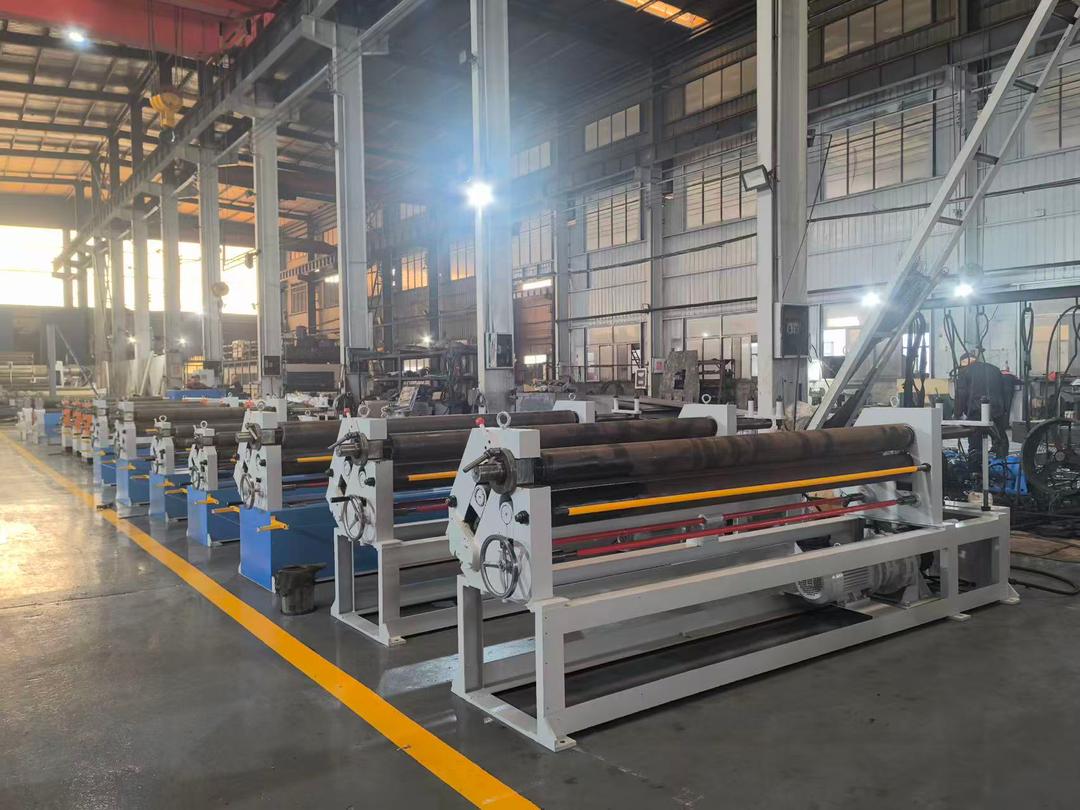

Figure 3. Symmetrical 3-roll layout for economical cylindrical and arc work.
See the current W11 symmetrical 3-roll plate rolling machine as BEIGEMA’s basic reference configuration.
Asymmetrical 3-Roll
An asymmetrical 3-roll uses an offset arrangement that can simplify plate entry and pre-bend one end. The plate is normally turned or repositioned for the other end. It can suit light and medium work, but capacity, cone work and repeatability still depend on the exact design.

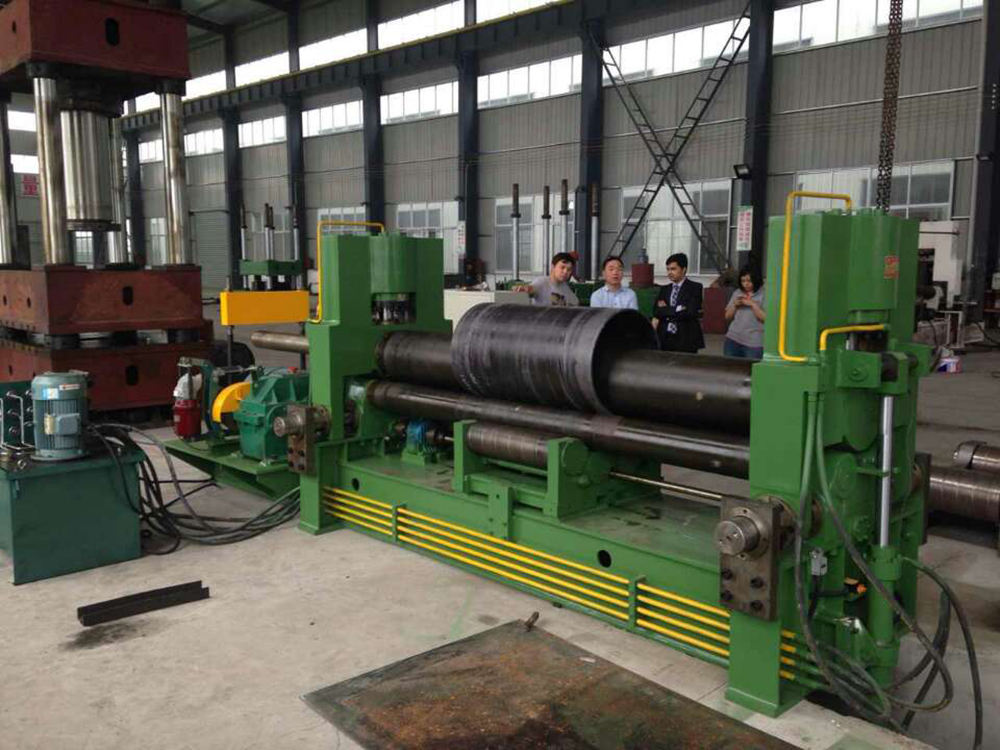

Figure 4. An industrial 3-roll configuration handling a large shell. Machine geometry must be read from the model drawing, not the number of rolls alone.
Universal Upper-Roll 3-Roll
A universal upper-roll machine adds controlled roll movement for stronger pre-bending and flexible radii. It is useful for thick plate, mixed diameters and cone work, but the extra hydraulics, guidance and setup increase price and skill requirements. It may be NC or CNC; the geometry does not define the controller.
Compare the published W11S universal plate rolling machine for this architecture.
4-Roll
A four-roll machine clamps the plate between the top and bottom rolls while the side rolls perform pre-bending and rolling.
Stable clamping makes plate alignment, one-setup pre-bending and automation easier, which suits repeat cylinders. A four-roll machine can still be manual, NC or CNC; controller level, feedback, supports and tooling must be listed separately.

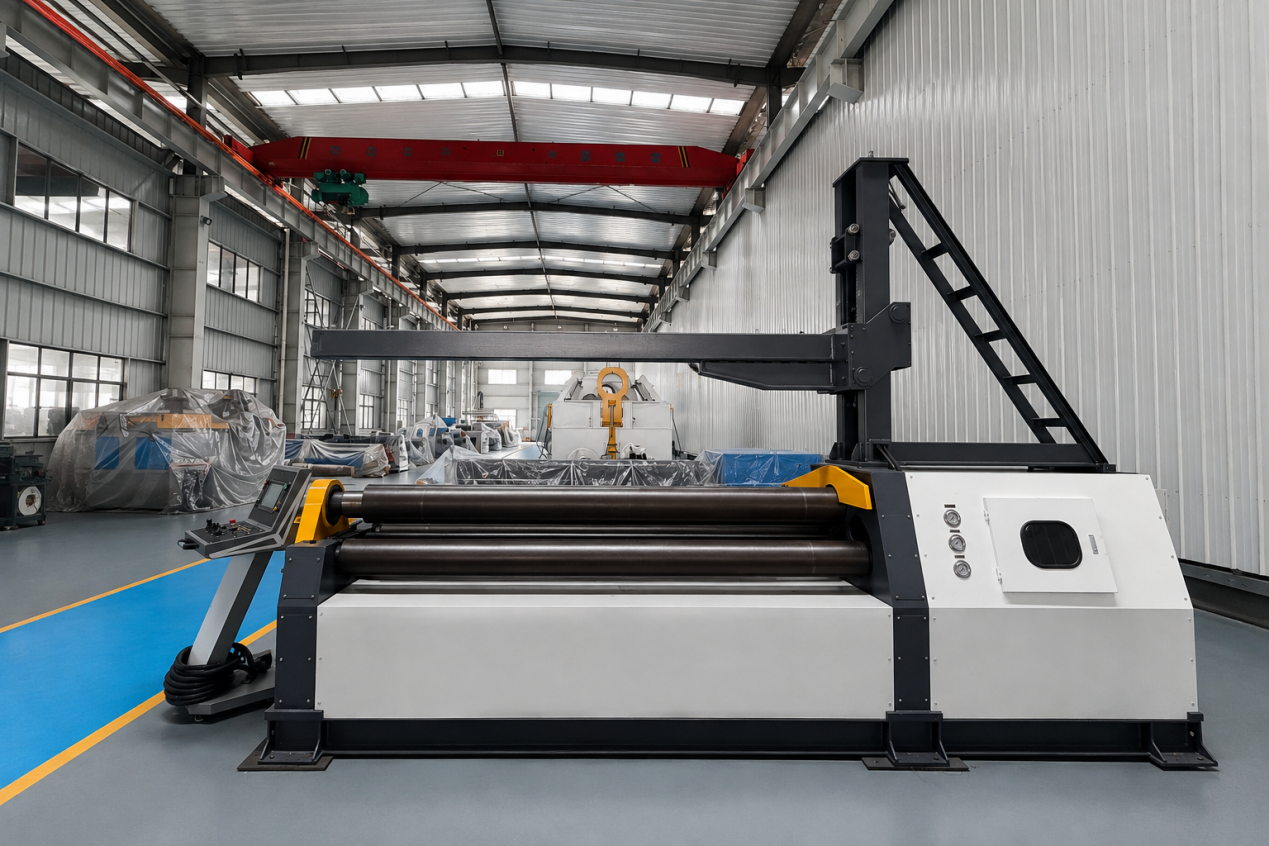

Figure 5. Four-roll plate bending machine with overhead support for controlled handling of large cylinders.
Review the current W12 4-roll plate rolling machine and its separate rolling/pre-bending capacity table.
| Machine type | Best fit | Main check before buying |
|---|---|---|
| Symmetrical 3-roll | Budget-sensitive cylinders, arcs and occasional work. | How both ends are pre-bent; remaining flat; turning and handling. |
| Asymmetrical 3-roll | Light/medium work needing easier entry and one-end pre-bend. | Second-end sequence, actual capacity and cone limitation. |
| Universal 3-roll | Thick plate, mixed radii, cones and demanding pre-bending. | Roll movement, controls, supports, setup time and operator skill. |
| 4-roll | Repeat cylinders, one-setup pre-bending and automation. | Clamping, side-roll feedback, unloading, supports and CNC scope. |
For a process-level comparison, read the 3-roll vs 4-roll plate rolling machine guide.
6. Define Accuracy, Control and Measurement
For projects requiring stable curvature, dimensional accuracy and repeatability, consider NC/CNC control, digital position display and reliable feedback.
Control cannot correct a weak frame, worn rolls, poor alignment or variable material by itself. Ask which axes are measured, the feedback device, positioning resolution, compensation method, program storage and how a completed part is measured. A controller label without the machine’s mechanical and measurement specification is not an accuracy guarantee.
- Define roundness, diameter, taper and straightness tolerances on the part drawing.
- Specify whether the acceptance measurement is made before or after welding and calibration.
- Ask for repeat parts during FAT if repeatability is a purchase reason.
7. Compare Throughput, Handling and Lifetime Support
Production volume should guide the level of automation and the time allowed for loading, pre-bending, rolling, positioning and unloading.
For large or long shells, include infeed tables, side supports, overhead support, drop-end opening and a safe unloading method in the cycle calculation. For mixed job-shop work, changeover and operator setup time may matter more than maximum rolling speed.
- Calculate the cycle from loading through unloading; do not quote rolling speed as total throughput.
- Define who supplies foundations, power connection, lifting, commissioning, training and first-production support.
The final comparison should also cover frame construction, roll material and heat treatment, lubrication, hydraulic and electrical components, drawings, manuals, training, remote support, spare parts, warranty and exclusions. Ask every supplier to quote the same Incoterm and named place so transport and installation are not mistaken for machine-price differences.
The existing plate rolling machine price guide explains which configuration and service items change the quotation.
Browse BEIGEMA’s plate rolling and profile bending machine range only after the application data is complete.
RFQ and Factory Acceptance Checklist
| RFQ/FAT item | Minimum evidence |
|---|---|
| Part package | Representative drawings, material certificates, thickness/width range, diameters, tolerances and batch size. |
| Capacity statement | Rolling and pre-bending thickness, full/reduced width, yield basis, minimum diameter and cone limits. |
| Configuration | Roll geometry, material/treatment, drives, hydraulics, controller, feedback, supports, tooling and guards. |
| Site data | Voltage/frequency/phase, installed power, floor/foundation, layout, package dimensions and weights. |
| Acceptance | Agreed sample plate and part, measurement method, safety/function checks, open-issue process and records. |
| Commercial scope | Price, Incoterm/named place, packing, lead time, installation, training, warranty, spare parts and exclusions. |
Frequently Asked Questions
Should I buy the largest plate roll I can afford?
Not automatically. An oversized machine may increase cost, floor space and minimum practical diameter. Select enough verified capacity and margin for the real production mix.
Can maximum thickness be compared across brochures?
Only when material yield strength, width, diameter, pre-bending condition and machine geometry are the same. Otherwise the headline numbers are not comparable.
Does a smaller top roll always mean a better machine?
No. It can help with tighter diameters, but stiffness and load capacity decrease. The entire roll system and actual workpiece must be calculated together.
Do I need CNC for accurate rolling?
CNC helps position rolls and repeat a validated process. Mechanical rigidity, alignment, material consistency, measurement and operator setup still control the final part.
What should I test during FAT?
Use the contracted configuration and representative material to test safety functions, roll movement, pre-bending, diameter/roundness, repeatability, unloading and all included accessories.
Send the completed RFQ pack to BEIGEMA for a model-specific capacity review and quotation.
