- 3 driven rolls with full hydraulic drive, for strong and stable performance.
- One-time forming: pre-bending, rolling and calibrating in one pass, saving material and labor.
- Guide rolls prevent twisting, ensuring high precision for asymmetric profiles.
- Multi-profile compatibility: bend angles, channels, I-beams, tubes and more with interchangeable dies.
- Optional PLC control for easy operation and mass production.
Browse all rolling and profile bending machines, or the semi-hydraulic WYQ24 profile bending machine.

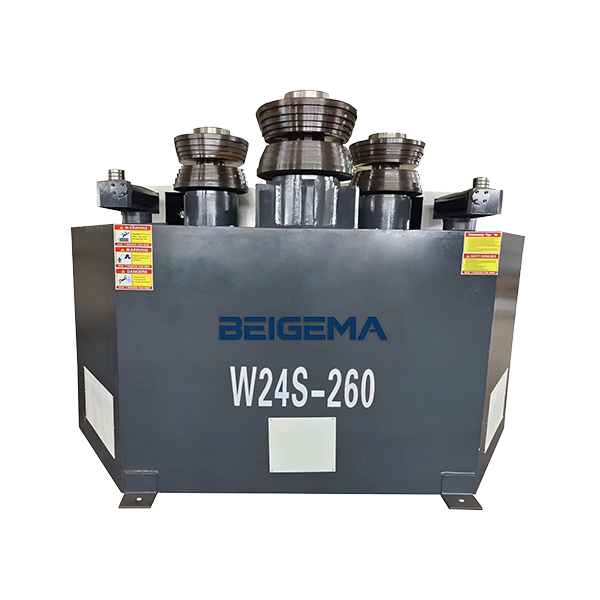

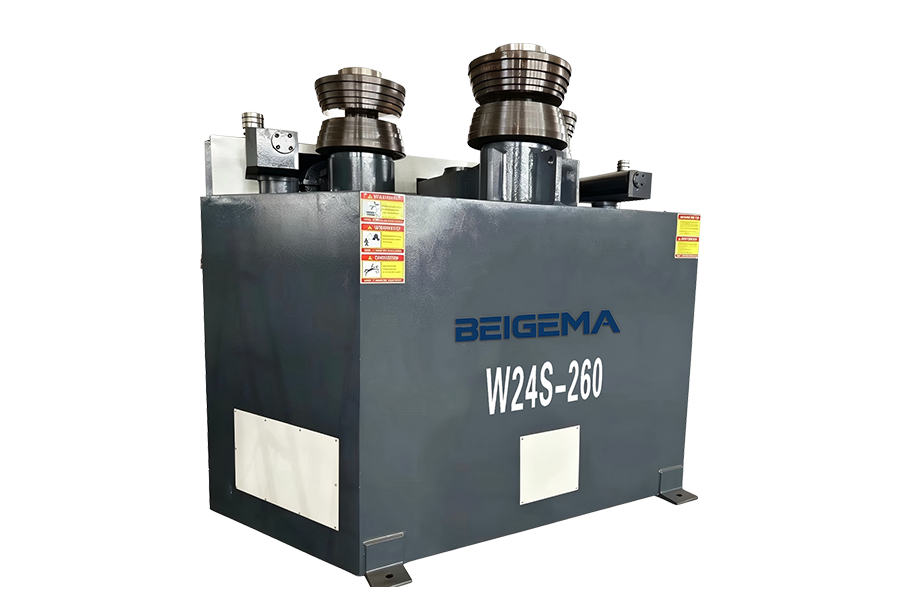

The W24S is a fully hydraulic angle roll machine (also called a section bending machine) for bending angle steel, flat bar, pipe and other profiles into smooth arcs and rings.
Configuration note: Controller, axes, working range, tolerances and included components must be confirmed in the signed technical quotation for the selected machine.
- Model: W24S
- Roller: 3 Roller
- Profile Type: Angle steel, channel steel, I-beams, round pipes, square pipes, flat steel.
- Support Roller For Angle Bar
- Movable Control Panel
- PLC Control
- Hydraulic Station
Standard Configurations
More Details

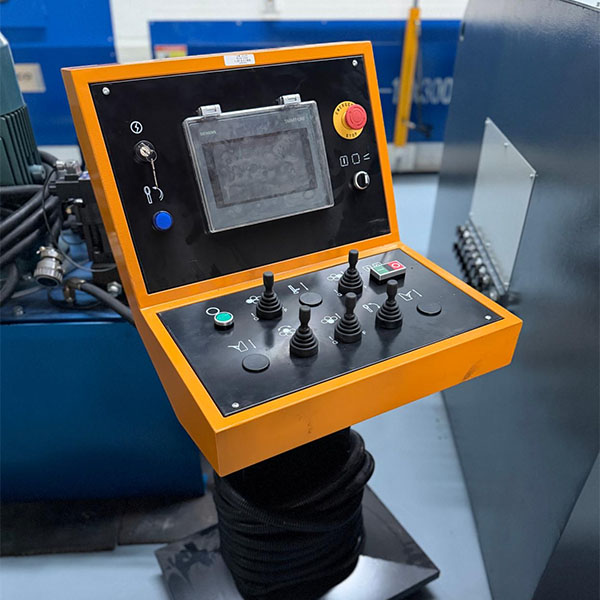

Control Panel

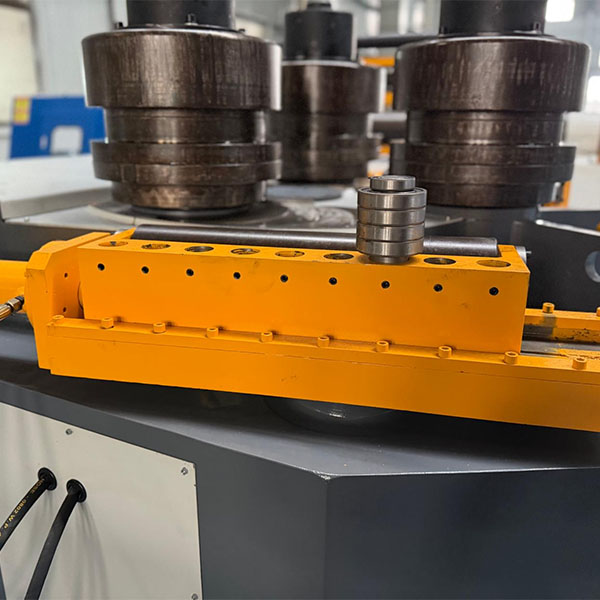

Guide Rolls

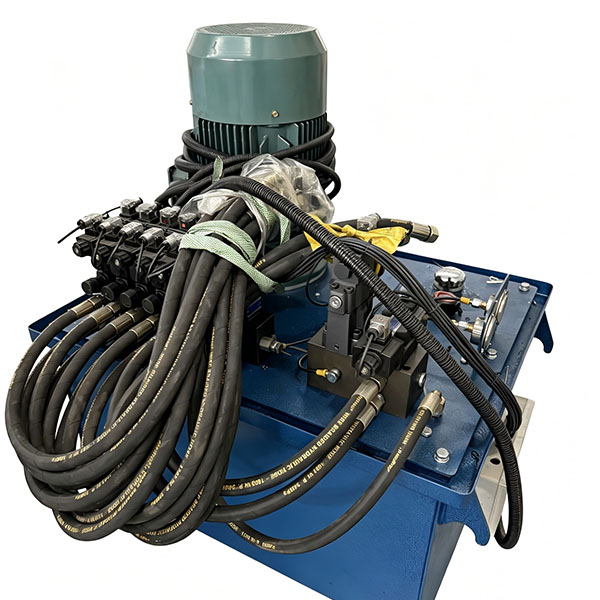

Hydraulic Station

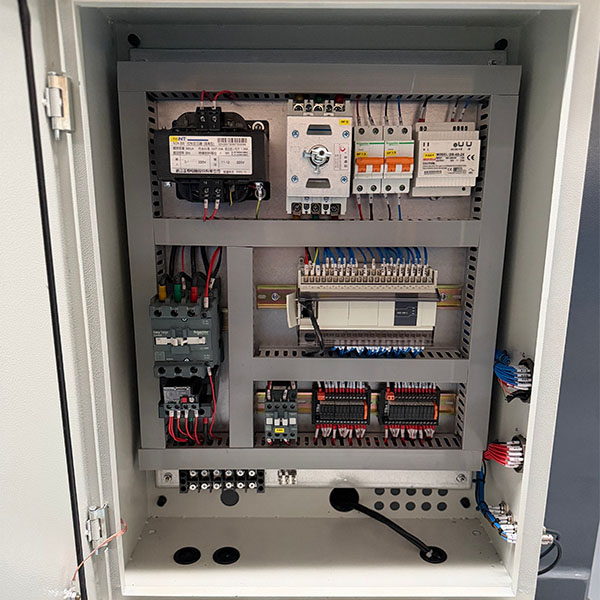

Schneider Electrical Components
W24S Profile Bending Machine Parameter
| Model |  |  |  |  |  |  |  |  |  |
|---|---|---|---|---|---|---|---|---|---|
| W24S-6 | 40×5 | 50×5 | 8 | 8 | 100×18 | 50×12 | 42×4 | 38 | 45×3 |
| W24S-16 | 70×8 | 80×8 | 12 | 12 | 150×25 | 75×16 | 76×4.5 | 52 | 60×4 |
| W24S-30 | 80×8 | 90×10 | 16 | 16 | 180×25 | 90×20 | 89×5 | 62 | 70×4 |
| W24S-45 | 90×10 | 100×10 | 20 | 20 | 200×30 | 100×25 | 89×8 | 75 | 80×6 |
| W24S-75 | 100×10 | 120×12 | 25 | 25 | 220×40 | 110×40 | 114×5 | 85 | 90×8 |
| W24S-100 | 120×12 | 140×16 | 28 | 28 | 250×40 | 120×40 | 159×5 | 90 | 100×10 |
| W24S-140 | 140×16 | 150×16 | 30 | 30 | 280×50 | 150×40 | 168×6 | 100 | 125×10 |
| W24S-180 | 150×16 | 160×16 | 32 | 32 | 300×50 | 180×30 | 168×8 | 110 | 140×10 |
| W24S-260 | 160×16 | 180×14 | 36 | 36 | 330×50 | 190×40 | 219×8 | 120 | 150×10 |
| W24S-320 | 180×14 | 200×18 | 40 | 40 | 360×60 | 190×50 | 245×8 | 135 | 165×10 |
| W24S-400 | 200×18 | 200×24 | 45 | 45 | 400×75 | 200×50 | 273×8 | 150 | 180×12 |
| W24S-500 | 200×20 | 250×25 | 50 | 50 | 500×76 | 200×60 | 323×10 | 160 | 200×12 |
